Overview

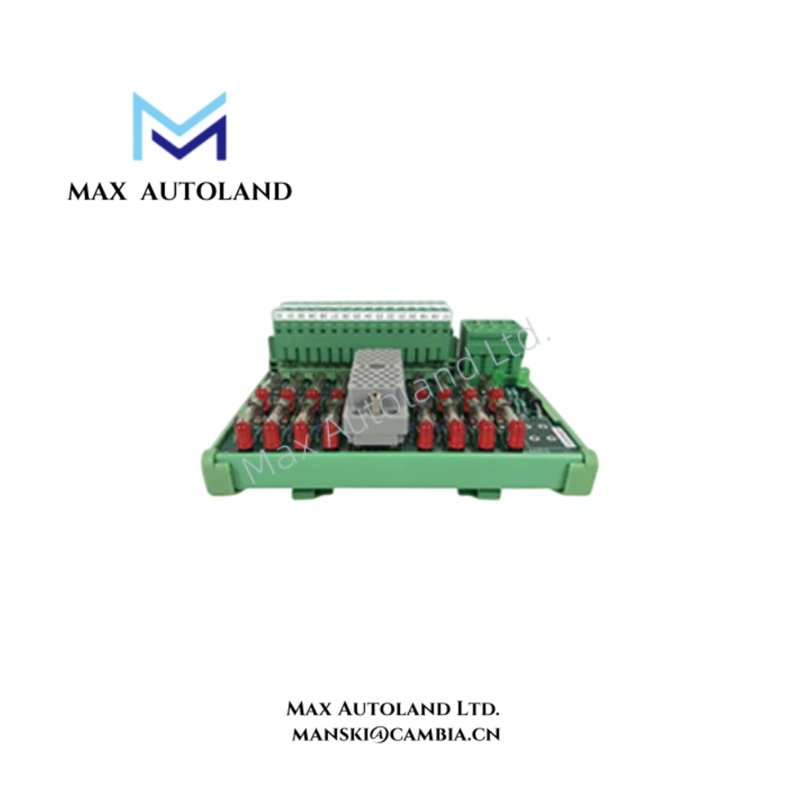

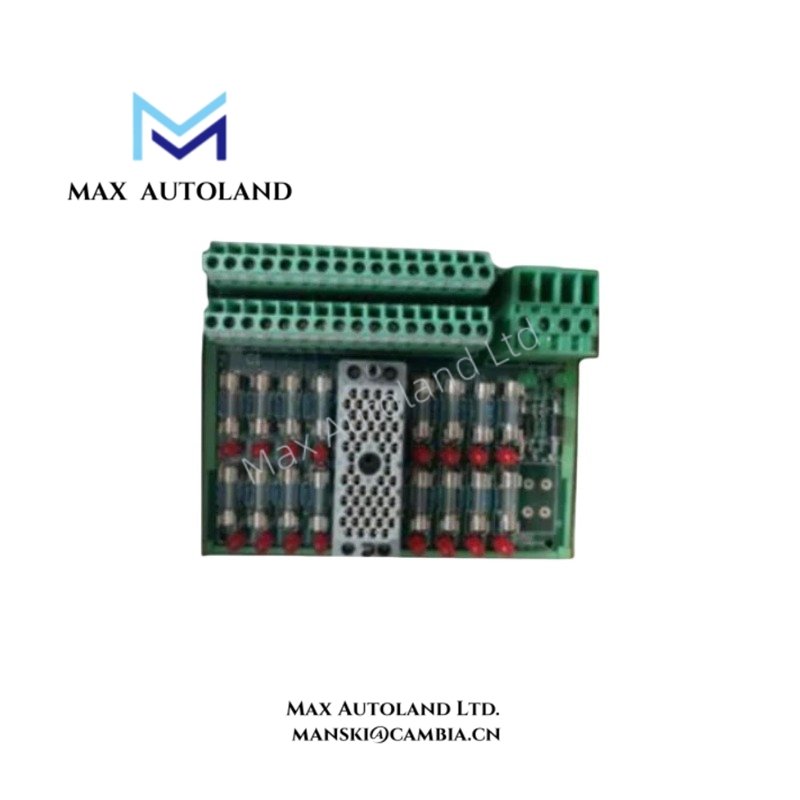

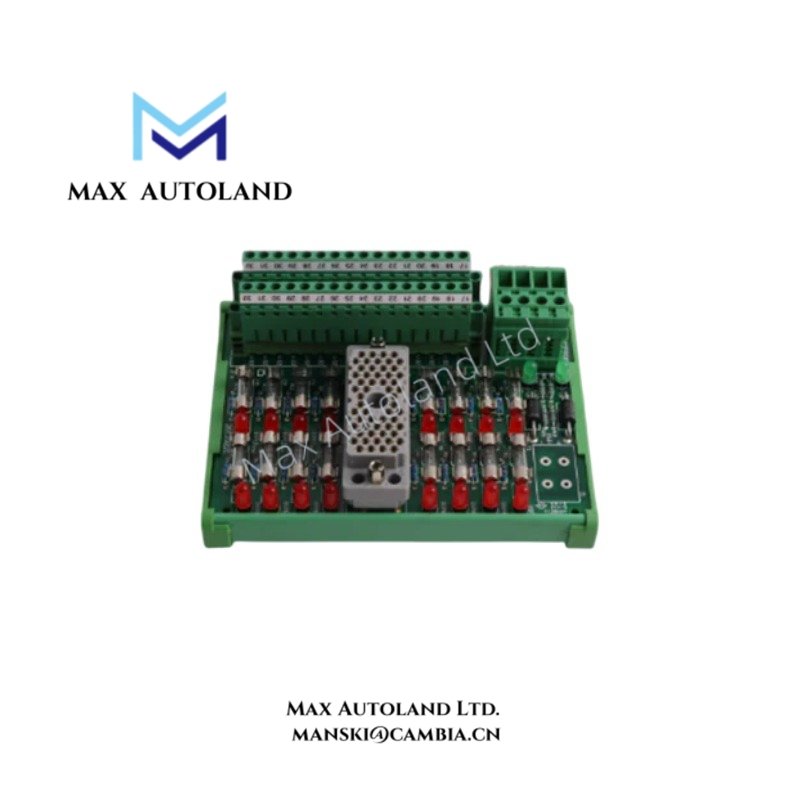

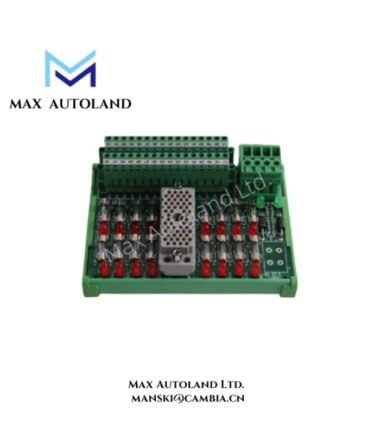

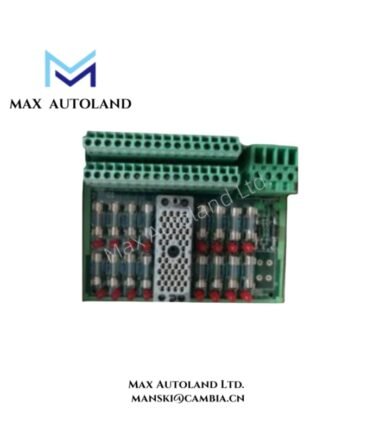

Configured for digital input field signal termination in Triconex SIS platforms, the Invensys 9563-810 (9563-810 Digital Input Termination Panel) provides direct physical/electrical execution. The panel manages commoned digital input connections with 16 field points and supports 24 VDC signal interfacing.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 9563-810 |
| Brand | Invensys |
| Product Type | Digital Input Termination Panel |
| Panel Type | Commoned |
| Origin | USA |
| Weight | 2.8 kg |
| Dimensions | 49 cm x 45.3 cm x 6.8 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity Range | 5% to 95%, non-condensing |
| Number of Points | 16 |
| Input Signal Interface | Digital Input Termination |
| Output Voltage | 24 VDC |
| Nominal Voltage | 24 VDC +/- 20% |
| Output Channels | Typically 8 digital output channels |
| Power Consumption | Typically 2 W |
| Leakage Current Per Point | Maximum 3.3 mA |
| Typical Leakage Current | 2.5 mA |
| Channel-to-Channel Isolation | >=250 VAC |
| Field-to-System Isolation | >=1500 VAC |
Digital Input Termination and Electrical Isolation
The Invensys 9563-810 provides termination processing for commoned digital input field wiring. Moreover, the panel maintains electrical separation between field circuits and system-side interfaces through isolation design. The hardware supports 24 VDC signal connections and manages point-level leakage current characteristics during digital signal operation.
In addition, the termination panel structure supports organized field wiring connections for control system integration. The 16-point configuration allows connection management between external devices and the associated Triconex input modules while maintaining defined electrical boundaries.
Frequently Asked Questions
Q: What type of field signals does the 9563-810 terminate?
A: The 9563-810 terminates digital input field signals using a commoned panel configuration with 16 connection points.
Q: What isolation characteristics does the panel provide?
A: The panel provides channel-to-channel isolation rated at >=250 VAC and field-to-system isolation rated at >=1500 VAC.
Q: What environmental conditions support installation of the 9563-810?
A: The panel supports an operating temperature range from -40 deg C to +70 deg C and a storage temperature range from -40 deg C to +85 deg C.
Field Installation Guidelines
Install the 9563-810 panel according to the applicable system wiring documentation and terminal assignment drawings. Verify field wiring polarity before applying 24 VDC power.
Maintain separation between signal wiring and high-energy conductors to reduce electrical interference. Use appropriate shielding and grounding practices for the installed environment.
Secure the panel mechanically before connecting field cables. Confirm terminal tightness, cable routing, and insulation conditions during commissioning procedures.
