Overview

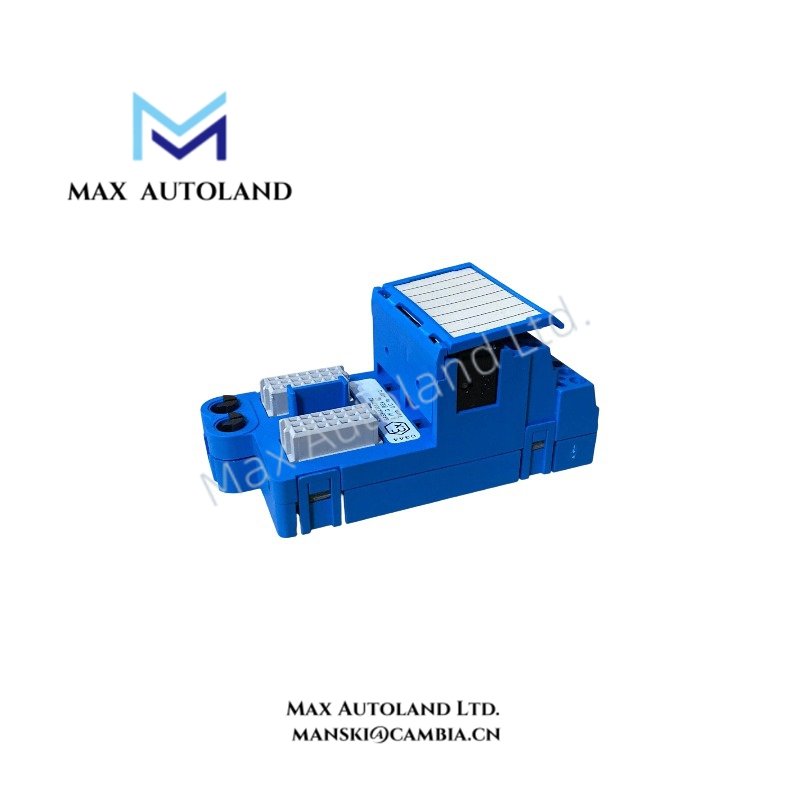

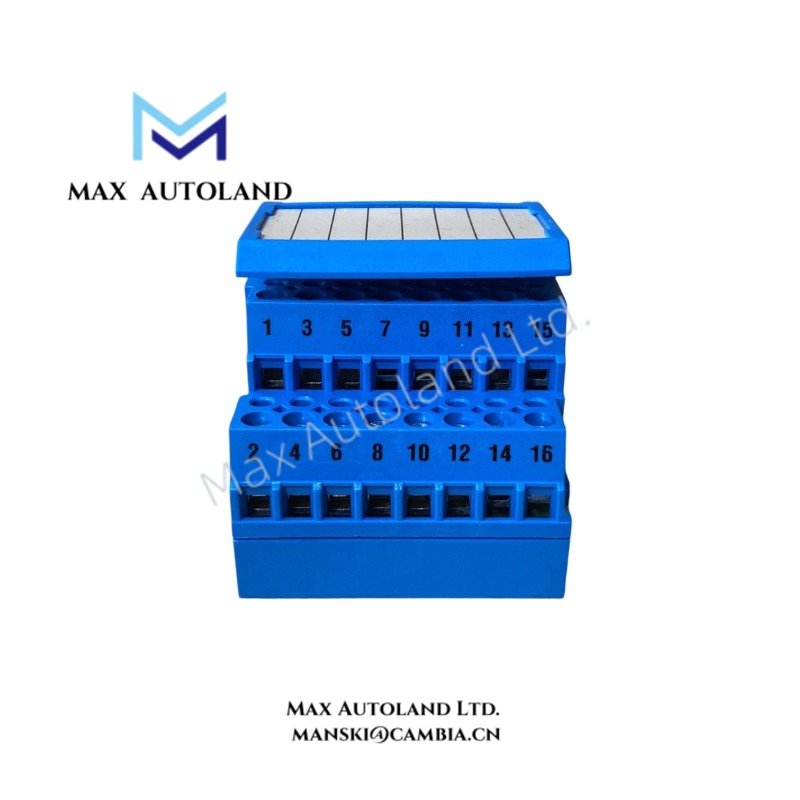

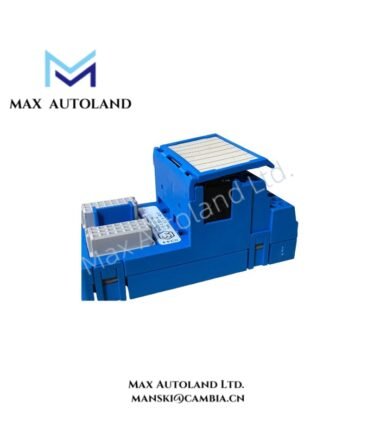

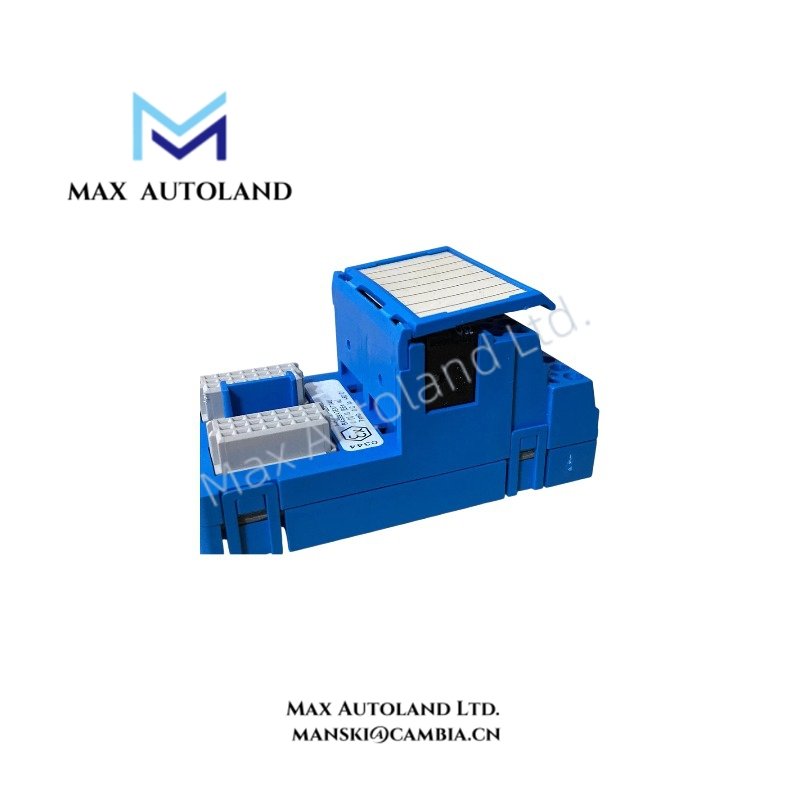

The Emerson KJ4110X1-BB1, also cataloged as the KJ4110X1-BB1 8 Channel Loop Disconnect Module, operates as a dedicated hardware component for individual current loop isolation and field circuit disconnection within Emerson DeltaV M-series I/O systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4110X1-BB1 |
| Brand | Emerson DeltaV |
| Product Type | 8 Channel Loop Disconnect Terminal Block |
| Part Number | 12P1868X012 / 12P1868 |
| Origin | United States |
| Weight | 0.1 kg |
| Dimensions | 3.8 cm x 3.8 cm x 8.9 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Passive terminal block, no external power required |
| Channel Quantity | 8 independent loop disconnect channels |
| Application | Field signal loop isolation and maintenance disconnect |
| System Compatibility | Emerson DeltaV M-series I/O subsystem |
| Mounting Type | DeltaV carrier-mounted terminal assembly |
| Tariff Code | 8538907080 |
4-20 mA Loop Isolation and Channel Disconnect Function
The KJ4110X1-BB1 provides physical separation between field wiring and DeltaV I/O channels through individual loop disconnect points. Therefore, technicians can isolate selected current loops during calibration, commissioning, and troubleshooting without removing the complete terminal assembly.
The module supports process instrumentation wiring practices associated with Emerson DeltaV systems. In addition, its channel-to-channel isolation function helps maintain clear separation between individual field circuits during maintenance operations.
Frequently Asked Questions
Q: Does the KJ4110X1-BB1 require an external power supply?
A: No. The KJ4110X1-BB1 is a passive terminal block assembly and does not require an external power connection for loop disconnect operation.
Q: How many field loops can the KJ4110X1-BB1 disconnect?
A: The module provides 8 independent loop disconnect channels for separate field signal circuits.
Q: Can the module be installed directly on DeltaV I/O carriers?
A: Yes. The KJ4110X1-BB1 is designed for installation on compatible Emerson DeltaV M-series carrier assemblies using the standard terminal block mounting arrangement.
Field Installation Guidelines
- Install the KJ4110X1-BB1 on the specified DeltaV carrier position according to Emerson system installation documentation.
- Verify field wiring identification before connecting individual loop conductors to each channel terminal.
- Maintain proper cable routing separation between signal wiring and high-voltage power conductors to reduce electrical interference.
- Connect cable shields according to the plant grounding standard and avoid multiple shield grounding points unless required by the control system design.
- Inspect terminal connections after installation to confirm proper mechanical retention and conductor placement.
- Confirm loop continuity and field device signal behavior before returning the connected I/O channel to normal operation.
