Overview

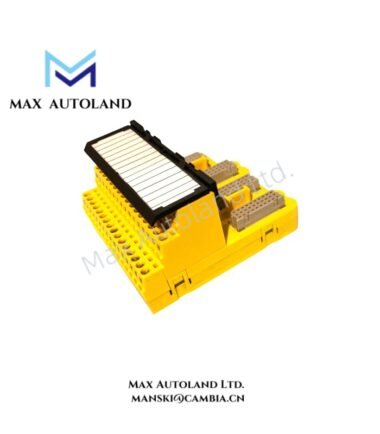

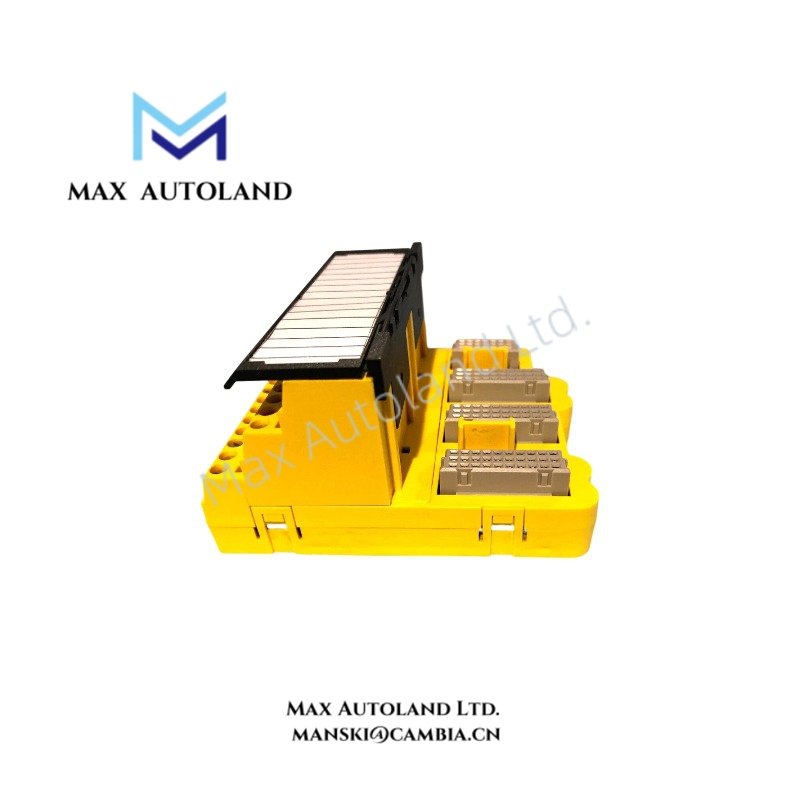

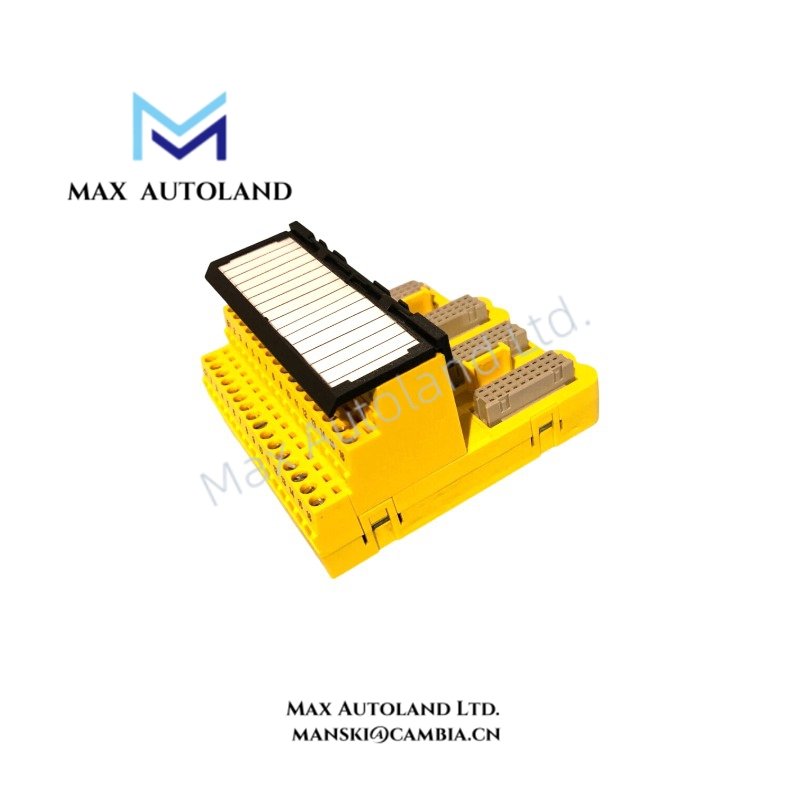

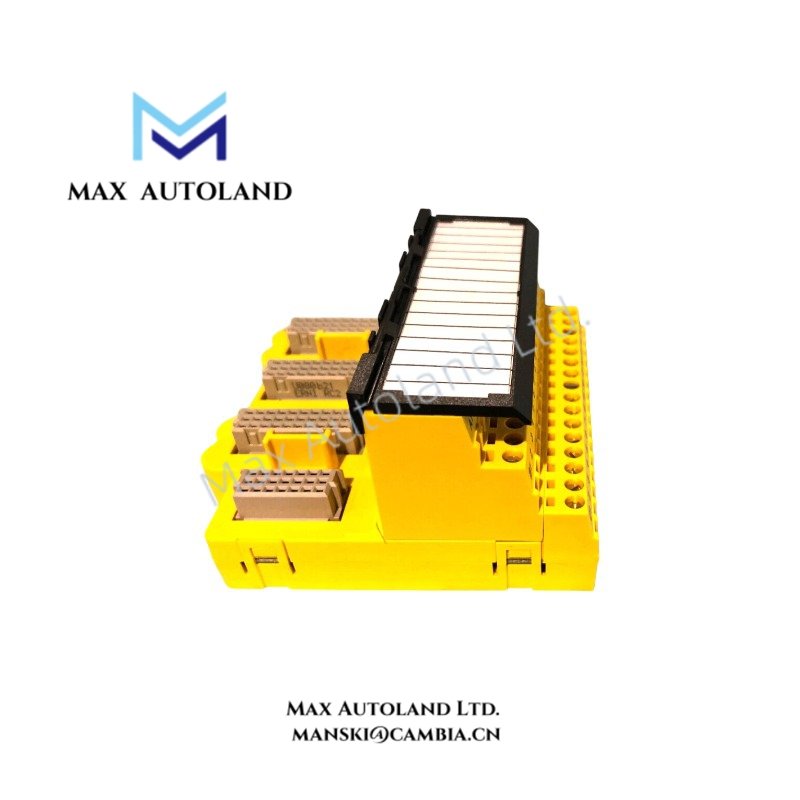

Configured for logic signal routing in the DeltaV Electronic Marshalling CHARM I/O Subsystem, the Emerson KJ2201X1-HA1 (KJ2201X1-HA1 SLS Terminal Block) provides direct physical and electrical connection management for field circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2201X1-HA1 |
| Brand | Emerson |
| Origin | Not specified |
| Product Type | SLS Terminal Blocks |
| Spare Model | 12P3322X022 |
| System Platform | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Function | Logic Solver terminal block for field circuit termination |
| Weight | 0.18 kg |
| Dimensions | 8.4 x 9 x 5.5 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 30 VDC input rating; maximum current depends on terminal circuit type |
| Maximum Current | 30 mA per channel for circuits between terminals A and B; 1 A per channel for circuits between terminals A and C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Hazardous Atmosphere | Installation requires compliance with specified hazardous area instructions |
Emerson DeltaV Channel Termination and Isolation Characteristics
The KJ2201X1-HA1 SLS Terminal Block connects field circuits with the DeltaV Electronic Marshalling CHARM I/O architecture. It manages physical termination between external wiring and the logic solver interface. Additionally, the terminal design supports separate current limits for different terminal paths, including low-current circuits between terminals A and B and higher-current circuits between terminals A and C.
The module operates within Emerson DeltaV hardware guidelines and requires dedicated hazardous area installation procedures. Furthermore, the unit supports environmental operation from -40 deg C to +70 deg C and maintains electrical performance under industrial vibration, shock, humidity, and airborne contaminant conditions.
Frequently Asked Questions
Q: Can the KJ2201X1-HA1 be removed or inserted while system power is active?
A: No. This unit cannot be removed or inserted with system power energized. The system must be de-energized before replacement or installation.
Q: Does the KJ2201X1-HA1 require field calibration?
A: No. The terminal block does not require calibration because it provides passive field circuit termination functions.
Q: Can users repair internal components of the KJ2201X1-HA1?
A: No. The unit contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
- Install the KJ2201X1-HA1 according to the DeltaV Electronic Marshalling Digital Automation System CHARM I/O Subsystem Zone 2 Installation Instructions.
- Verify the product label before installation to confirm serial number, manufacturing location, and manufacturing date.
- Disconnect system power before inserting or removing the terminal block.
- Route field wiring according to industrial control cabinet practices to reduce electrical interference.
- Maintain proper separation between signal wiring and high-voltage conductors.
- Confirm grounding and shielding practices follow the site electrical installation standard.
- Do not open or modify the terminal block assembly during field maintenance.
