Overview

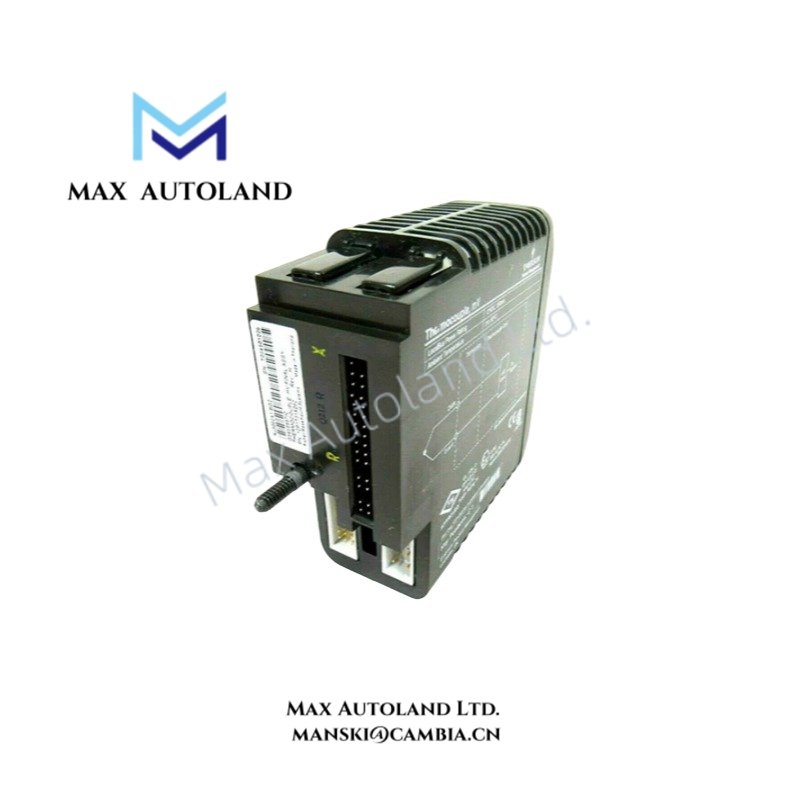

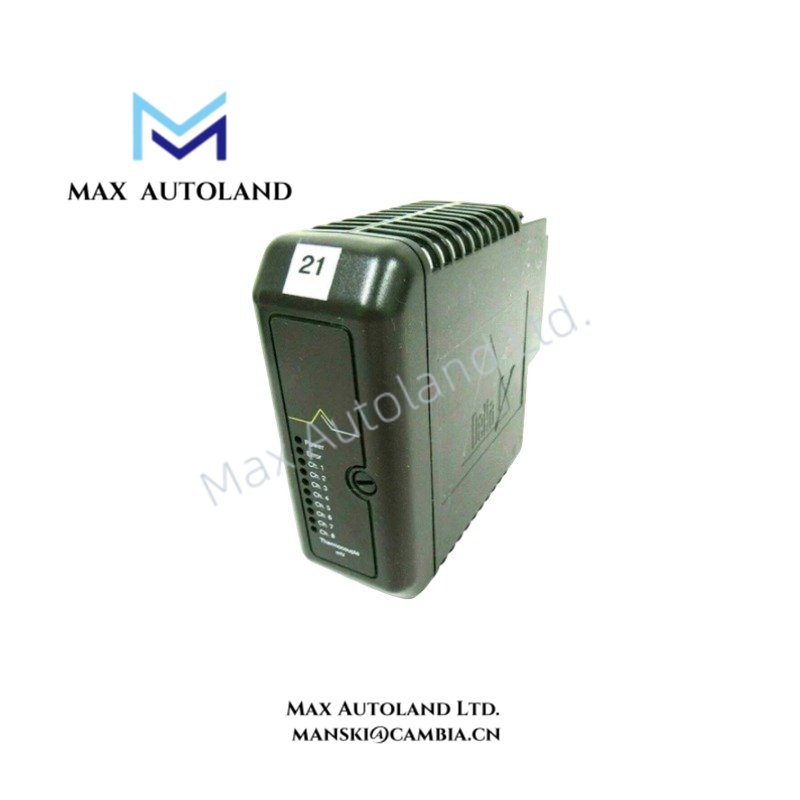

The Emerson KC3010X1-BA1, also cataloged as the KC3010X1-BA1 AI Plus 16-Ch 4-20 mA HART Module, provides analog signal acquisition for DeltaV S-series and CHARMs hardware systems through 4-20 mA HART field loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KC3010X1-BA1 |
| Brand | Emerson DeltaV |
| Product Type | Analog Input Modules |
| Origin | United States |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 500 mA |
| Field Circuit | 24 VDC at 30 mA/Ch. |
| Input Signal | 16-channel 4-20 mA HART analog input |
| Hazardous Area Certification | II 3 G Ex nA [ic] IIC Gc |
| Certification | FM15ATEX0004U, IECEx FMG 15.0001U |
| Terminal Block Key Position | A6 |
| Humidity Range | 5 to 95% non-condensing |
| Shock Rating | 10 g half-sine wave for 11 ms |
| Vibration Rating | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
4-20 mA HART Loop Processing and Channel Isolation
The KC3010X1-BA1 processes 16 analog input channels using 4-20 mA HART loop communication within the DeltaV control architecture. The module receives field current signals and transfers process data through the local bus interface. Additionally, the design supports channel-based signal handling for distributed process measurement applications.
The module operates with Emerson DeltaV I/O infrastructure and maintains electrical separation between field wiring and system communication paths. Therefore, installation personnel must complete loop assessment requirements for all energy-limited nodes before operation.
The HART interface supports device communication over standard analog current loops. Furthermore, proper shield termination and field wiring practices help maintain signal integrity in industrial environments.
Frequently Asked Questions
Q: Can the KC3010X1-BA1 be removed or inserted while system power remains energized?
A: No. Field power supplied through the field terminal or bussed field power through the Carrier must be removed before removing or connecting the module.
Q: Does the KC3010X1-BA1 require user calibration or internal adjustment?
A: No. The module contains no user-serviceable parts and does not require calibration.
Q: How does the terminal block ensure compatibility with the I/O card?
A: The rotary keying system aligns the terminal block configuration with the installed I/O card type after installation.
Field Installation Guidelines
Install the KC3010X1-BA1 according to Emerson DeltaV S-series and CHARMs hardware installation procedures.
- Verify the terminal block key position before module installation.
- Remove field power before connecting or disconnecting the device.
- Confirm that field wiring follows approved hazardous area installation practices.
- Complete the I/O loop assessment for energy-limited nodes before commissioning.
- Maintain proper cable routing to reduce electromagnetic interference on 4-20 mA HART signal loops.
- Connect cable shields according to site grounding standards to minimize electrical noise.
- Do not disassemble the module because it contains no user-serviceable components.
