Overview

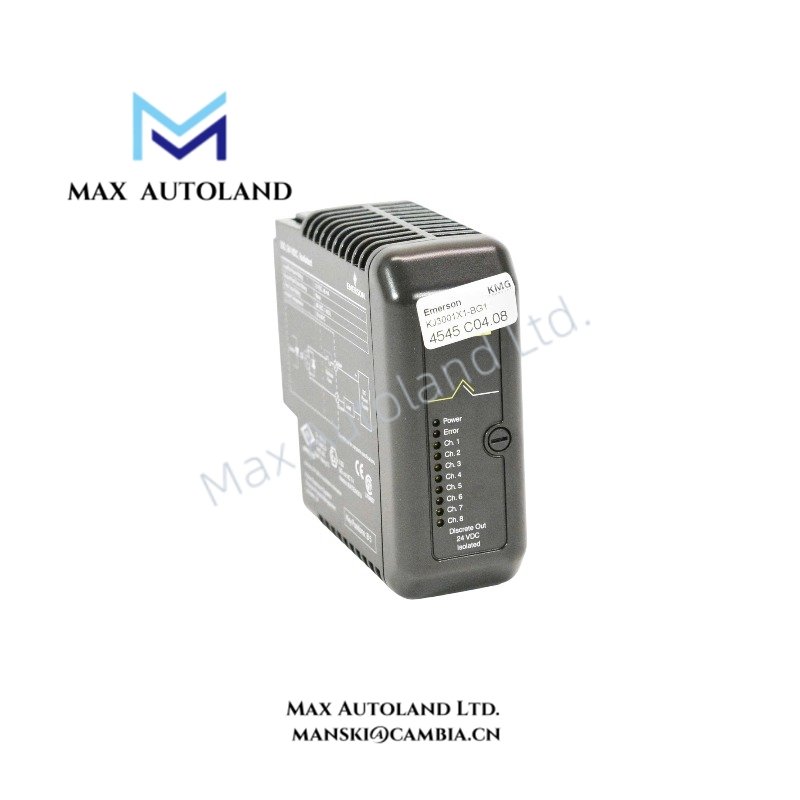

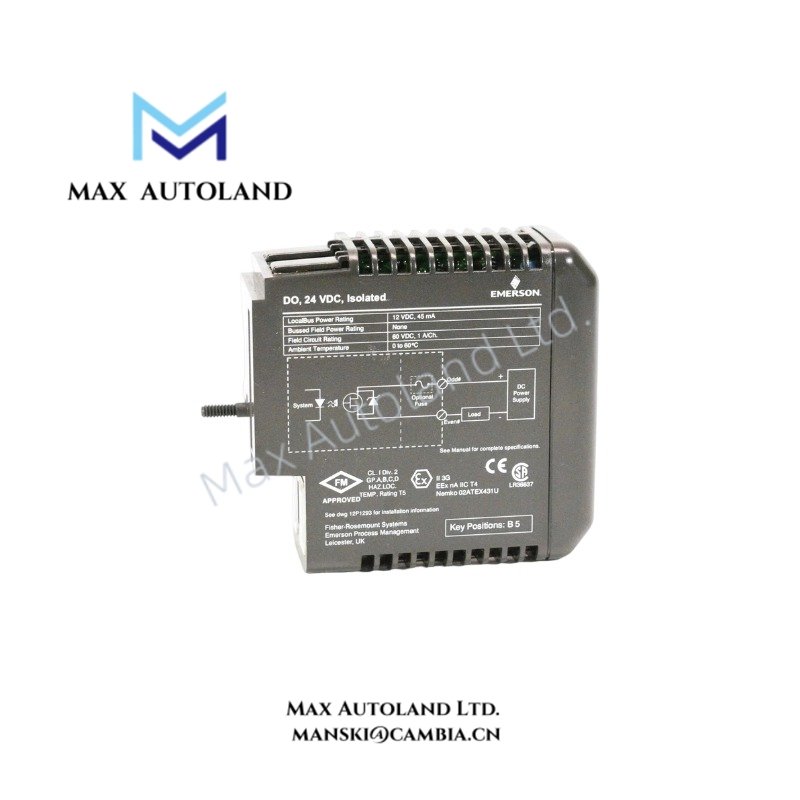

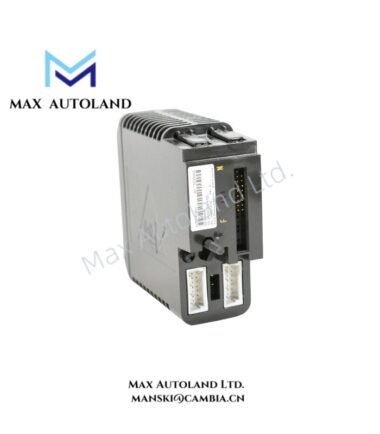

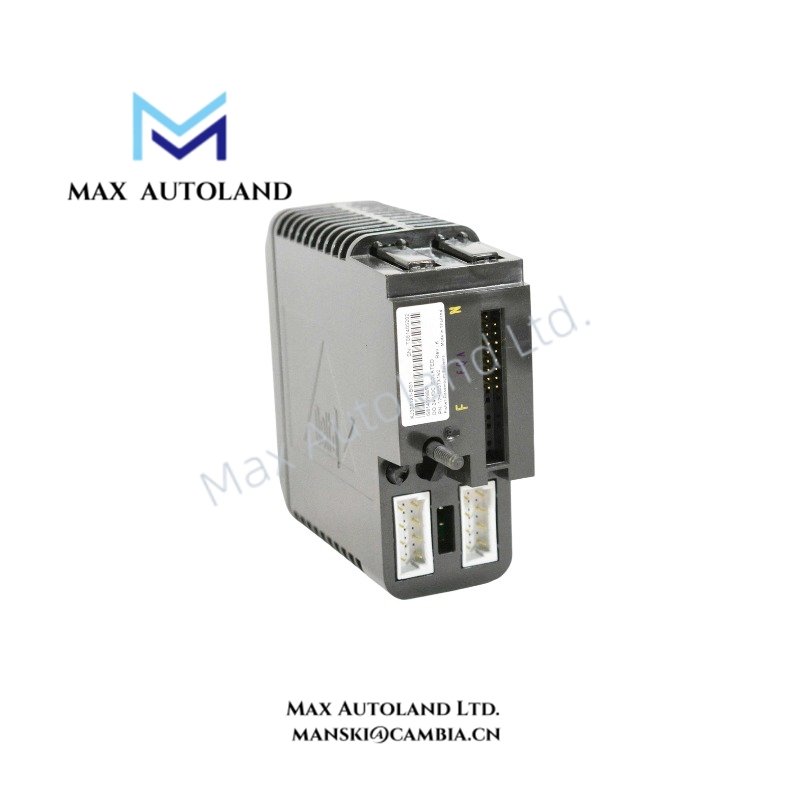

Configured for isolated 24 VDC discrete signal execution in the Emerson DeltaV I/O system, the Emerson KJ3001X1-BG1 (KJ3001X1-BG1 Discrete Output Module) provides direct electrical control of field output circuits. This module is also identified by spare model 12P0557X162 and provides 8 isolated discrete output points.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3001X1-BG1 |
| Brand | Emerson |
| Origin | USA |
| Product Type | Discrete Output Module |
| Spare Model | 12P0557X162 |
| Signal Type | DO 24 VDC Isolated |
| Output Channels | 8 Point Discrete Output |
| Weight | 0.2 kg |
| Dimensions | 4.2 x 12.5 x 10.5 cm |
| Module Status | Discontinued by manufacturer |
DeltaV DCS Isolated Discrete Output Characteristics
The Emerson KJ3001X1-BG1 operates as a DeltaV discrete output interface module that converts controller commands into isolated 24 VDC field switching signals. Therefore, the module separates output channels electrically to reduce interaction between connected field devices.
The isolated output design supports discrete actuator and control device connections where individual channel separation is required. In addition, the module architecture follows Emerson DeltaV I/O signal handling methods for direct integration with the control system backplane.
The module provides 8 discrete output points and maintains electrical separation between output channels. As a result, field wiring faults on one output channel have reduced influence on adjacent output circuits.
Frequently Asked Questions
Q: What output signal type does the Emerson KJ3001X1-BG1 provide?
A: The KJ3001X1-BG1 provides isolated 24 VDC discrete output signals through 8 output points.
Q: Can the KJ3001X1-BG1 be used as an analog output module?
A: No. The KJ3001X1-BG1 is a discrete output module and does not provide analog current or voltage output functions.
Q: What installation consideration applies to the isolated output channels?
A: Field wiring should maintain proper separation, shielding practices, and terminal identification to prevent wiring errors and electrical interference.
Field Installation Guidelines
Install the Emerson KJ3001X1-BG1 module according to DeltaV system hardware installation procedures.
- Verify module identification before installation and confirm compatibility with the assigned I/O slot.
- Connect field output wiring according to the approved terminal assignment documentation.
- Maintain separation between signal wiring and high-voltage power conductors to reduce electrical noise coupling.
- Apply correct grounding and shielding practices for connected field devices.
- Inspect terminal connections for proper mechanical tightness before system power application.
- Confirm discrete output operation through the DeltaV engineering workstation after installation.
