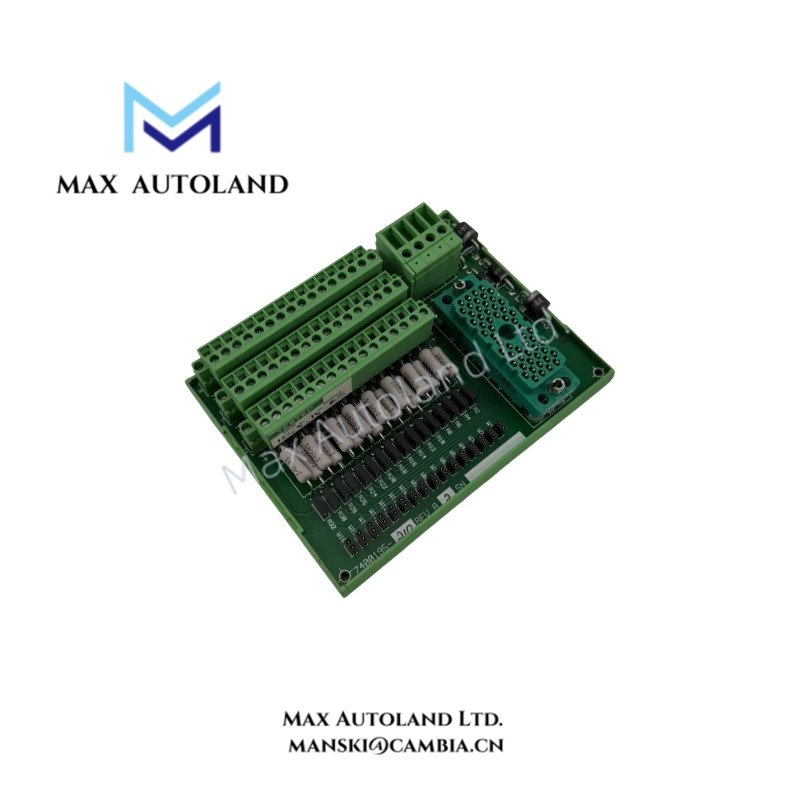

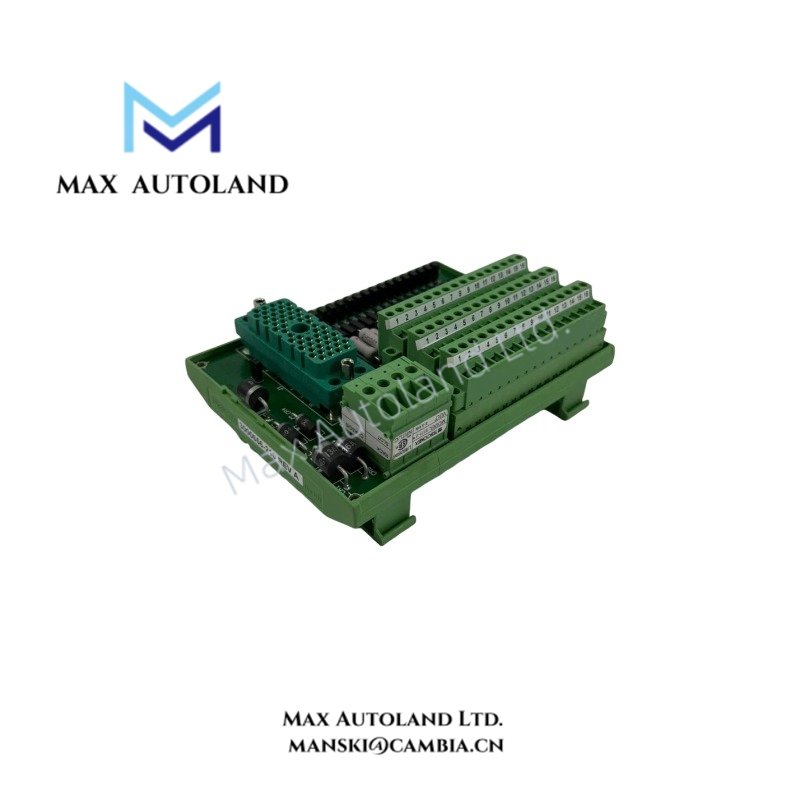

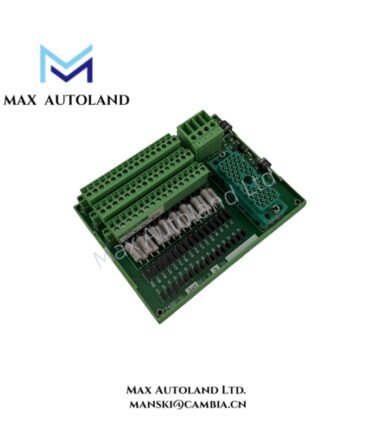

Invensys Triconex 7400195-210 Communication Module Baseplate

Overview

Configured for communication module mounting and field-network termination in the Tricon Safety Instrumented System, the Invensys Triconex 7400195-210 (2201 Communication Module Baseplate) provides the physical interface for a Trident 3201 CM module, redundant field power connections, and communication wiring.

Suffix Breakdown & Model Matrix

The supplied data identifies 7400195-210 as the assembly number and 2201 as the baseplate model. It also identifies the Trident 3201 CM as the compatible communication module. No additional suffix coding is provided, so no further suffix interpretation is assigned.

Hardware Specifications

Triconex Safety Communication Interface

The 7400195-210 provides the physical mounting and wiring interface for the specified Trident 3201 CM communication module. The baseplate provides two communication positions and supports Ethernet and serial network services according to the supplied data.

The baseplate also provides two redundant field power connections. A dedicated safety-ground terminal establishes the specified protective connection, while numbered terminals identify individual wiring points.

Furthermore, the mechanically keyed I/O location controls module positioning at the hardware interface. This arrangement helps maintain the intended module-to-baseplate relationship during installation.

The supplied data also specifies an online hot-spare position. However, the baseplate itself does not define the switching behavior or response time of the installed communication module. Those characteristics require the applicable module and system documentation.

Frequently Asked Questions

Q: Which communication module is compatible with the 7400195-210?
A: The supplied data identifies the Trident 3201 CM module as the compatible communication module.

Q: How many communication positions does the baseplate provide?
A: The supplied specification identifies two communication positions.

Q: Does the baseplate provide redundant field power connections?
A: Yes. The supplied data specifies two redundant field power inputs and a dedicated safety-ground terminal.

Field Installation Guidelines

Install the 7400195-210 at the designated panel-mounted Trident baseplate location. First, verify the assembly number, baseplate model, and compatible module against the installed system documentation.

Next, inspect the mechanically keyed module location before inserting the communication module. Confirm that the module matches the specified Trident 3201 CM configuration.

Connect the communication wiring to the numbered terminals according to the approved wiring schedule. Route Ethernet and serial network cables separately from high-voltage and high-noise conductors where the installation permits.

Connect both specified field power inputs according to the system wiring documentation. Verify the dedicated safety-ground connection before energizing the assembly.

Before commissioning, inspect all terminal connections and verify jumper positions and terminal torque. Then test every connected field communication channel and confirm the expected network operation.

For online hot-spare operation, follow the applicable Tricon system procedure. Do not assume that a physically compatible module can operate in every baseplate position without confirming the hardware and system configuration.
