Overview

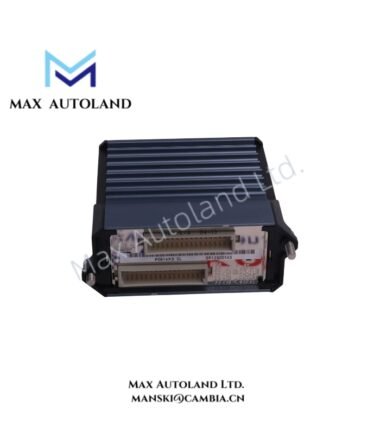

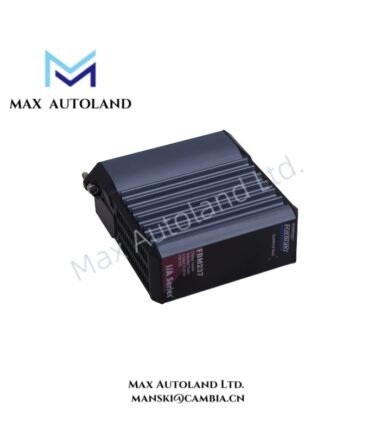

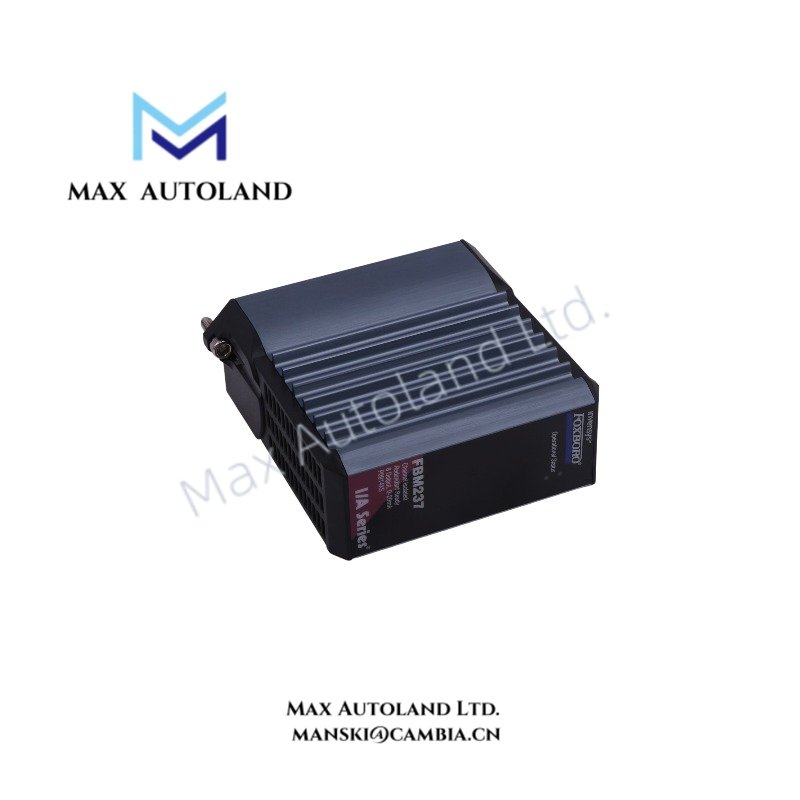

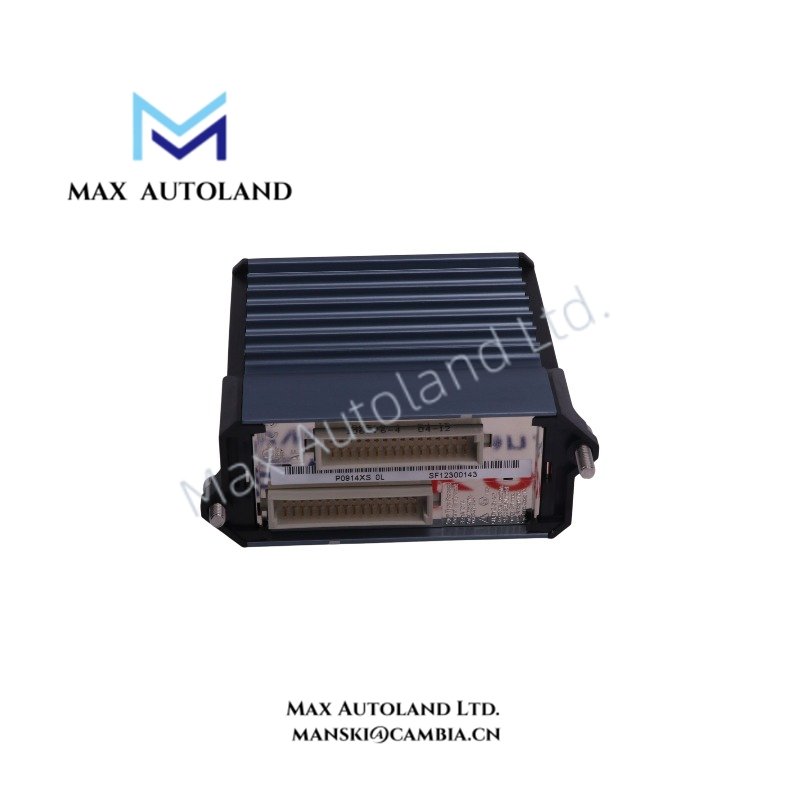

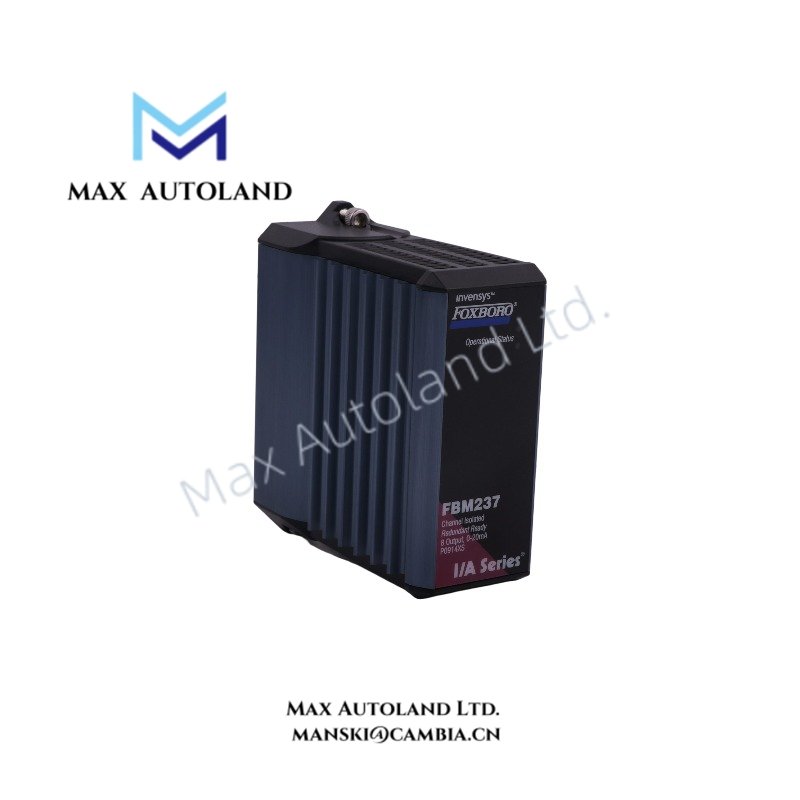

Configured for isolated 0 to 20 mA DC signal output execution in the Foxboro I/A Series DCS network, the Invensys FBM237R P0914XS (FBM237R Analog Output Interface Module) provides direct physical and electrical control signal transmission.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM237R P0914XS |
| Brand | Invensys |
| Origin | USA |
| Product Type | Analog Output Interface Module |
| Spare Model | P0914XS |
| Module Function | 8 channel analog current output |
| Output Channels | 8 galvanically isolated channels |
| Output Signal | 0 to 20 mA DC |
| Maximum Output Load | 750 ohm |
| Output Processing Delay | 30 ms maximum |
| Redundancy Configuration | Supports single or redundant module installation |
| HART Compatibility | Electrically compatible with HART field communication |
| Resolution | 13 bits |
| Accuracy | +/-0.05% of span |
| Power Supply | 24 VDC via Foxboro modular baseplate |
| Power Consumption | 7 W maximum |
| Weight | 0.3 kg |
| Dimensions | 4.5 x 11 x 11.5 cm |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +70 deg C |
| Environmental Rating | ISA Class G3 harsh environment compatibility |
DCS Current Loop Isolation and Signal Processing
The FBM237R P0914XS integrates eight independent analog output channels for Foxboro I/A Series control applications. Each channel provides galvanic isolation from adjacent channels and system ground, therefore reducing ground loop effects during field signal transmission.
Moreover, the module maintains 0 to 20 mA DC output regulation for external devices such as valve positioners, actuators, and analog controllers. The output circuitry supports a maximum load of 750 ohm and processes output updates within 30 ms maximum.
In addition, the module supports redundant installation configurations. Two FBM237R modules can operate together through the Foxboro modular architecture, allowing the control system to maintain output operation when one module becomes unavailable.
The module design follows Foxboro DCS analog interface requirements and supports instrument loop applications using current-based signaling. Furthermore, the isolated channel structure supports channel-to-channel isolation practices required in process control installations.
Frequently Asked Questions (FAQ)
Q: Does the FBM237R P0914XS provide isolated output channels?
A: Yes. The module provides eight independent analog output channels, and each channel uses galvanic isolation from other channels and system ground.
Q: Can the FBM237R P0914XS operate in a redundant configuration?
A: Yes. The module supports single or redundant installation within the Foxboro I/A Series modular architecture.
Q: What field signal range does the FBM237R P0914XS generate?
A: The module generates 0 to 20 mA DC analog output signals with a maximum external load of 750 ohm.
Field Installation Guidelines
Install the FBM237R P0914XS on the designated Foxboro modular baseplate and verify correct mechanical engagement before applying system power.
Use shielded field wiring for analog current loops when required by the installation environment. Connect cable shields according to site grounding practices to minimize electrical noise coupling.
Separate analog output wiring from high voltage power cables and high current switching circuits. Verify field device polarity before connecting the 0 to 20 mA DC output terminals.
For redundant configurations, install the paired modules according to Foxboro I/A Series hardware configuration procedures. Confirm module status indicators and DCS configuration parameters after installation.
