Overview

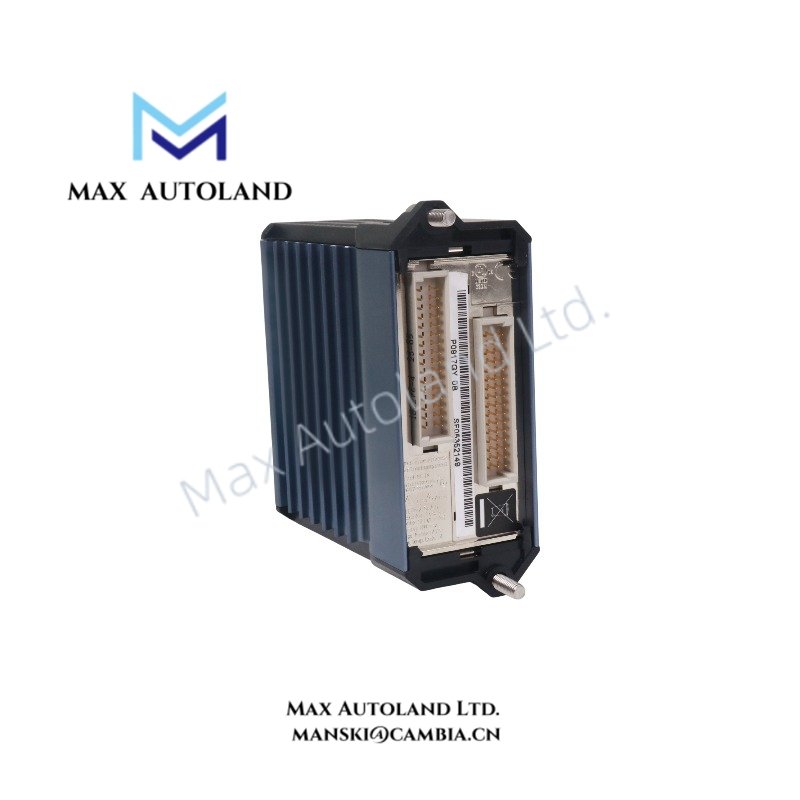

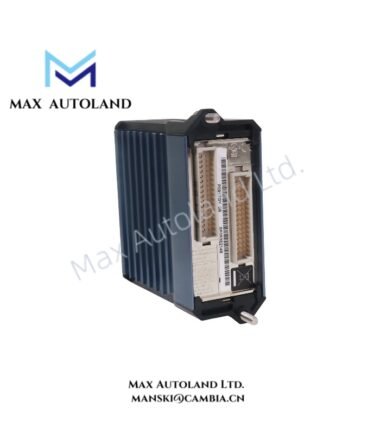

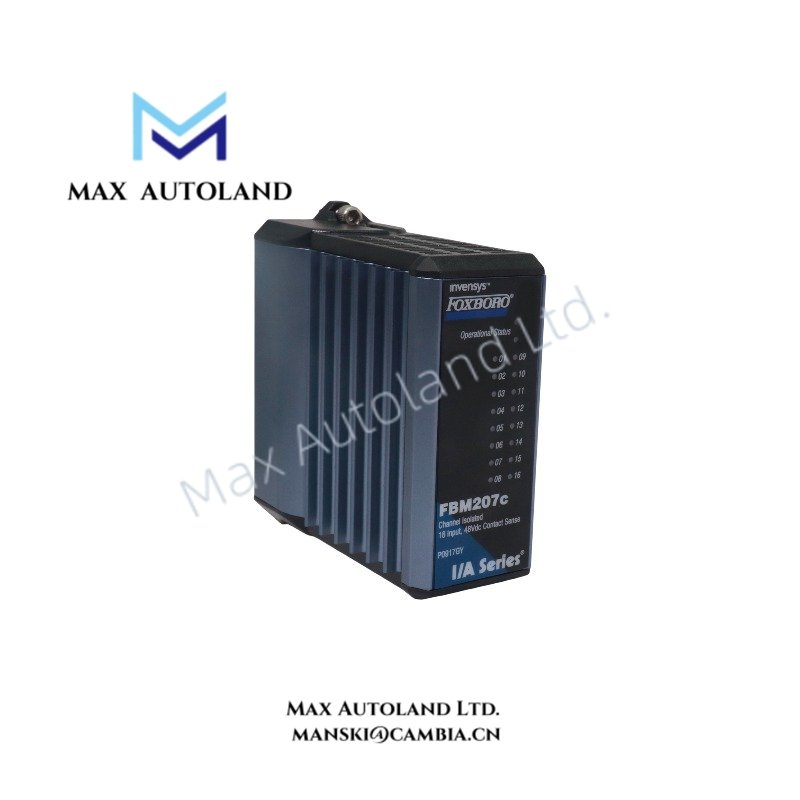

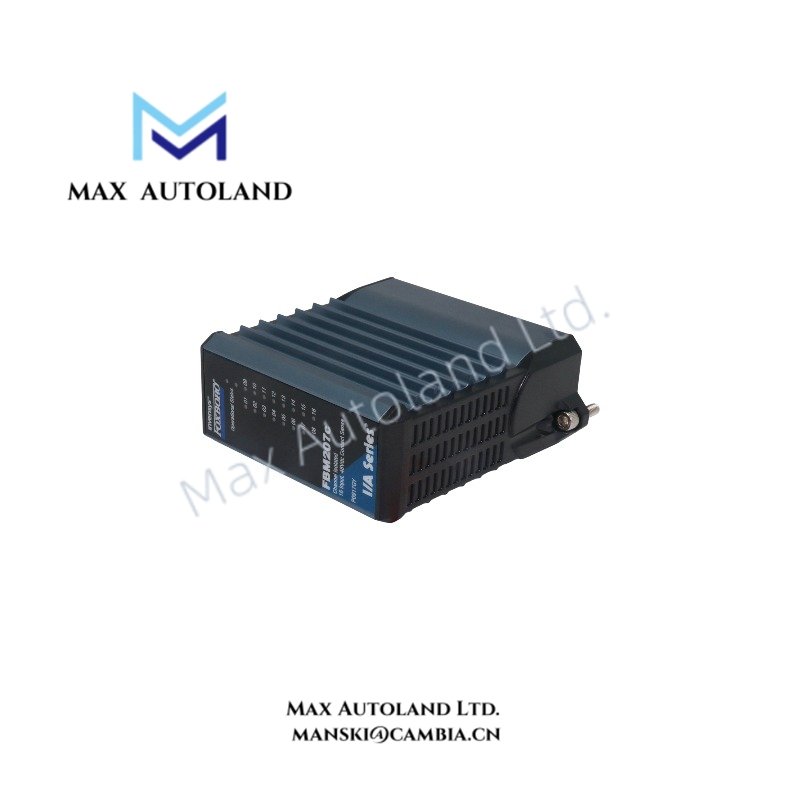

The Foxboro FBM207C, also cataloged as the FBM207C Contact Sense Input Interface Module, operates as a dedicated hardware component for 48 VDC discrete signal acquisition within Foxboro I/A Series and EcoStruxure Foxboro DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM207C |
| Brand | Foxboro (Schneider Electric) |
| Origin | USA |
| Product Type | Contact Sense Input Interface Module |
| Associated Cable | P0916FJ Type 4 Termination Cable Assembly |
| Input Channels | 16 independent discrete input channels |
| Input Type | 48 VDC contact sensor input |
| Signal Interface | 2-wire contact or solid-state switch input |
| Open-Circuit Voltage | 48 VDC +/- 15% |
| Short-Circuit Current | 3.2 mA typical |
| Logic One Resistance | 1.0 kohm maximum |
| Logic Zero Resistance | 100 kohm minimum |
| Input Filter Time | Software configurable: No filtering, 4 ms, 8 ms, 16 ms, or 32 ms |
| Isolation | Galvanic isolation between channels and earth ground |
| Isolation Voltage | 600 VAC withstand for 1 minute |
| Power Supply | 24 VDC +5%, -10% redundant baseplate supply |
| Power Consumption | 5 W maximum |
| Heat Dissipation | 5 W maximum |
| Operating Temp | -20 deg C to +70 deg C standard |
| Humidity Range | 5% to 95% non-condensing |
| Environmental Rating | ISA S71.04 Class G3 harsh environment compliance |
| Weight | Approximately 185 g |
| Dimensions | 102 mm H x 45 mm W x 104 mm D |
| Mounting Interface | Foxboro I/A Series baseplate connection |
| Termination Cable Length | 3.0 m P0916FJ Type 4 cable assembly |
| Cable Connector | 37-pin male D-subminiature connector |
Process Control Signal Isolation and DCS Interface Features
The Foxboro FBM207C performs discrete field signal conversion between contact devices and the redundant Fieldbus communication path of the Foxboro I/A Series and EcoStruxure Foxboro DCS. Moreover, each input channel provides channel-to-channel isolation to prevent electrical interaction between independent field circuits.
The module accepts 48 VDC contact signals from external switches, sensors, and relay contacts. Therefore, it converts field-level switching states into digital information for the control system while maintaining electrical separation from other channels and earth ground.
In addition, the FBM207C supports configurable input filtering through system software. This function allows users to adjust signal response characteristics for different contact switching conditions without modifying the physical wiring.
The module architecture follows Foxboro DCS requirements for distributed I/O operation. Furthermore, the isolated input design supports stable connection of field devices through the P0916FJ Type 4 termination cable assembly with a 37-pin interface.
Frequently Asked Questions
Q: Does the FBM207C support isolated input channels?
A: Yes. The FBM207C provides galvanic isolation between individual input channels and between the input circuits and earth ground.
Q: What type of field devices can connect to the FBM207C?
A: The module accepts 2-wire contact devices and solid-state switches that provide discrete open or closed signal states.
Q: What cable assembly connects the FBM207C to the field termination assembly?
A: The P0916FJ Type 4 termination cable assembly connects the module baseplate interface to the field termination assembly using a 37-pin male D-subminiature connector.
Field Installation Guidelines
Install the FBM207C on the specified Foxboro I/A Series or EcoStruxure Foxboro DCS baseplate and verify correct module seating before applying power.
Route field wiring separately from high-voltage power cables and high-noise signal sources to reduce electromagnetic interference. Moreover, maintain proper cable shielding and grounding practices according to site electrical standards.
Connect the P0916FJ termination cable securely between the baseplate interface and the field termination assembly. Check connector alignment before insertion and avoid excessive mechanical stress on the cable assembly.
Verify the 24 VDC redundant supply wiring, field contact polarity, and channel assignments through system configuration tools before commissioning.
