Overview

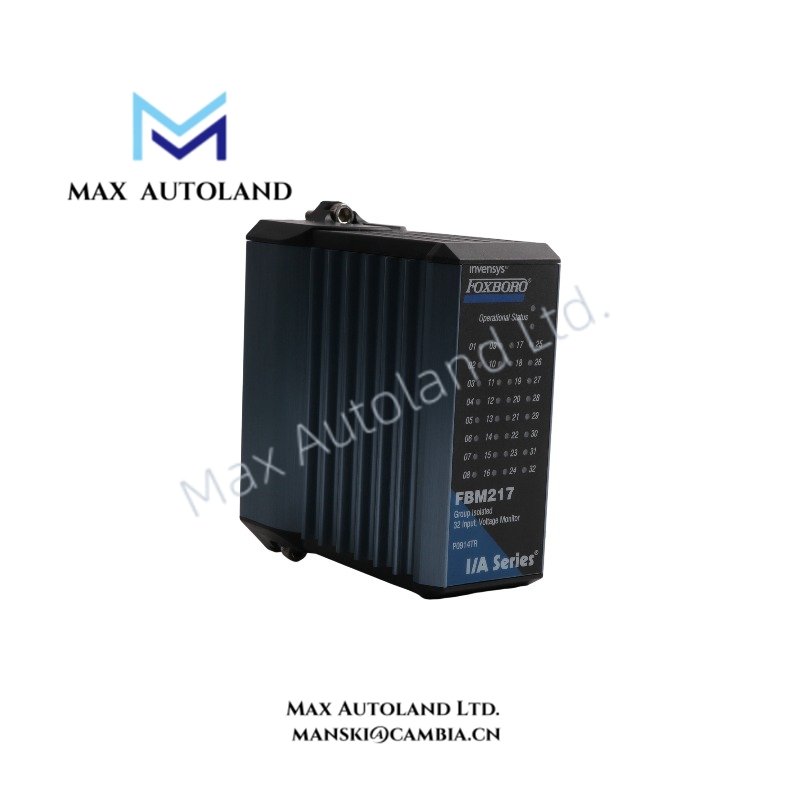

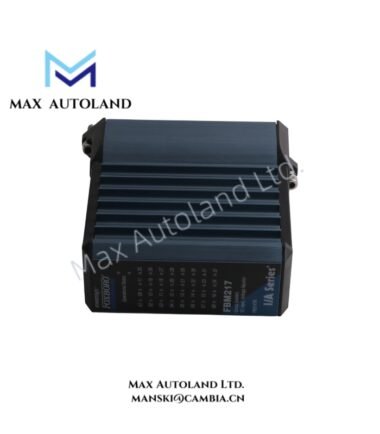

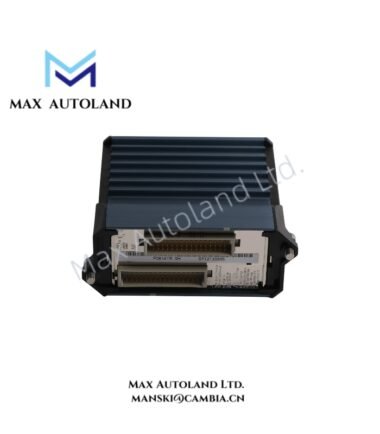

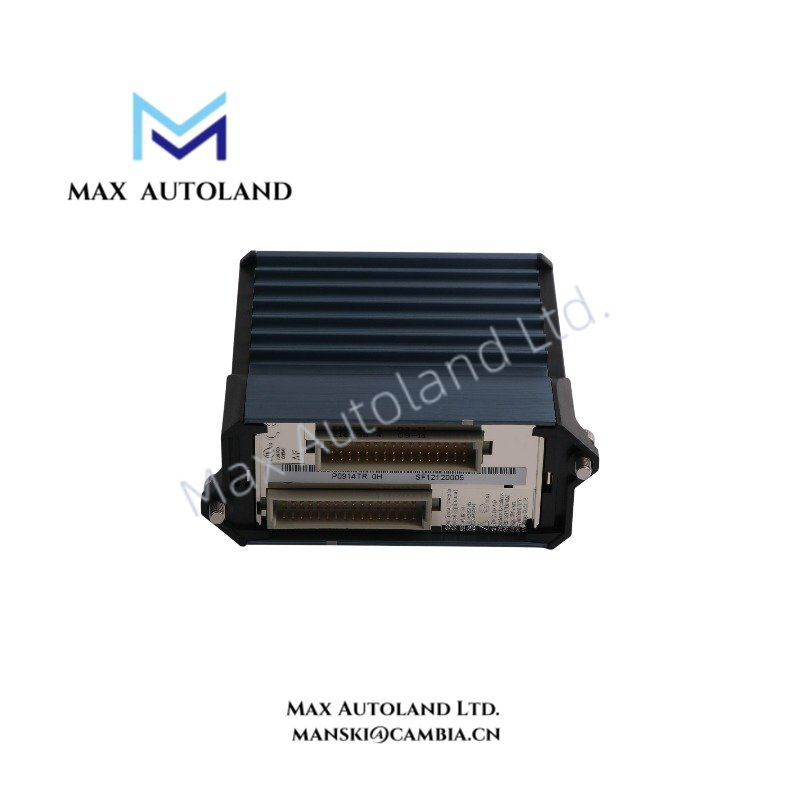

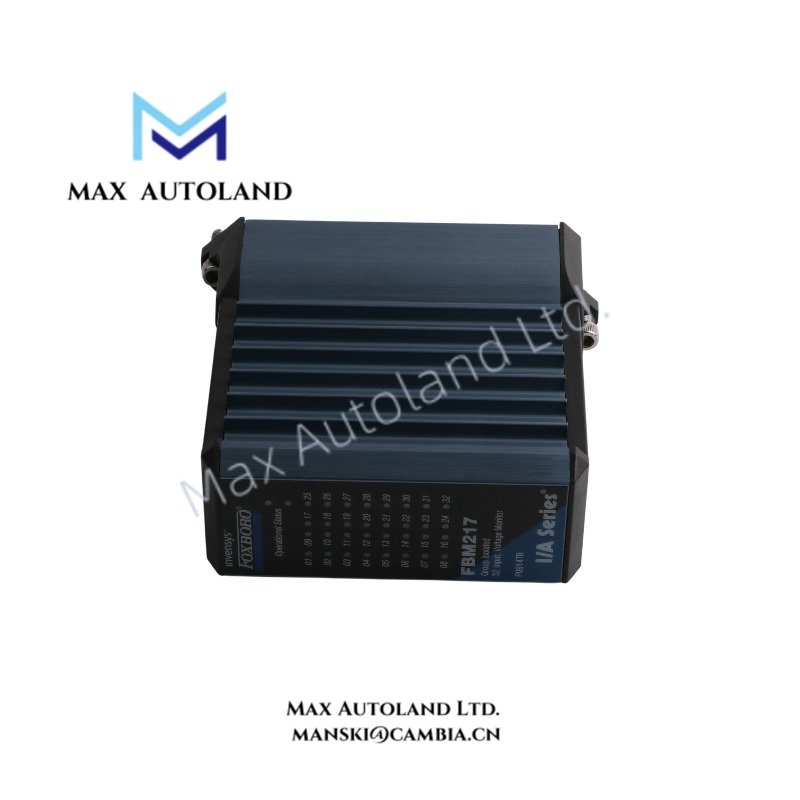

The Foxboro P0916PW, also cataloged as the FBM217 Discrete Input Interface Module, operates as a dedicated hardware component for converting field discrete signals into digital input data within the Foxboro I/A Series and EcoStruxure DCS Fieldbus network.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM217 P0916PW |
| Brand | Foxboro |
| Product Type | Discrete Input Interface Module |
| Origin | USA |
| Weight | 284 g |
| Dimensions | 102 mm x 45 mm x 104 mm |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +70 deg C |
| Power Consumption | 3 W maximum at 24 VDC |
| Number of Channels | 32 group-isolated discrete input channels |
| Input Signal Range | 15 to 30 VDC ON state; 0 to 5 VDC OFF state |
| Input Current | 2.2 mA typical at 30 VDC |
| Filter Time | Configurable: no filtering, 4 ms, 8 ms, 16 ms, or 32 ms |
| Maximum Pulse Count Rate | 250 Hz |
| Communication Interface | Redundant 2 Mbps Module Fieldbus |
| Input Power Supply | 24 VDC (+5%, -10%) redundant baseplate supply |
| Isolation Voltage | 600 VAC for 1 minute between group-isolated channels and earth ground |
| Mounting Method | DIN rail mounted or rack-mounted baseplate |
| Environmental Rating | ISA Standard S71.04 Class G3 harsh environment |
DCS Process Signal Isolation and Fieldbus Interface
The Foxboro FBM217 applies channel group isolation to separate field discrete input circuits from the control system interface. Moreover, the module uses compatible Termination Assemblies (TAs) to adapt different field voltage levels, including 15 to 60 VDC, 120 VAC/125 VDC, and 240 VAC applications.
The module supports redundant 2 Mbps Module Fieldbus communication for data exchange with Foxboro control processors. In addition, the optical isolation design reduces electrical interference between field wiring and system electronics during discrete signal acquisition.
The FBM217 follows Foxboro DCS signal interface methods that support channel-to-channel isolation for discrete field devices. Therefore, the module can process contact inputs, status feedback signals, and pulse-type discrete events while maintaining electrical separation between field circuits.
Frequently Asked Questions
Q: Does the FBM217 support redundant installation configurations?
A: Yes. The FBM217 supports single or redundant deployment configurations when installed with compatible Foxboro baseplates and system hardware.
Q: What field voltage ranges can the FBM217 process?
A: The module supports discrete input signals through compatible Termination Assemblies that accommodate multiple voltage levels, including DC and AC field circuits.
Q: How does the module handle electrical isolation requirements?
A: The FBM217 provides group-isolated input channels and supports 600 VAC isolation testing between isolated channel groups and earth ground when combined with the proper Termination Assembly.
Field Installation Guidelines
Install the FBM217 on the specified Foxboro mounting baseplate and verify that the module seating mechanism fully engages before system operation.
Connect field wiring through the correct Termination Assembly according to the required input voltage range. Keep discrete signal cables separated from high-voltage power conductors to reduce electrical noise coupling.
Ensure shielded cables use appropriate grounding practices according to plant electrical standards. Avoid routing field input wiring near high-current switching devices, motor feeders, or sources of electromagnetic interference.
Before commissioning, verify the front-panel LED status indicators, field input polarity, and configured debounce settings. Confirm that the Fieldbus communication path operates correctly before enabling process control logic.
