Overview

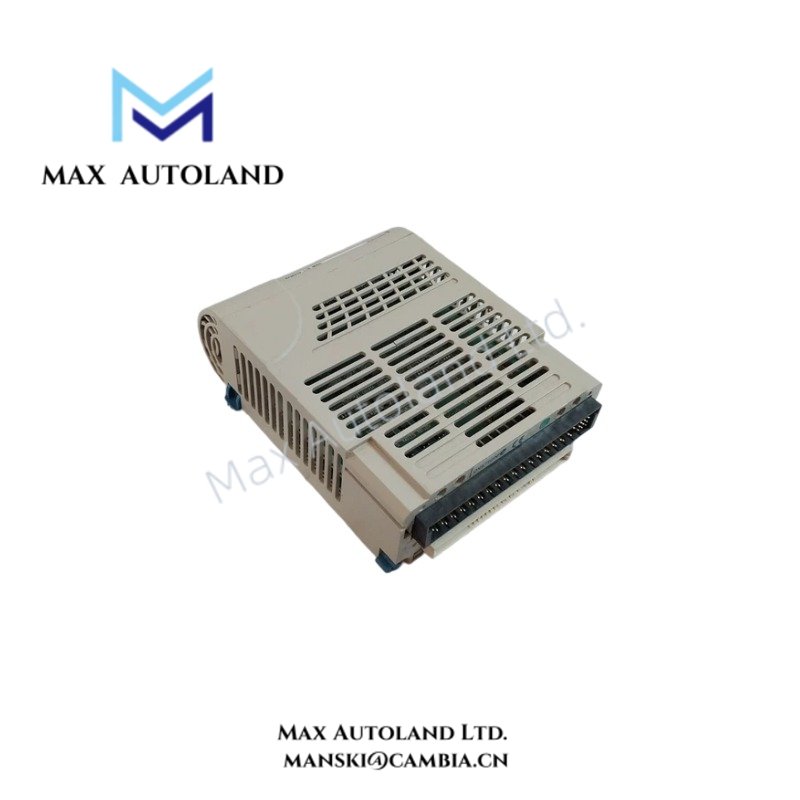

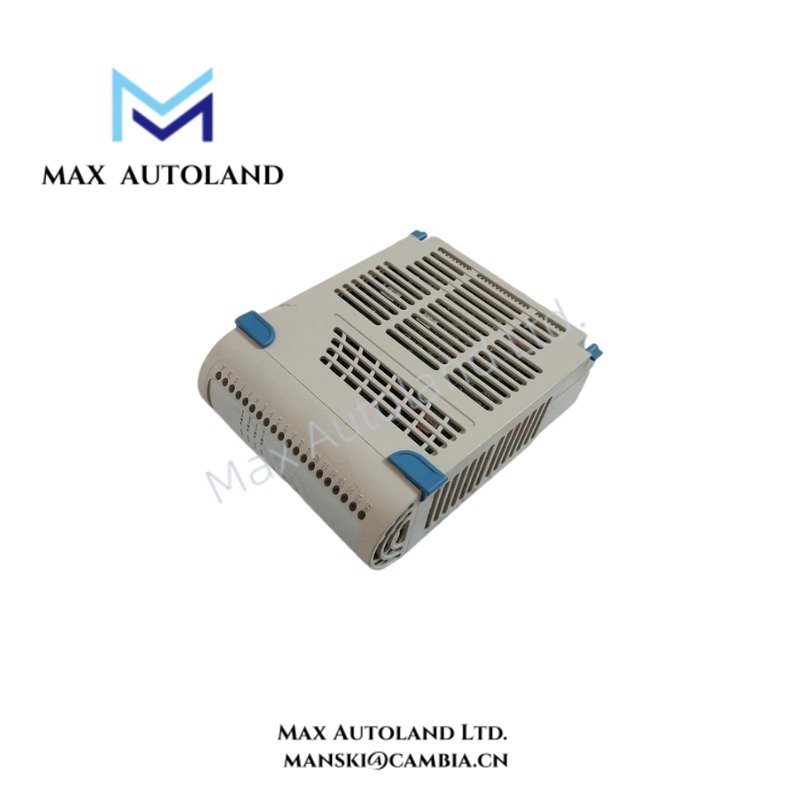

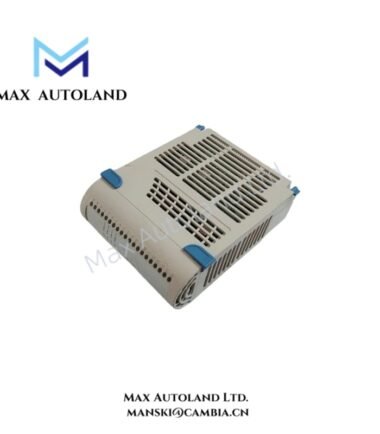

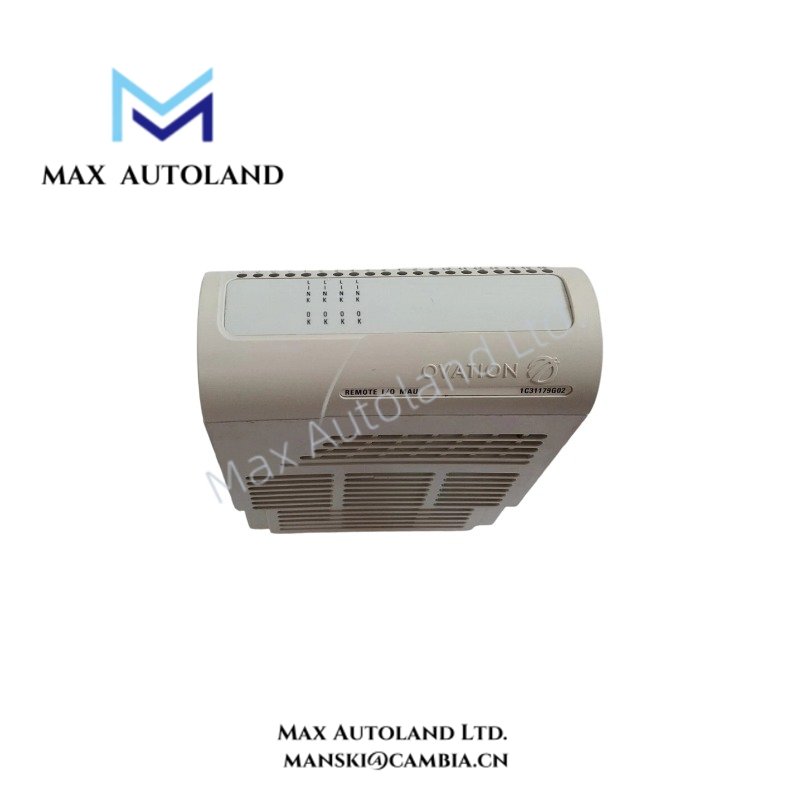

Configured for remote node fiber-optic communication in the Emerson Ovation Distributed Control System, the Emerson Ovation 1C31179G02 (1C31179G02 Electronics Module) provides direct physical and electrical execution for message transfer between the PCRR and remote nodes. The module forms the core of a Media Attachment Unit (MAU), houses Attachment Unit Logic Board functionality, supplies module power, and monitors power and fiber-optic link status through integrated LED indicators.
Suffix Breakdown & Model Matrix
The supplied documentation identifies 1C31179G02 as a fixed Emerson Ovation Electronics Module. No verified manufacturer suffix breakdown or ordering-code matrix has been provided; therefore, no suffix interpretation is included.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31179G02 |
| Brand | Emerson / Westinghouse |
| System | Emerson Ovation Distributed Control System |
| Component Type | Electronics Module / Media Attachment Unit Core |
| Primary Function | Message routing and media signal conversion between PCRR and remote nodes |
| Supported Channels | 4 channels |
| Compatible Personality Module | 1C31181G02 |
| Optical Compatibility | 850 nm optics |
| Maximum Optical Distance | Up to 2 km with compatible 850 nm personality module |
| Compatible Personality Module | 1C31181G04 |
| Optical Compatibility | 1300 nm optics |
| Maximum Optical Distance | Up to 4 km with compatible 1300 nm personality module |
| Diagnostics | LED indication for power and fiber-optic link status |
| Attachment Unit Logic | Houses LAU functionality |
| Signal Interface | System communication signals and fiber-optic media signals |
Ovation Process Control Communication Interface
The 1C31179G02 operates as part of the Ovation remote communication architecture rather than as a field analog I/O module. Accordingly, its primary signal path handles system data communication through compatible fiber-optic personality modules.
The module directs messages between the PCRR and remote nodes and converts system communication signals for transmission across the selected optical medium. Channel operation depends on the installed compatible personality module. Therefore, the 1C31181G02 configuration supports 850 nm optical links up to 2 km, while the 1C31181G04 configuration supports 1300 nm optical links up to 4 km.
Integrated LED indicators provide local status verification for module power and fiber-optic link connectivity. This allows installation personnel to check basic physical communication status without measuring the optical transmission path directly.
Frequently Asked Questions (FAQ)
Q: Does the Emerson Ovation 1C31179G02 directly connect to field 4-20 mA or HART devices?
A: No direct field analog interface is identified in the supplied specifications. The module functions as an Electronics Module within a Media Attachment Unit for Ovation remote communication.
Q: How is the fiber-optic transmission distance determined?
A: The supported distance depends on the compatible personality module and optical configuration. The supplied information specifies up to 2 km with 850 nm optics and 1C31181G02, or up to 4 km with 1300 nm optics and 1C31181G04.
Q: What diagnostics are available on the module?
A: Integrated LED indicators provide local verification of power status and fiber-optic link connectivity.
Field Installation Guidelines
Install the Emerson Ovation 1C31179G02 in the designated MAU hardware location according to the applicable Ovation system cabinet documentation.
Confirm that the installed personality module matches the required optical wavelength and transmission distance before connecting fiber-optic cables. Do not interchange 850 nm and 1300 nm optical configurations without verifying system compatibility.
Keep fiber-optic cables within their specified bend-radius requirements and protect connectors from contamination. Inspect connector interfaces before installation and use approved cleaning procedures where required.
Route communication cables separately from high-power conductors where the installation includes electrical communication interfaces. Follow the cabinet grounding and shielding practices specified for the Ovation system.
After installation, verify module power indication and fiber-optic link status through the integrated LEDs before placing the remote communication path into service.
