Overview

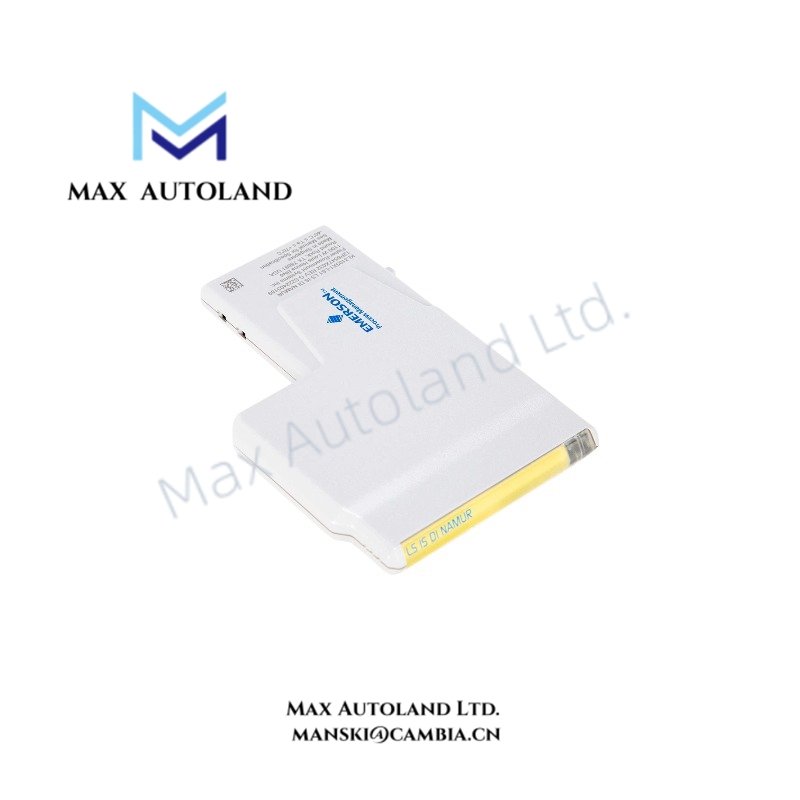

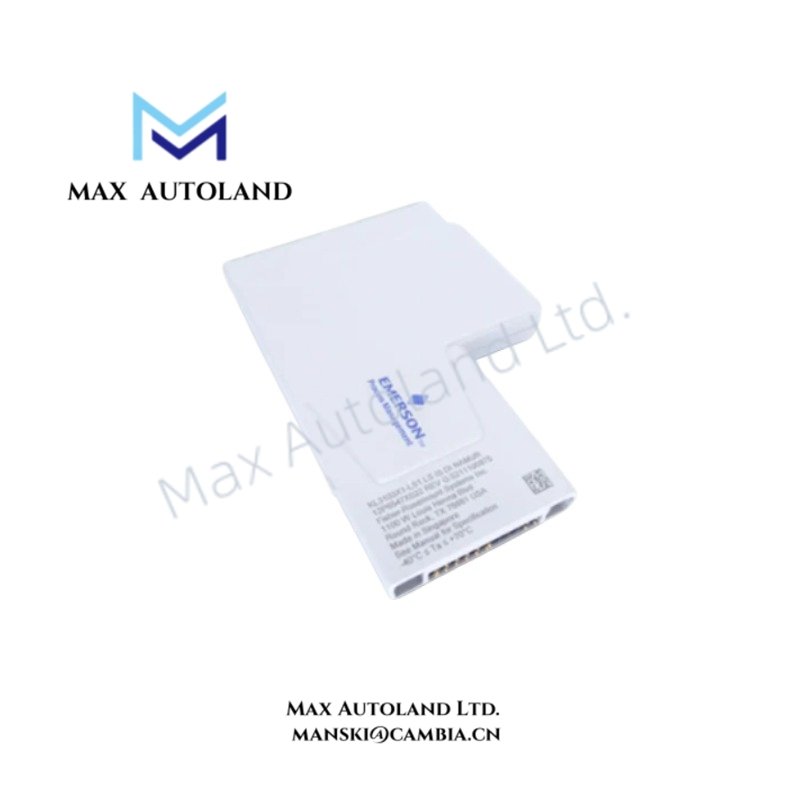

Configured for intrinsically safe discrete signal acquisition in Emerson DeltaV Electronic Marshalling and DeltaV SIS platforms, the Emerson KL3103X1-LS1 (KL3103X1-LS1 I.S. Digital Input CHARM Module) provides direct electrical processing of NAMUR sensors and dry contact inputs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KL3103X1-LS1 |
| Brand | Emerson |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 28 mA max at 24 VDC |
| Module Type | Intrinsically Safe Digital Input NAMUR CHARM |
| System Platform | DeltaV Electronic Marshalling / DeltaV SIS |
| Input Type | NAMUR proximity sensor, dry contact, discrete input |
| Channel Count | 1 channel |
| CHARM Bus Power Rating | +6.3 VDC at 32 mA |
| Field Circuit Voltage | +24 VDC nominal |
| Isolation Type | Galvanic channel-to-channel and backplane isolation |
| Diagnostic Functions | Open-circuit wire break detection and short-circuit detection |
| Hot Swap Function | Supported for live insertion and removal |
| Humidity Range | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Shock and Vibration | 10g 1/2 sine wave 11 ms; 1 mm peak-to-peak at 2-13.2 Hz; 0.7g at 13.2-150 Hz |
| Protection Rating | IP20 dependent on baseplate and enclosure configuration |
4-20 mA HART and Channel Isolation Characteristics
The Emerson KL3103X1-LS1 operates as a DeltaV Electronic Marshalling field interface module and processes discrete input states from hazardous-area devices. The module applies intrinsic safety circuit design to limit field energy and maintain electrical separation between field wiring and system electronics.
Furthermore, the module uses channel-to-channel isolation to reduce interference between signal paths. It performs NAMUR input evaluation by monitoring current states and identifying abnormal conditions, including open wiring and short-circuit states. The diagnostic data transfers through the CHARM architecture for system-level monitoring.
The module follows Emerson process control hardware design principles, including isolated I/O processing and direct terminal connection. Therefore, engineers can configure field devices without traditional marshalling cabinets or additional signal conversion hardware.
Frequently Asked Questions
Q: Does the KL3103X1-LS1 support hot-swapping during system operation?
A: Yes. The module supports live insertion and removal when installed in a compatible DeltaV CHARM baseplate configuration. The system must follow Emerson installation procedures for powered replacement.
Q: What type of field devices can connect to the KL3103X1-LS1?
A: The module accepts discrete signals from NAMUR proximity sensors and dry contact devices. It evaluates field circuit conditions through intrinsic safety input monitoring.
Q: How does the module detect field wiring faults?
A: The KL3103X1-LS1 detects open-circuit wire breaks and short-circuit conditions by analyzing NAMUR input current characteristics.
Field Installation Guidelines
- Install the KL3103X1-LS1 on the specified DeltaV CHARM baseplate and verify mechanical locking before operation.
- Connect field wiring according to Emerson terminal assignment documentation and maintain correct polarity for discrete input circuits.
- Separate intrinsic safety field cables from non-I.S. wiring to maintain hazardous-area installation requirements.
- Use appropriate grounding and shielding practices to reduce electrical noise coupling into signal circuits.
- Verify hazardous-area certification requirements before connecting field devices.
- Confirm CHARM bus power availability before module installation.
- Inspect terminal connections periodically to prevent loose wiring and contact resistance changes.
