Overview

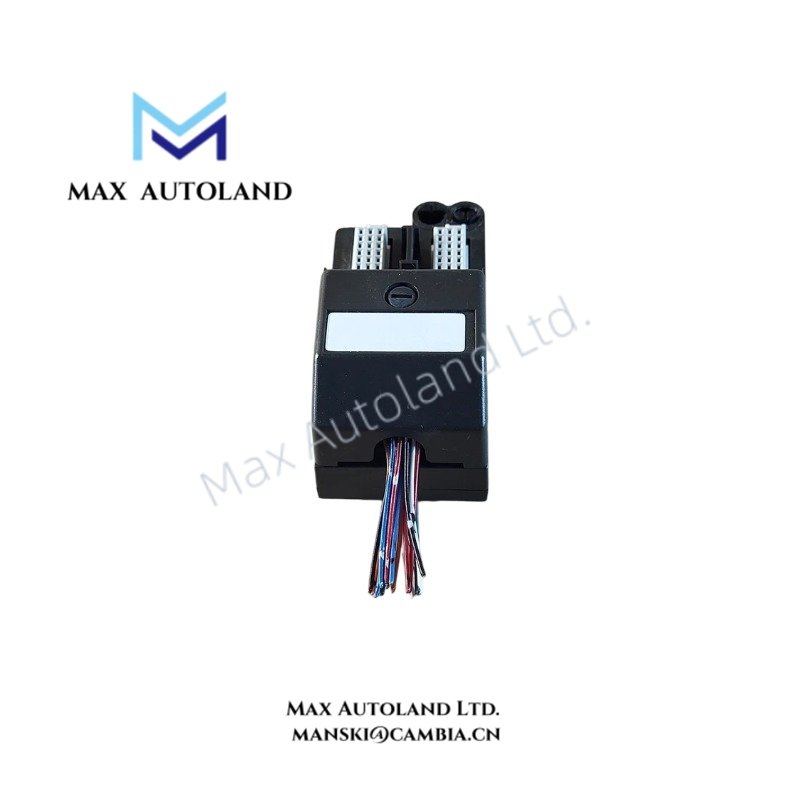

Configured for field signal termination in the DeltaV Electronic Marshalling CHARM I/O Subsystem, the Emerson KJ4001X1-CE1 (KJ4001X1-CE1 Mass Terminal Block 16 Pin) provides direct physical connection between field wiring and CHARM I/O assemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4001X1-CE1 |
| Brand | Emerson |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power rating 30 VDC @ 1 A / channel |
| Product Type | Mass Terminal Block 16 Pin |
| Application System | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Hazardous Area Rating | Supports installation in hazardous atmosphere applications according to applicable DeltaV Zone 2 installation instructions |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 13.2 Hz; 0.7 g from 13.2 Hz to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Calibration Requirement | Calibration is not required |
DeltaV CHARM I/O Field Termination Interface
The KJ4001X1-CE1 Mass Terminal Block provides a physical termination point for field wiring connections within the Emerson DeltaV Electronic Marshalling architecture. It supports signal routing between field devices and CHARM I/O modules while maintaining defined electrical separation requirements.
Furthermore, the terminal block supports hazardous atmosphere installation conditions when engineers follow the specified DeltaV Zone 2 installation procedures. The unit operates within a -40 deg C to +70 deg C ambient temperature range and withstands defined mechanical stress conditions.
The KJ4001X1-CE1 does not require calibration because it functions as a passive termination component. Therefore, maintenance activities focus on installation integrity, wiring inspection, and mechanical connection verification.
Frequently Asked Questions
Q: Can the KJ4001X1-CE1 be removed or inserted while system power is energized?
A: No. This unit cannot be removed or inserted with system power energized. Engineers must isolate system power before performing installation or replacement activities.
Q: Does the KJ4001X1-CE1 require periodic calibration?
A: No. The terminal block contains no measurement circuitry and does not require calibration.
Q: Can users repair internal components of the KJ4001X1-CE1?
A: No. The unit contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
Install the KJ4001X1-CE1 according to Emerson DeltaV Electronic Marshalling CHARM I/O subsystem installation documentation. Before installation or removal, verify that system power is isolated to prevent electrical hazards.
Route field wiring according to site electrical standards and maintain proper separation between signal cables and high-energy power conductors. Confirm terminal connections are mechanically secure and inspect wiring insulation before commissioning.
For hazardous atmosphere applications, follow the approved Zone 2 installation instructions and verify that the installed configuration matches the equipment certification requirements.
Maintain proper grounding practices for connected field circuits. Avoid unauthorized modification of the terminal block assembly because internal servicing is not supported.
