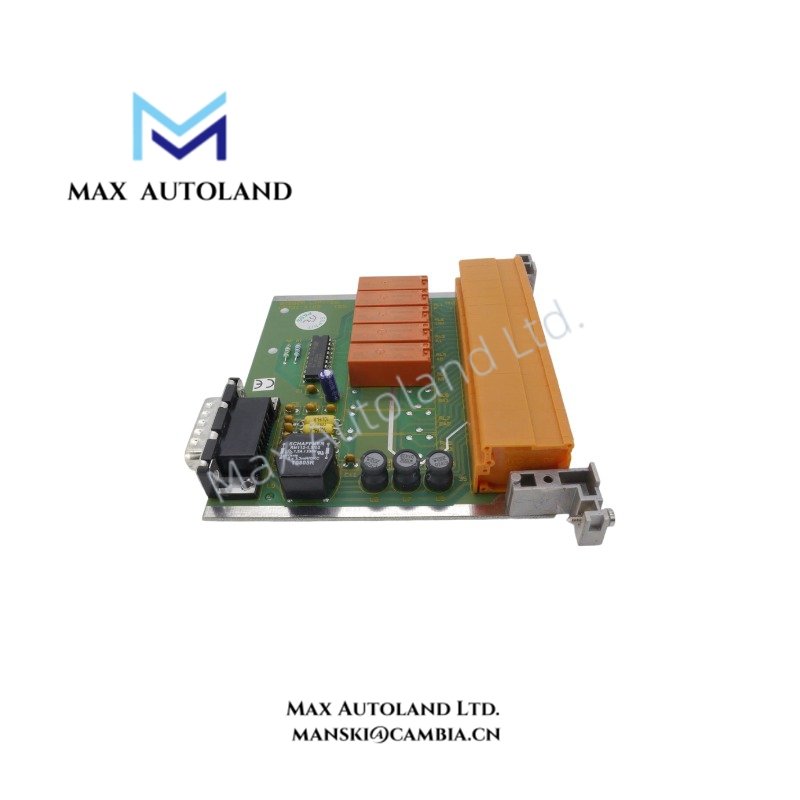

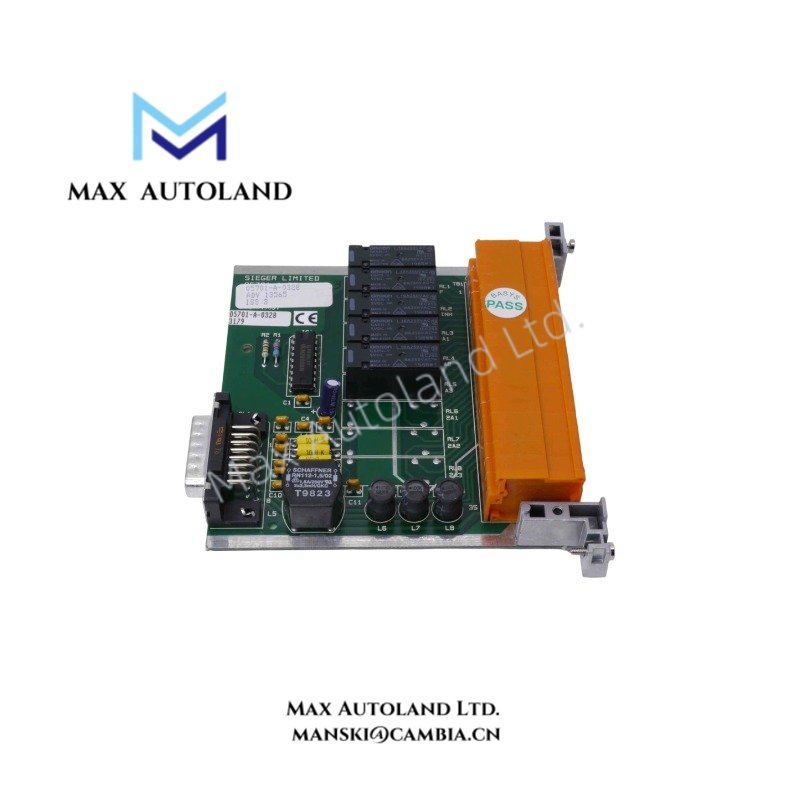

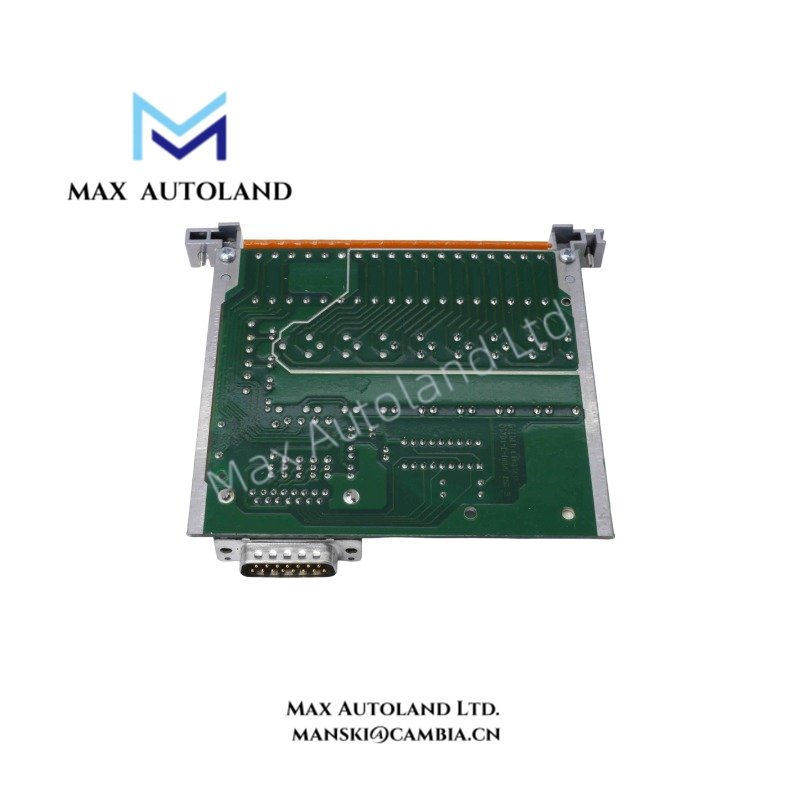

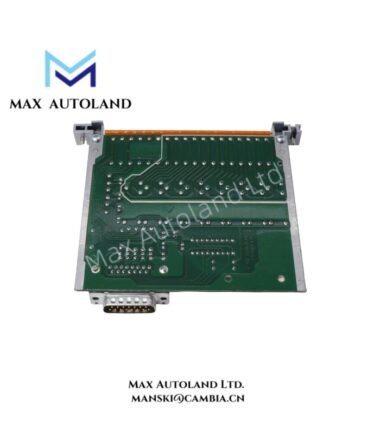

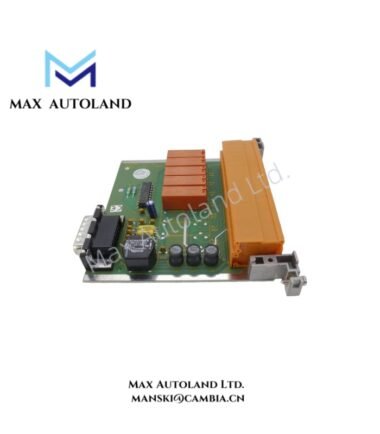

Honeywell 05701-A-0328 Triple SPCO Analytics Relay Card

Overview

The Honeywell 05701-A-0328, also cataloged as the 05701-A-0328 Triple SPCO Analytics Relay Card, operates as a dedicated hardware component for discrete alarm relay switching within the Honeywell System 57 gas monitoring platform.

Hardware Specifications

Process Control Relay Interface Characteristics

The Honeywell 05701-A-0328 uses discrete relay switching to transfer System 57 alarm and status conditions into external safety circuits. Moreover, the card provides configurable relay behavior for alarm handling sequences, including latched outputs and energized or de-energized states.

The module operates as an interface element between System 57 monitoring channels and external annunciation, shutdown, or control devices. In addition, the SPCO contact arrangement allows separate field wiring configurations for alarm, fault, and inhibit signal routing.

The System 57 architecture commonly integrates with industrial instrumentation loops, including 4-20 mA HART loop protocol devices and other field transmitters. However, this relay card itself performs discrete contact switching rather than analog signal processing. Therefore, installation design must separate relay wiring from low-level measurement signal paths to minimize electrical interference.

Frequently Asked Questions

Q: What relay functions does the Honeywell 05701-A-0328 support?
A: The card supports SPCO relay switching for A1, A2, A3 alarm signals, Fault status, and Inhibit functions within the System 57 architecture.

Q: Does the 05701-A-0328 process analog transmitter signals directly?
A: No. The module performs discrete relay output switching and receives control states from the System 57 monitoring system.

Q: Can the relay operating state be configured for different safety circuit requirements?
A: Yes. The module supports selectable normally energized or de-energized operation and configurable latching or non-latching relay behavior.

Field Installation Guidelines

Install the Honeywell 05701-A-0328 inside the designated System 57 3U subrack position and verify the mechanical locking arrangement before applying power.

Route relay output wiring separately from sensitive analog measurement cables to reduce electromagnetic interference. Use appropriate cable shielding and connect shields according to the plant grounding standard.

Confirm terminal assignments before field connection. Check relay contact states during commissioning to verify that alarm, fault, and inhibit signals correspond with the configured safety logic.

Inspect power distribution, grounding continuity, and external contact loads before placing the module into operational service.
