Overview

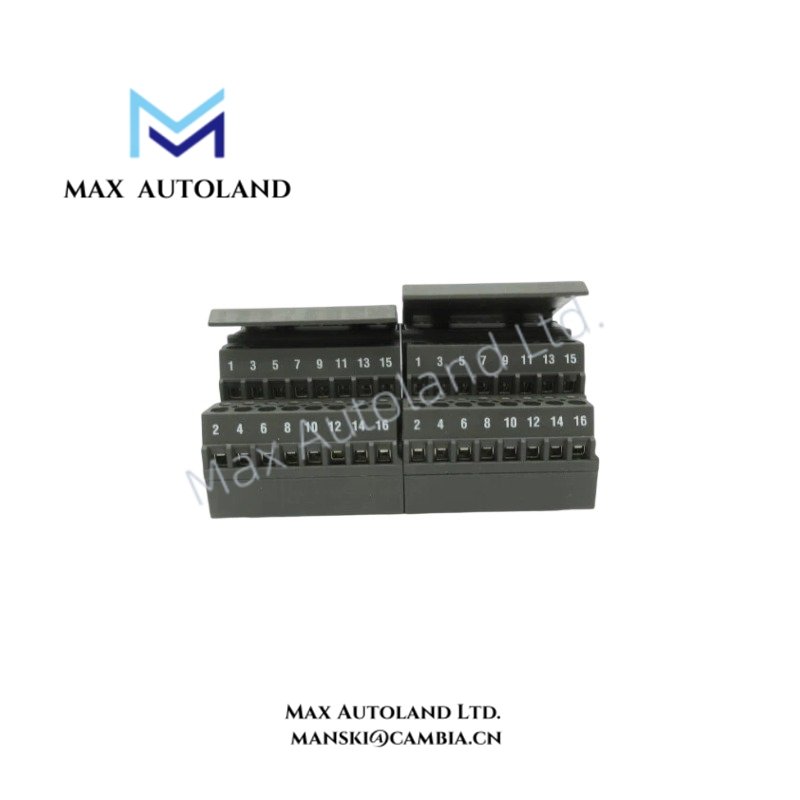

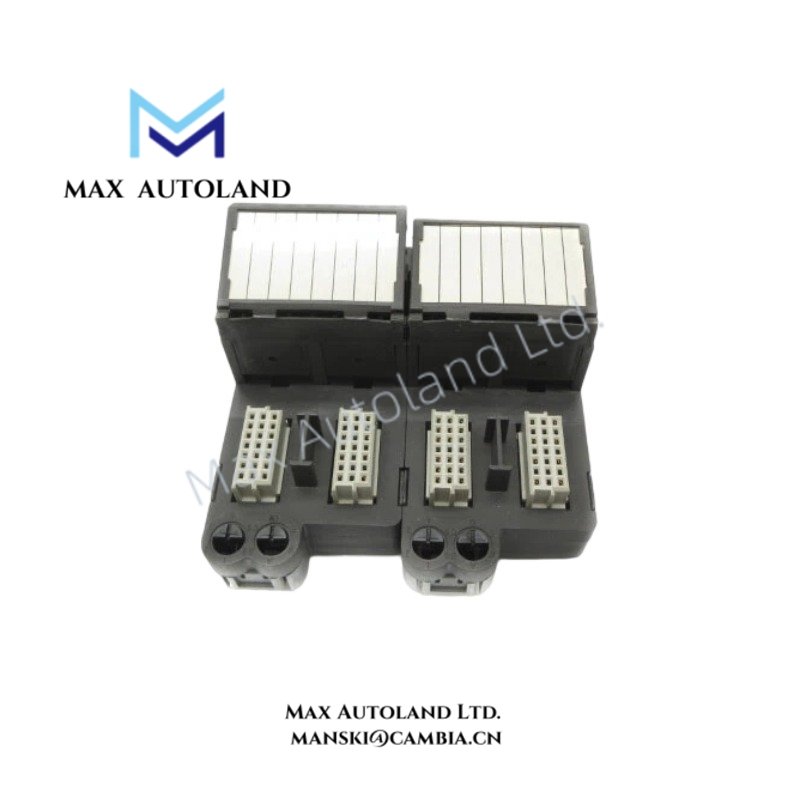

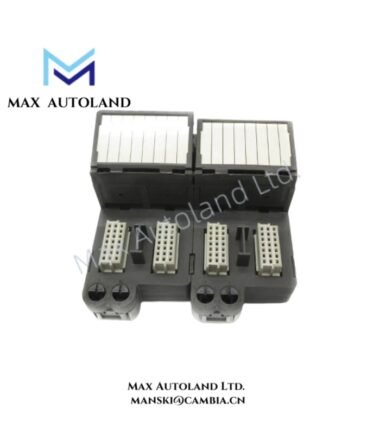

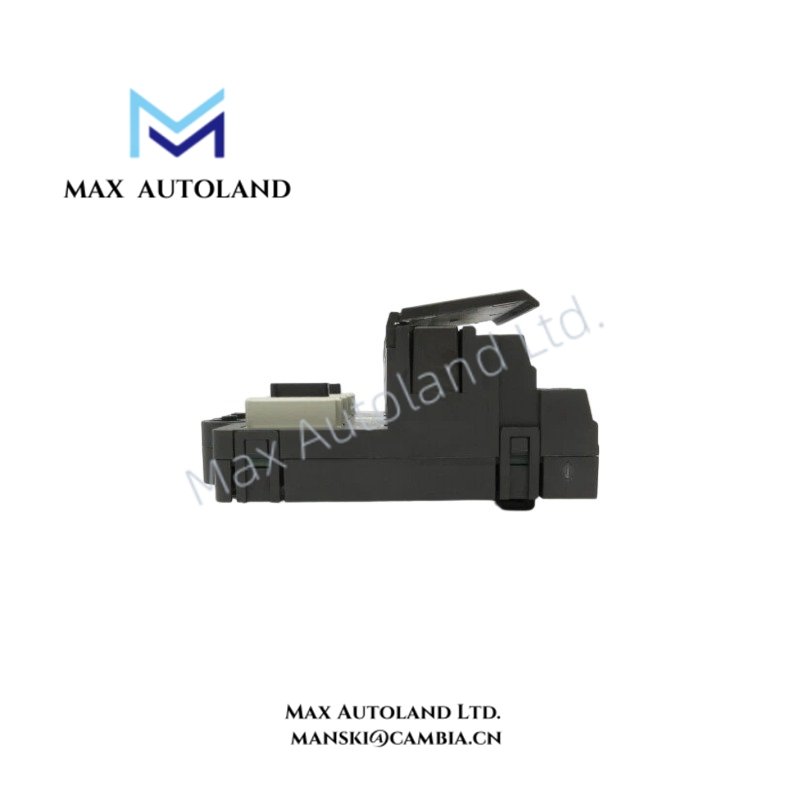

Configured for hazardous area signal termination in the DeltaV Electronic Marshalling CHARM I/O Subsystem, the Emerson KJ3241X1-EA1 (KJ3241X1-EA1 Red Interface Terminal Block) provides direct physical and electrical connection between field wiring and CHARM-based I/O components.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3241X1-EA1 |
| Brand | Emerson |
| Product Type | Red Interface Terminal Block |
| System Platform | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Hazardous Area Rating | II 3G Ex ec IIC Gc |
| Input Power Rating | 35 VDC @ 1 A |
| Operating Temp | -40 deg C to +70 deg C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Relative Humidity | 5 to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Power Consumption | Input power rating 35 VDC @ 1 A |
DeltaV Hazardous Area Interface Characteristics
The KJ3241X1-EA1 terminal block operates as a physical interface component within the Emerson DeltaV CHARM I/O architecture. It supports installation in hazardous locations through certified protection methods, including ATEX, IECEx, UKEX, FM, and CSA approvals.
Furthermore, the module design follows hazardous area installation requirements and supports Zone 2 applications with Ex ec protection. The unit provides electrical termination between field circuits and the associated CHARM I/O hardware while maintaining the specified environmental operating range.
The terminal block does not implement process signal conversion or controller logic execution. Instead, it provides the required wiring interface and enclosure-level protection for CHARM subsystem installations.
Frequently Asked Questions
Q: Can the KJ3241X1-EA1 be removed or inserted while system power remains active?
A: No. The unit cannot be removed or inserted with system power energized. Power must be disconnected before replacement or maintenance operations.
Q: Does the KJ3241X1-EA1 require calibration after installation?
A: No. The terminal block contains no calibration functions and does not require adjustment.
Q: Does the KJ3241X1-EA1 contain user-serviceable components?
A: No. The unit contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
- Install the KJ3241X1-EA1 according to Emerson DeltaV CHARM I/O subsystem hazardous area installation documentation.
- Verify that the installation location meets the specified Zone 2 hazardous area requirements before operation.
- Confirm terminal wiring follows the approved field wiring diagram and application requirements.
- Disconnect system power before inserting or removing the terminal block.
- Maintain proper cable routing practices to reduce electrical interference from high-energy conductors.
- Follow grounding and shielding requirements defined by the DeltaV system installation manual.
- Inspect terminal connections during commissioning to verify correct field circuit termination.
