Overview

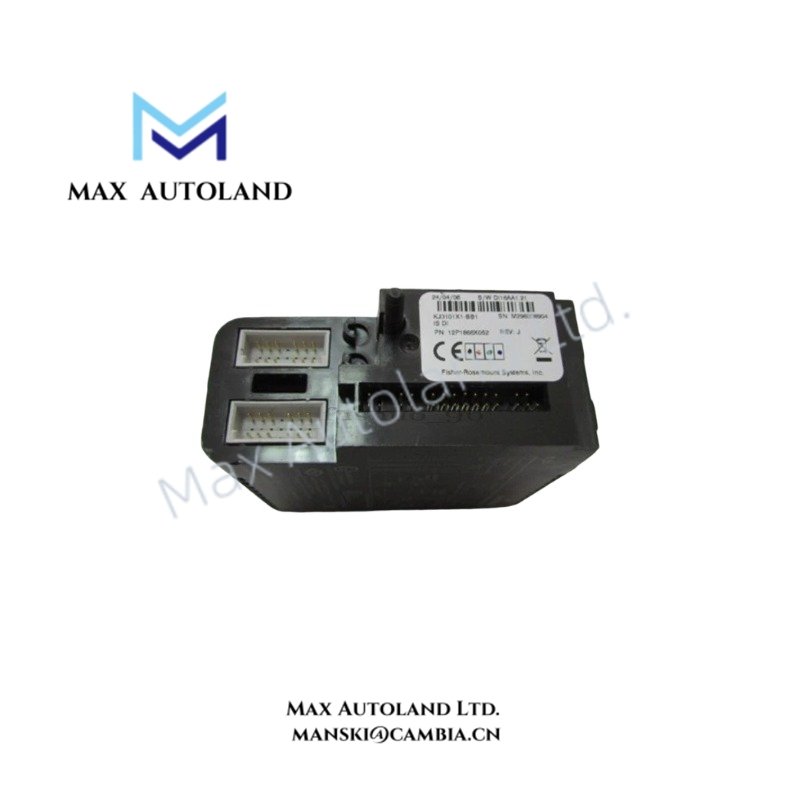

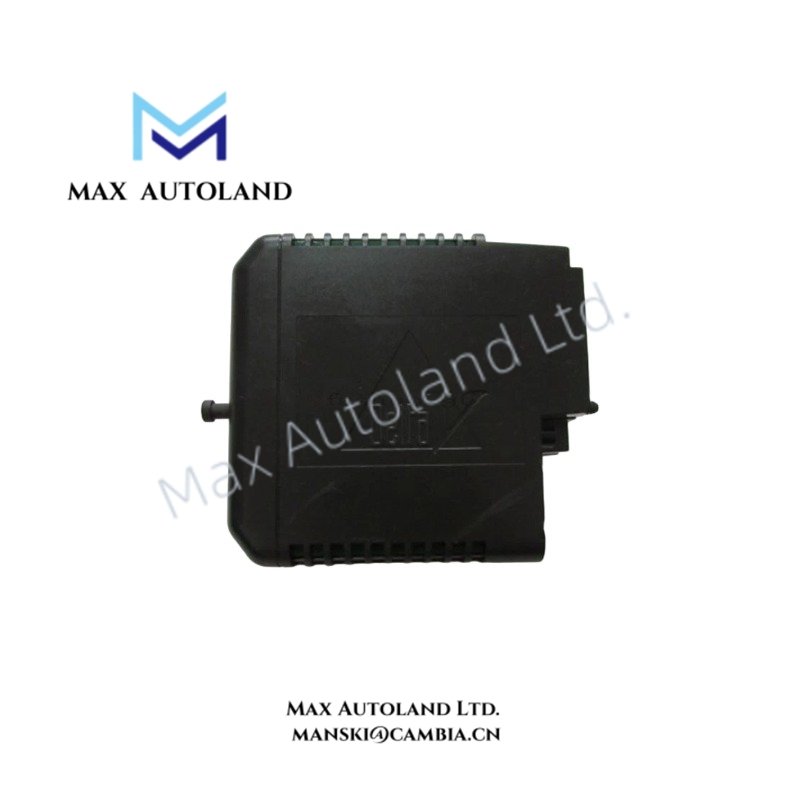

Configured for isolated discrete input signal acquisition in the Emerson DeltaV system, the Emerson KJ3101X1-BB1, also cataloged as the KJ3101X1-BB1 8-Channel IS DI Field Safety Module, provides direct electrical interface execution for field contact and digital status monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3101X1-BB1 |
| Brand | Emerson |
| Product Type | 8-Channel IS Digital Input Field Safety Module |

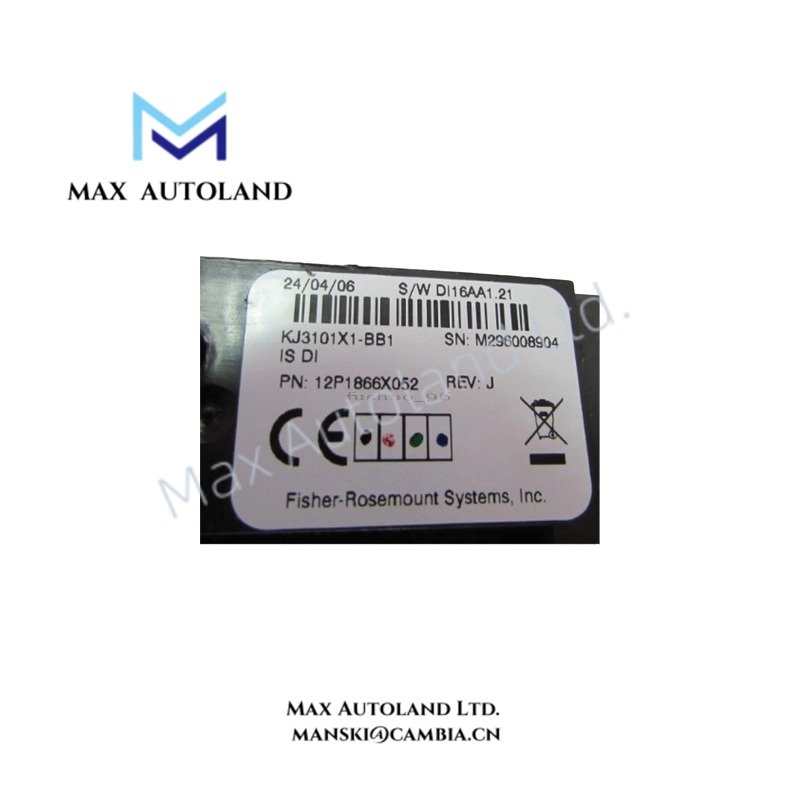

| Spare Model | 12P1866X052 |
| System Compatibility | Emerson DeltaV M-series I/O System |
| Input Type | Intrinsically Safe discrete input signals |
| Number of Channels | 8 input channels |
| Signal Interface | Discrete field contact input |
| Isolation Type | Channel-to-channel and field-to-system isolation |
| Origin | United States |
| Weight | 0.26 kg |
| Dimensions | 4.1 x 12.5 x 10.5 cm |
| Mounting Type | DeltaV I/O carrier installation |
| Diagnostic Function | Module and channel status indication |
Channel Isolation and DCS Field Interface Characteristics
The KJ3101X1-BB1 module processes discrete field signals through isolated input channels within the DeltaV I/O architecture. Because Emerson modules support process instrumentation interfaces, this module uses channel-to-channel isolation to reduce electrical interference between field circuits.
Furthermore, the module design supports intrinsic safety field applications where field devices require controlled energy levels. The input channels receive contact or discrete status signals and transfer processed states to DeltaV controllers through the system backplane.
The module belongs to the Emerson process control hardware family, where discrete signal handling is separated from controller execution through modular I/O processing. Therefore, field wiring faults and channel disturbances remain isolated from the control processor.
Frequently Asked Questions
Q: How many discrete input signals can the KJ3101X1-BB1 process?
A: The KJ3101X1-BB1 provides 8 isolated discrete input channels for field status acquisition.
Q: Does the module provide electrical isolation between input channels?
A: Yes. The module design includes channel-to-channel and field-to-system isolation for discrete signal processing.
Q: Can the KJ3101X1-BB1 operate as a standalone input device?
A: No. The module requires installation in an Emerson DeltaV I/O carrier system and communicates through the DeltaV backplane.
Field Installation Guidelines
- Install the module only in compatible Emerson DeltaV I/O carrier assemblies.
- Verify field wiring polarity and terminal assignments before applying power.
- Separate low-level discrete signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points on shielded signal cables.
- Confirm intrinsic safety barriers and field protection devices match the installed field circuit requirements.
- Check module seating, carrier connection, and diagnostic indicators after installation.
