Overview

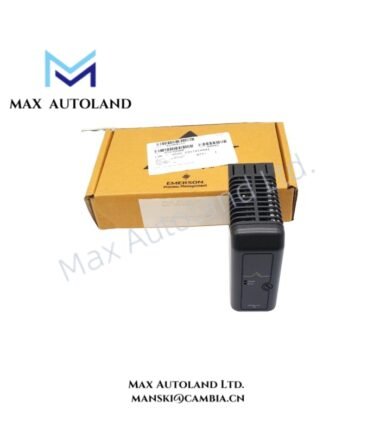

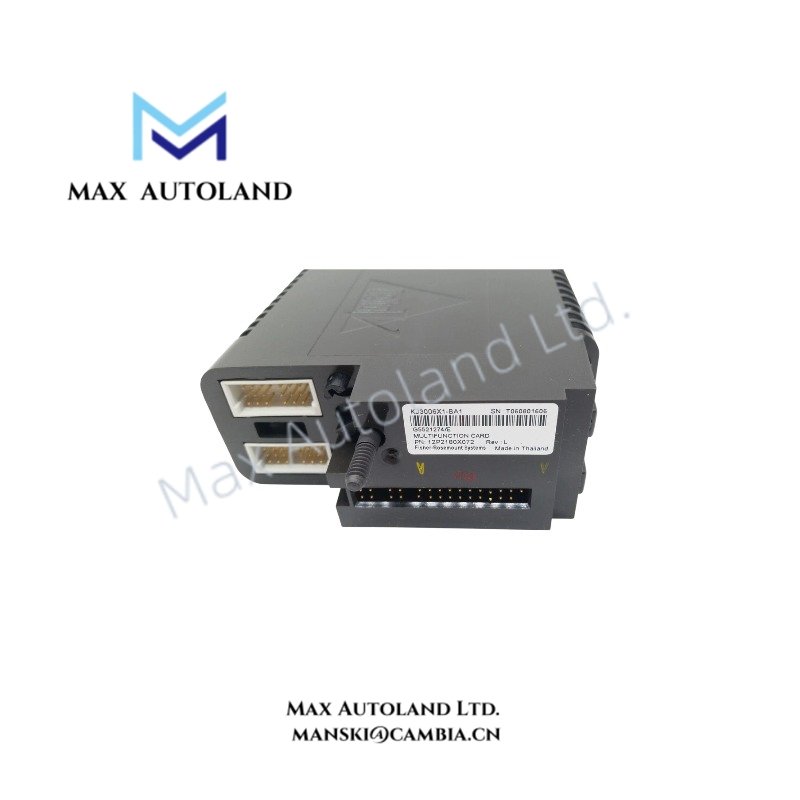

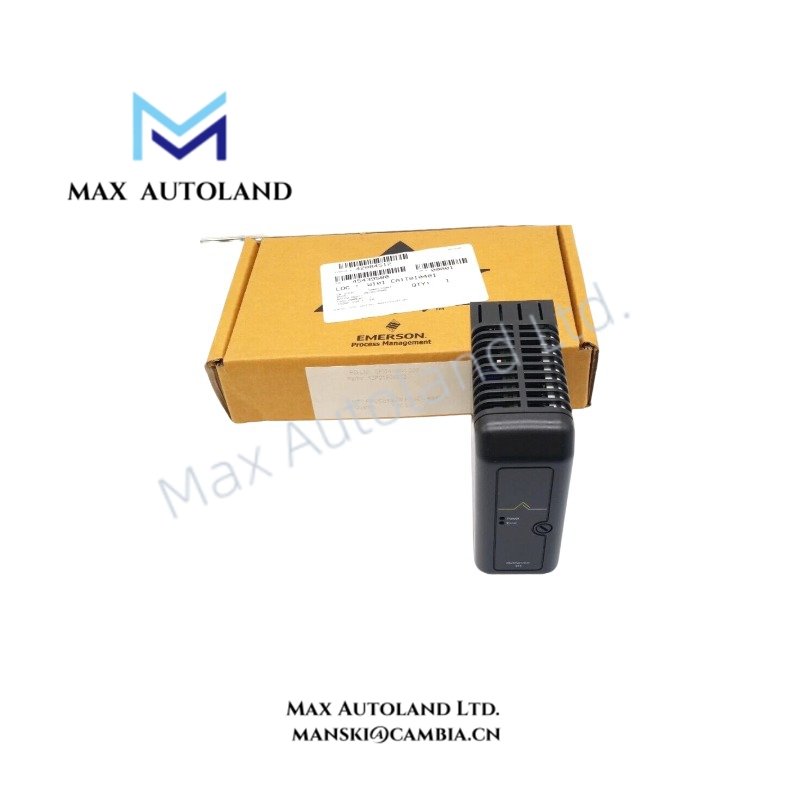

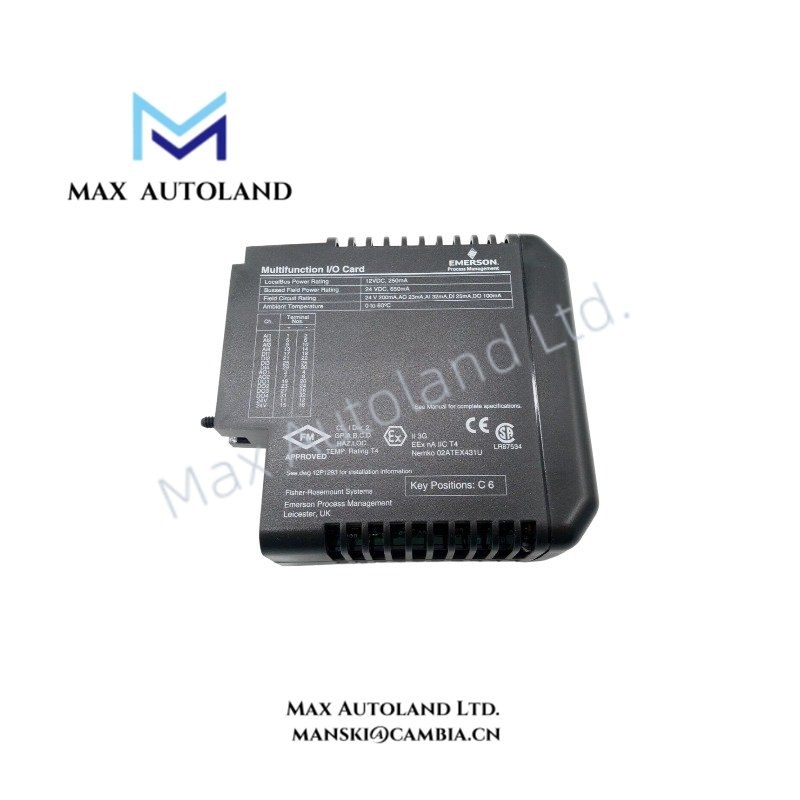

The Emerson KJ3006X1-BA1, also cataloged as the VE4015 Multifunction I/O / Pulse Count Input Card, operates as a dedicated hardware component for discrete signal processing and pulse counting within the Emerson DeltaV control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3006X1-BA1 |
| Brand | Emerson Automation Solutions |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | LocalBus: 12 VDC at 250 mA; Bussed Field Power: 24 VDC at 650 mA |
| Series | DeltaV Control System |
| Part Number | 12P2180X072 |
| Module Type | Multifunction I/O Card / Pulse Count Input Card |
| Input Signal Types | Pulse Count, Dry Contact, Discrete Signals |
| Field Circuit Rating | 24 VDC |
| Mounting Method | DeltaV Carrier / DIN Rail Mounting |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Airborne Contaminants Rating | ISA-S71.04-1985 Class G3, conformal coated |
| Vibration Tolerance | 1 mm peak-to-peak at 5 to 16 Hz; 0.5 g at 16 to 150 Hz |
| Mechanical Shock | 10 g half-sine wave for 11 ms |
| Protection Rating | IP20 |
DCS Signal Processing and Isolation Characteristics
The Emerson KJ3006X1-BA1 processes discrete input signals and pulse counting data through DeltaV I/O architecture. In addition, the module supports dry contact and pulse-based field devices for industrial measurement and control loops.
The module operates with DeltaV carrier communication and receives power through LocalBus and bussed field power connections. Furthermore, the conformal coated construction supports operation in environments with ISA-S71.04-1985 Class G3 airborne contaminants.
For process control applications, Emerson DeltaV I/O modules typically support structured channel handling, field wiring separation, and signal conditioning functions. The KJ3006X1-BA1 configuration focuses on pulse counting and discrete signal acquisition rather than analog measurement loops such as 4-20 mA HART or FOUNDATION Fieldbus.
Frequently Asked Questions
Q: What field signals can the KJ3006X1-BA1 process?
A: The KJ3006X1-BA1 processes pulse count signals, dry contact inputs, and discrete field signals through the DeltaV I/O system interface.
Q: What power requirements apply to the KJ3006X1-BA1 module?
A: The module requires LocalBus power rated at 12 VDC and 250 mA, while bussed field power is rated at 24 VDC and 650 mA.
Q: Can the KJ3006X1-BA1 operate in industrial contamination environments?
A: Yes. The module uses conformal coating and meets ISA-S71.04-1985 Class G3 airborne contaminant requirements based on the provided specifications.
Field Installation Guidelines
- Install the KJ3006X1-BA1 module on the specified DeltaV carrier according to Emerson hardware installation procedures.
- Verify that LocalBus and field power wiring match the required DC voltage ratings before energizing the module.
- Separate field signal wiring from high-current power cables to reduce electrical interference.
- Use proper shield grounding practices when connecting pulse devices or discrete field instruments with shielded cables.
- Confirm terminal assignments and field device polarity before applying power.
- Maintain suitable cabinet ventilation to keep the module within the specified operating temperature range.
- Inspect module connectors and carrier contacts before installation to prevent communication faults.
