Overview

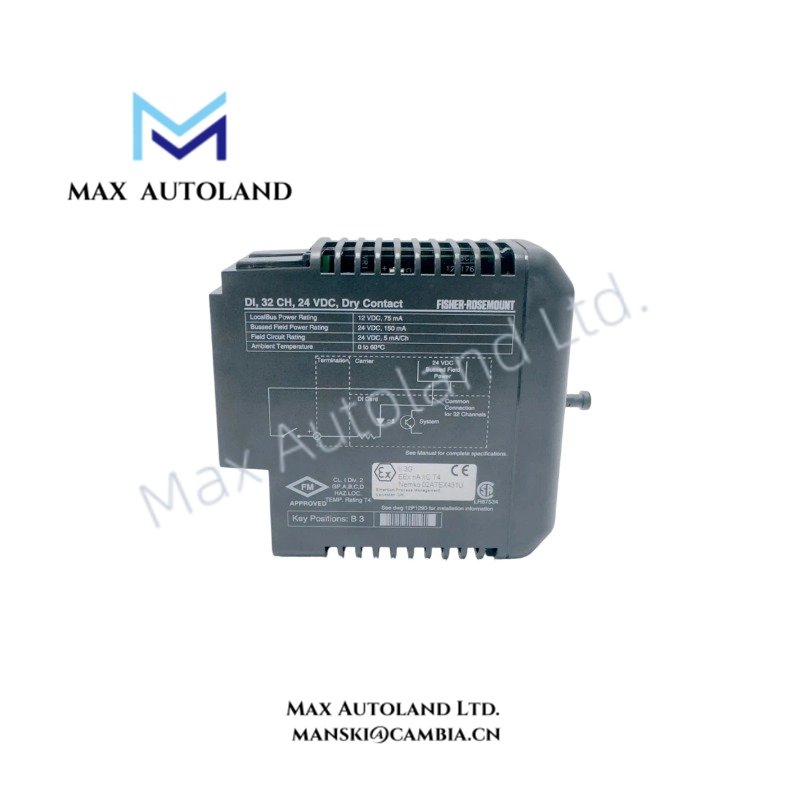

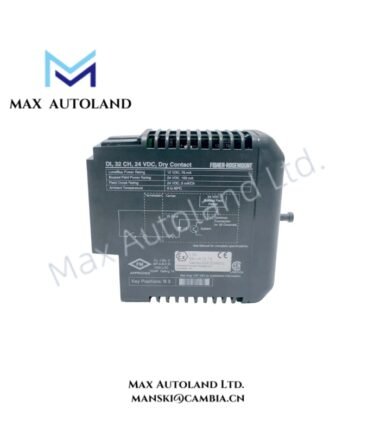

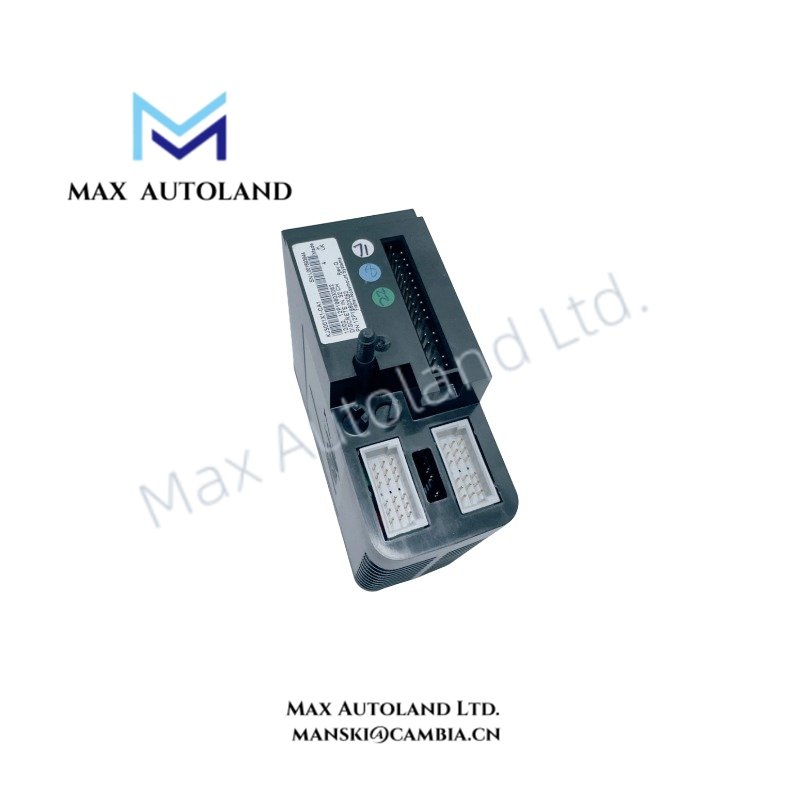

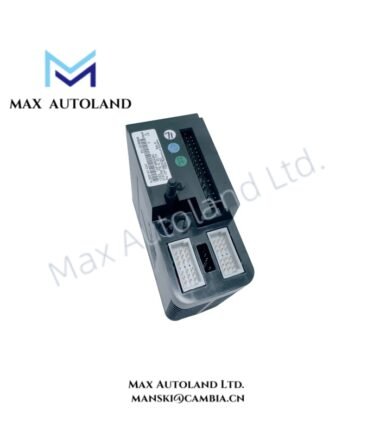

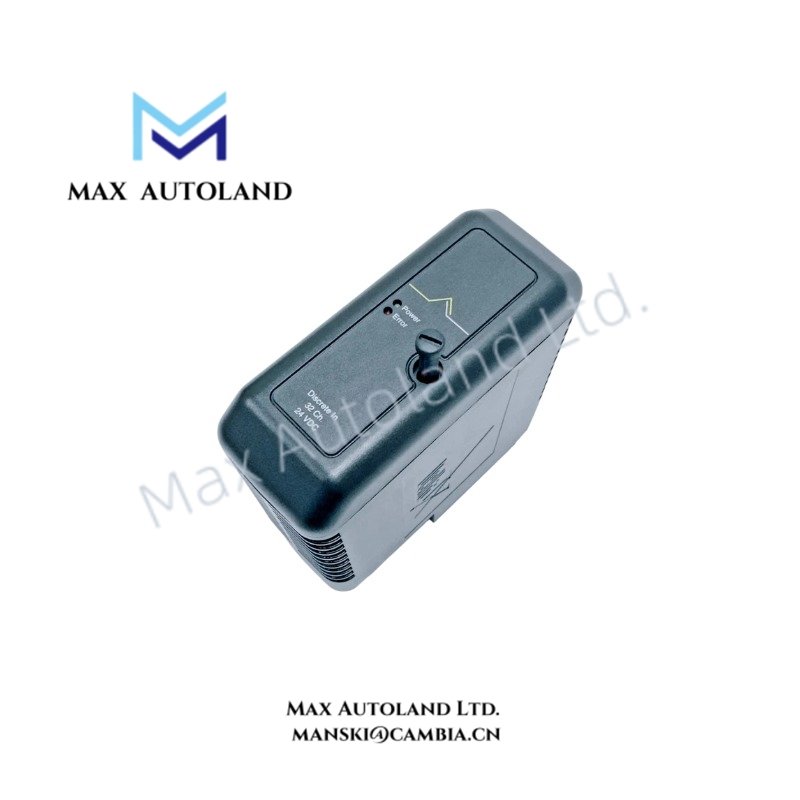

The Emerson KJ3001X1-CA1, also cataloged as the KJ3001X1-CA1 DI 32-Channel 24 VDC Dry Contact Card, operates as a dedicated digital input hardware component for discrete field signal acquisition within the Emerson DeltaV system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3001X1-CA1 |
| Brand | Emerson |
| Origin | United States |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | LocalBus power: 12 VDC at 75 mA; Bussed field power: 24 VDC at 150 mA |
| Product Type | Digital Input Card |
| Input Configuration | 32-Channel, 24 VDC Dry Contact Input |
| Field Circuit Rating | 24 VDC at 5 mA per channel |
| Hazardous Atmosphere Rating | II 3 G; EEx nA IIC T4 |
| Certification | Nemko No. 02ATEX431U |
| Terminal Block Key Position | B3 |
| Relative Humidity | 5 to 95% Non-Condensing |
| Ingress Protection | IP 20 |
| Shock Resistance | 10 g 1/2 Sinewave for 11 msec |
| Vibration Resistance | 1 mm Peak to Peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
Channel Isolation and DeltaV Digital Signal Processing
The Emerson KJ3001X1-CA1 processes 32 discrete dry contact input channels through the DeltaV I/O subsystem. The card accepts 24 VDC field signals and transfers input states through the LocalBus communication path.
Additionally, the module manages field circuit power distribution through bussed field power connections. The design supports Zone 2 hazardous area installation requirements and maintains compatibility with DeltaV terminal block keying systems.
The card does not require user calibration because it contains no adjustable measurement circuits. Furthermore, the module uses rotary keying to prevent incorrect pairing between the I/O card and terminal block after installation.
Frequently Asked Questions
Q: What type of field signals does the KJ3001X1-CA1 accept?
A: The KJ3001X1-CA1 accepts 24 VDC dry contact digital input signals through 32 independent channels.
Q: Can the KJ3001X1-CA1 be removed while system power remains energized?
A: The module can be removed or inserted with system power energized only under specified DeltaV installation conditions. Field power supplied through terminals or bussed field power must be removed before connection or removal.
Q: Does the KJ3001X1-CA1 require calibration or internal maintenance adjustment?
A: No. The unit contains no user-serviceable parts and does not require calibration during normal operation.
Field Installation Guidelines
- Verify that the terminal block key position matches the KJ3001X1-CA1 card configuration before installation.
- Remove field power from the terminal connection or bussed field power source before inserting or removing the module.
- Install the card according to DeltaV Zone 2 hazardous area installation instructions.
- Route field wiring separately from high-voltage power conductors to reduce electrical interference.
- Maintain proper cabinet grounding and follow site-specific shield termination practices.
- Inspect terminal connections and wiring diagrams located on the card side label before commissioning.
- Do not disassemble the module because it contains no field-replaceable internal components.
