Overview

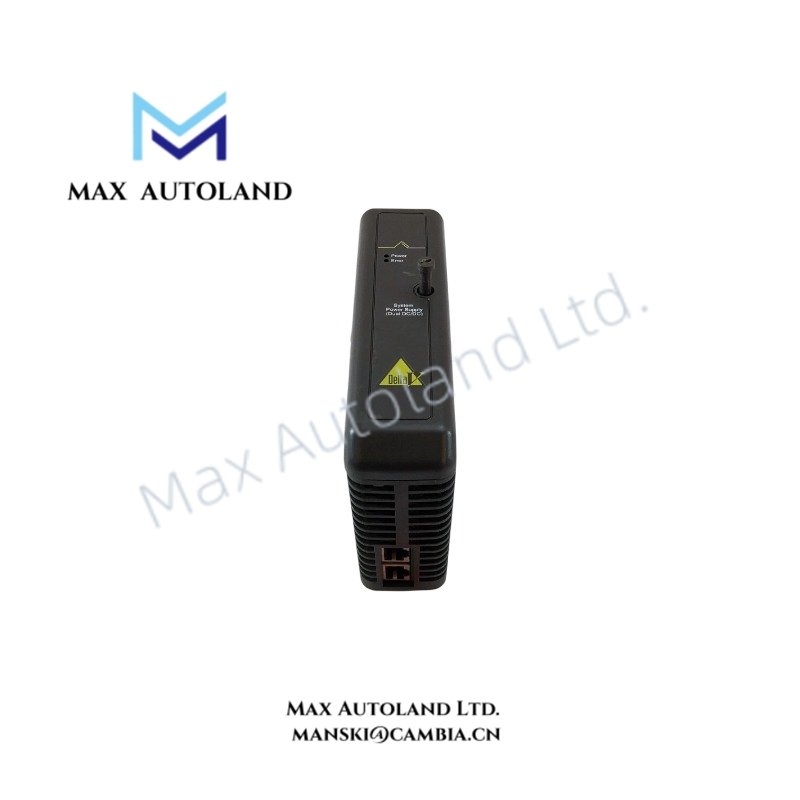

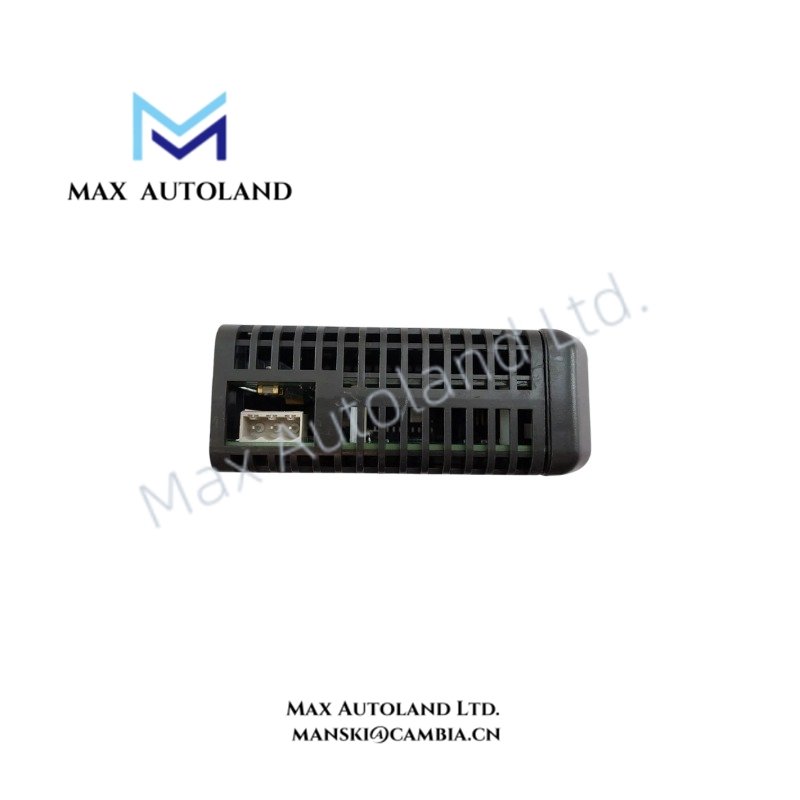

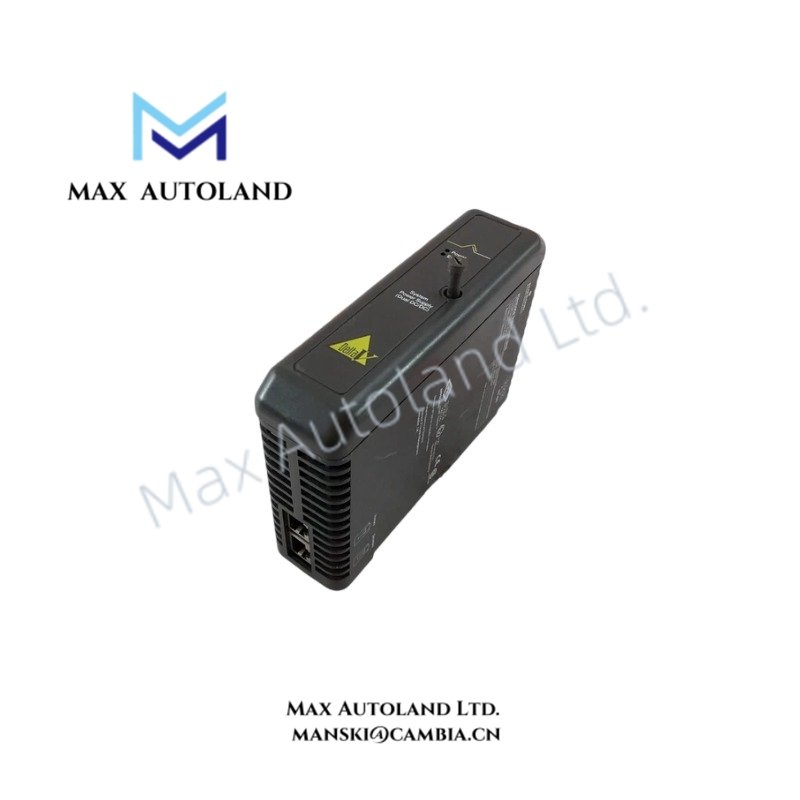

The Emerson KJ2004X1-BA1, also cataloged as the KJ2004X1-BA1 Remote Interface Unit (RIU), operates as a dedicated hardware component for local bus communication and power distribution within the Emerson DeltaV M-Series control system network.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2004X1-BA1 |
| Brand | Emerson |
| Product Type | Remote Interface Unit (RIU) |
| System Platform | DeltaV M-Series Distributed Control System |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 5 VDC at 300 mA max; 3.3 VDC at 500 mA max |
| Hazardous Area Rating | II 3G Ex nA nC IIC Gc |
| Certification | FM16ATEX0056U; FM21UKEX0017U |
| Protection Rating | IP 20 |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10g 1/2 Sinewave for 11 msec |
| Vibration Resistance | 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
DeltaV Local Bus Communication and Power Interface
The Emerson KJ2004X1-BA1 Remote Interface Unit manages electrical communication between DeltaV system components through the local bus interface. It receives regulated backplane power levels and supports two internal supply rails, including 5 VDC and 3.3 VDC outputs.
The RIU maintains local bus signal transmission while operating inside DeltaV M-Series hardware architectures. In addition, the module supports hazardous area installation requirements with Ex nA nC IIC Gc certification.
The unit does not provide user-adjustable parameters or field calibration functions. Therefore, maintenance activities focus on correct installation, environmental protection, and system-level diagnostics.
Channel Isolation and Industrial DCS Network Integration
The KJ2004X1-BA1 follows Emerson DeltaV hardware design practices for distributed control communication interfaces. The module provides electrical separation between field wiring environments and internal system communication paths through defined installation boundaries.
Unlike analog I/O modules that process 4-20 mA HART or FOUNDATION Fieldbus signals, this Remote Interface Unit focuses on local bus connectivity and hardware-level communication functions. Therefore, technicians must verify network topology, power loading, and hazardous area restrictions before installation.
The module requires controlled wiring practices to prevent external voltage sources from affecting the DeltaV communication network. The connected communication network must not connect to sources exceeding 60 VAC or 75 VDC under normal operating conditions.
Frequently Asked Questions
Q: Can the KJ2004X1-BA1 be removed while system power remains active?
A: No. The unit cannot be removed or inserted with system power energized unless the installation area is confirmed as non-hazardous.
Q: Does the KJ2004X1-BA1 require user calibration?
A: No. The Remote Interface Unit contains no calibration functions, and calibration is not required during normal operation.
Q: Can users repair internal components of the KJ2004X1-BA1?
A: No. The module contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
- Install the KJ2004X1-BA1 according to Emerson DeltaV M-Series hardware installation procedures and hazardous area requirements.
- Verify that the installation location complies with II 3G Ex nA nC IIC Gc hazardous atmosphere specifications before energizing the system.
- Confirm local bus wiring follows DeltaV network connection requirements and maintains separation from unauthorized voltage sources.
- Keep communication cables away from high-voltage power conductors to reduce electrical interference.
- Apply proper grounding practices for cabinet assemblies and verify enclosure protection before commissioning.
- Do not modify internal module components because the RIU contains no field-adjustable hardware.
- Remove and insert the unit only when system power is disabled or when the area classification permits energized maintenance.
