Overview

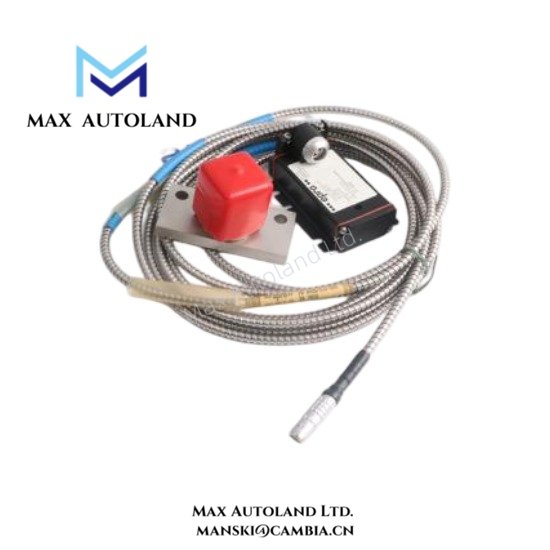

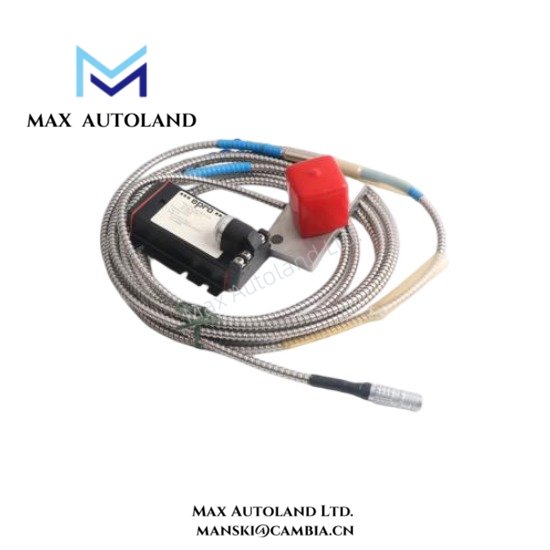

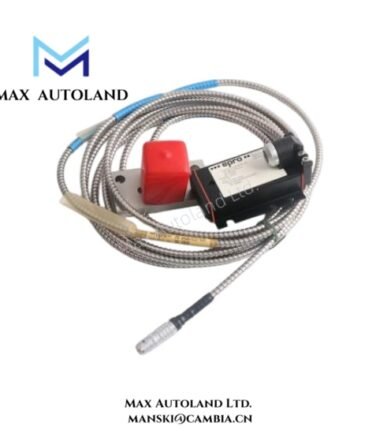

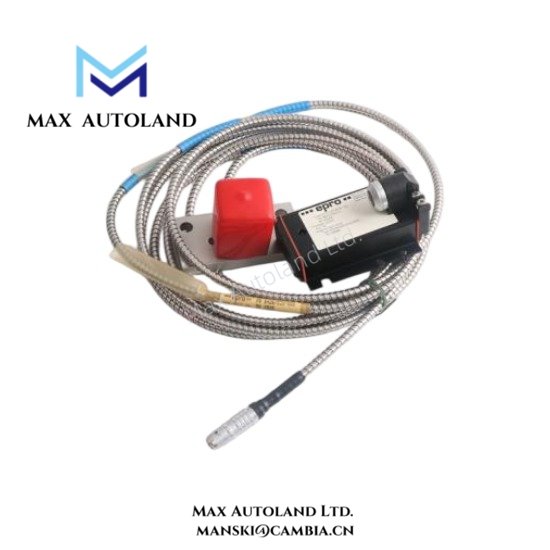

The PR6426/010-000 from Emerson Epro provides precise displacement measurement for large rotating equipment applications.
This 32mm eddy current sensor enables extended measurement ranges and stable monitoring under demanding industrial conditions.
Moreover, the PR6426/010-000 belongs to the PR6426 series, designed for heavy-duty turbomachinery diagnostics.
Therefore, engineers rely on this model for accurate shaft displacement and vibration analysis in critical systems.
Specification
| Parameter | Specification |
|---|---|
| Model | PR6426/010-000 |
| Manufacturer | Emerson Epro |
| Series | PR6426 Series |
| Sensor Type | Eddy Current Displacement Sensor |
| Probe Diameter | 32 mm |
| Probe Length | Approx. 100 mm typical |
| Measurement Principle | Non-contact eddy current sensing |
| Measurement Range | Up to 10 mm |
| Sensitivity | Approx. 4 V/mm |
| Frequency Response | 0 to 10 kHz |
| Initial Air Gap | Approx. 2.5 mm |
| Cable Length | 5 m standard, configurable |
| Output Signal | Requires CON021 or CON041 module |
| Resolution | ≤ 5 µm |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Protection Rating | IP65 |
| Housing Material | Stainless steel |
| Probe Tip Material | PEEK high-performance polymer |
| Cable Type | Shielded PTFE coaxial cable |
| Connector Type | LEMO connector or terminal connection |
| Minimum Target Diameter | ≥ 80 mm shaft |
| Weight | Approx. 600–1200 g depending on configuration |
| Shock Resistance | Up to 50 g |
| Vibration Resistance | Up to 20 g |
| Energy Storage | None, external module powered |
| Mounting Thread | Large threaded industrial mounting |
| Compatibility | Emerson Epro CON021 / CON041 modules |
| Applications | Turbines, generators, compressors, heavy rotating machinery |
FAQ
Q1: Is the PR6426/010-000 brand new and original?
Yes, the PR6426/010-000 is 100% brand new and original from Emerson Epro.
Q2: Do you have this model in stock?
Yes, we have PR6426/010-000 in stock and ready for fast processing.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which logistics services do you use?
We typically use DHL and other major international carriers for fast delivery.
Q5: What measurement range does this sensor support?
The PR6426/010-000 supports up to 10 mm displacement measurement for large shaft monitoring.
