Overview

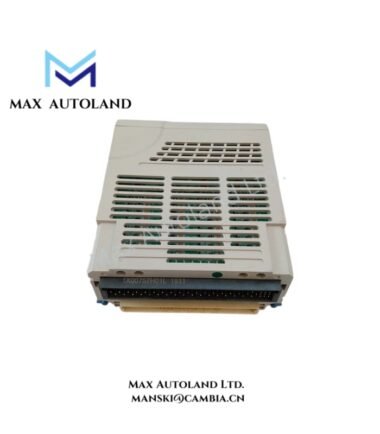

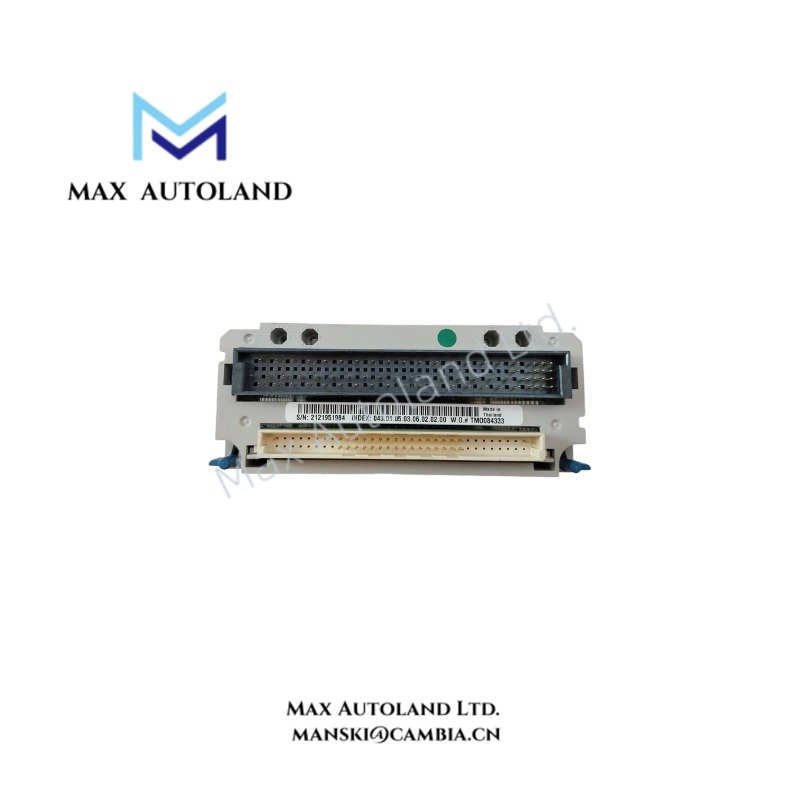

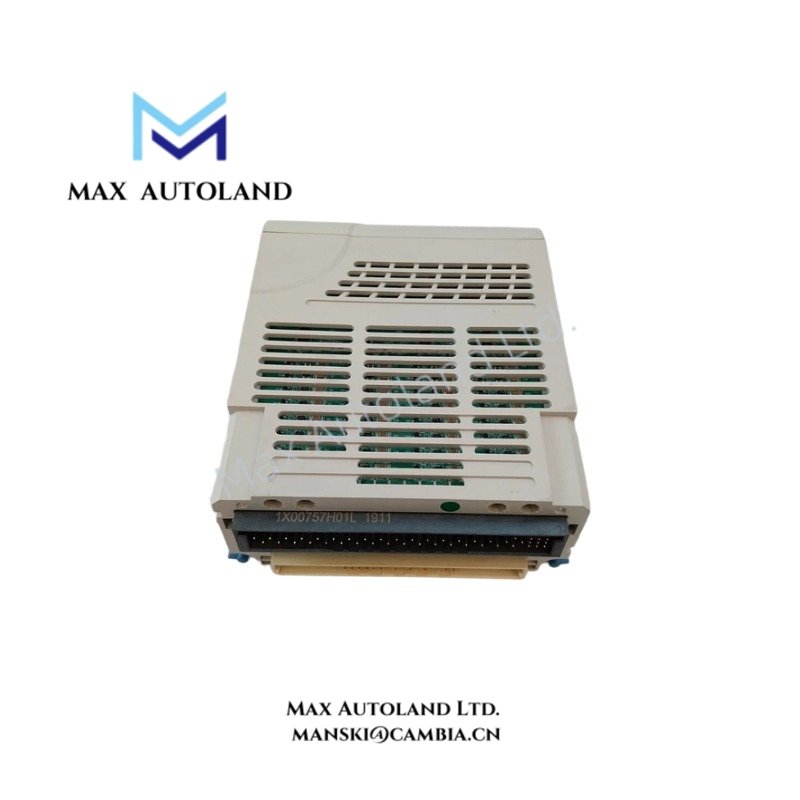

Configured for analog signal acquisition in the Emerson Ovation control system, the Emerson 5X00605G01 (5X00605G01 Analog Input Module) provides direct physical/electrical execution for 32-channel analog input measurement and data conversion.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00605G01 |
| Brand | Emerson |
| Product Type | Analog Input Module |
| System Platform | Emerson Ovation DCS |
| Origin | USA |
| Weight | 0.34 kg |
| Dimensions | 12 x 5 x 16.3 cm (estimated shipping size) |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | Typically 1-2 W per channel |
| Input Channels | 32 analog input channels |
| Signal Types | 4-20 mA, 0-20 mA, 0-10 VDC, 0-5 VDC, +/-10 VDC |
| Signal Conversion | 16-bit ADC resolution |
| Accuracy | Typically +/-0.1% |
| Voltage Input Range | +/-10 VDC, 0-10 VDC, or 0-5 VDC |
| Current Input Range | 4-20 mA, 0-20 mA |
| Tariff Code | 8537101190 |
Process Signal Interface and Channel Isolation
The Emerson 5X00605G01 Analog Input Module supports direct measurement of industrial current and voltage signals through 32 analog input channels. The module converts field analog signals using a 16-bit analog-to-digital converter for control system processing.
For Emerson Ovation DCS integration, the module supports process instrumentation loops based on 4-20 mA signal standards. Moreover, channel-to-channel isolation design is applied to reduce signal interference between individual measurement points and improve field signal integrity.
The module architecture supports analog acquisition from transmitters and sensors requiring voltage or current input measurement. Therefore, proper field wiring separation and shield grounding practices are required during installation.
Frequently Asked Questions
Q: What input signal types are supported by the Emerson 5X00605G01?
A: The module supports analog current inputs including 4-20 mA and 0-20 mA, as well as voltage inputs including +/-10 VDC, 0-10 VDC, and 0-5 VDC.
Q: What is the conversion resolution of the 5X00605G01 Analog Input Module?
A: The module uses a 16-bit ADC for analog signal conversion and measurement data processing.
Q: Does the module require special wiring practices for field signals?
A: Field wiring should follow industrial analog signal installation practices, including proper cable shielding, grounding, and separation from high-voltage power conductors.
Field Installation Guidelines
Install the Emerson 5X00605G01 module in the designated Ovation I/O rack position according to system hardware documentation.
Use shielded cables for analog field connections where required by the instrumentation design. Connect cable shields according to site grounding standards to reduce electrical noise coupling.
Separate analog signal wiring from high-current switching circuits and power cables to minimize electromagnetic interference.
Verify field transmitter output ranges before commissioning. Confirm that configured input channels match the connected 4-20 mA or voltage signal characteristics.
