Overview

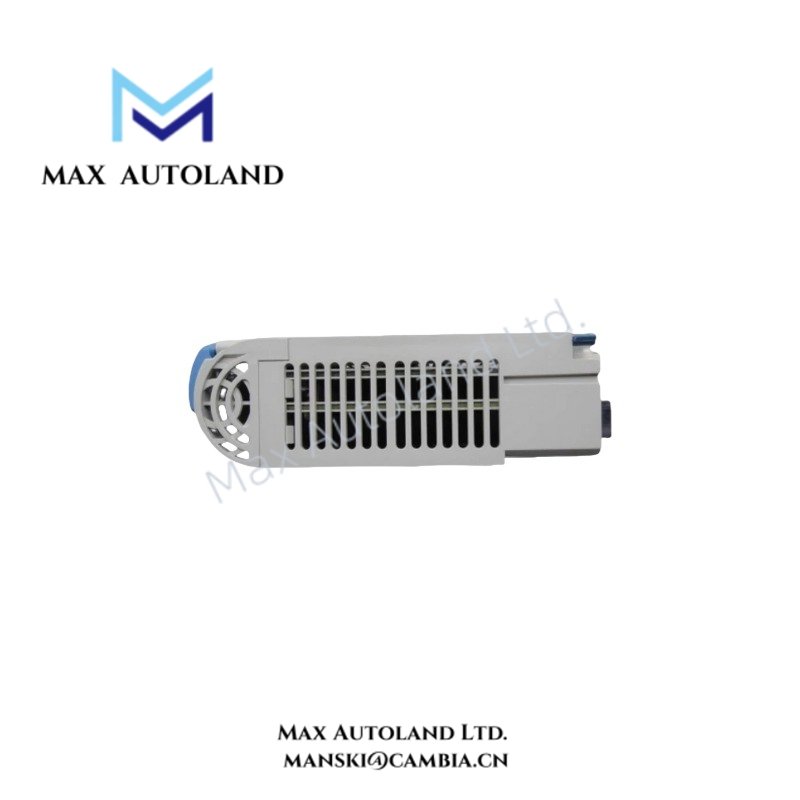

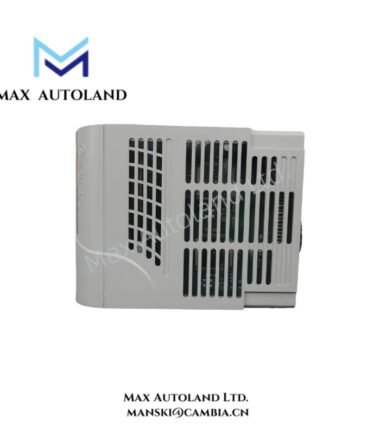

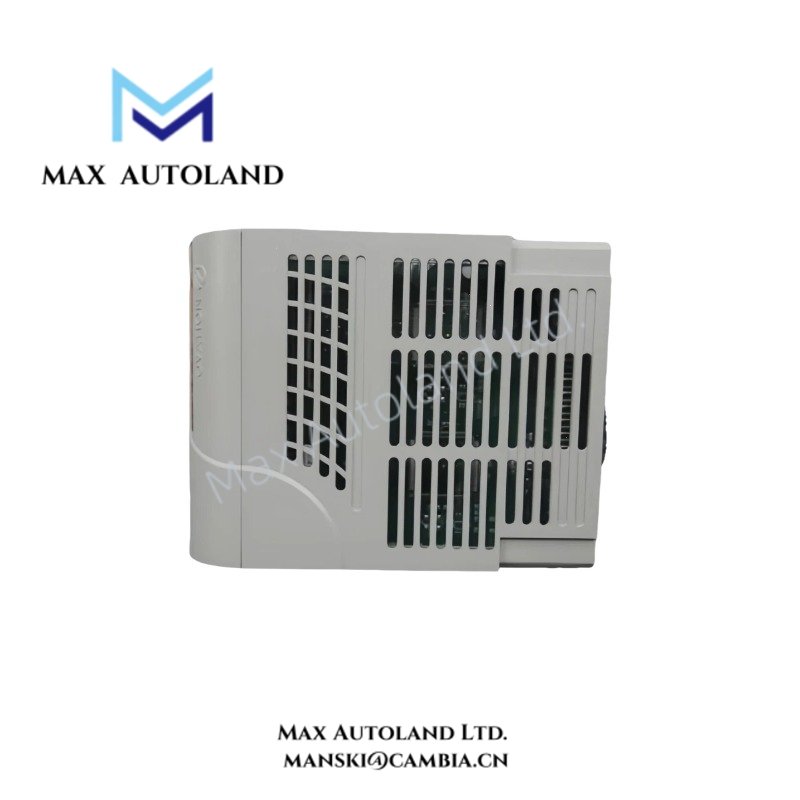

The Emerson 5X00419G01, also cataloged as the 5X00419G01 Ethernet Link Controller, operates as a dedicated hardware component for Ethernet-based data communication within Emerson Ovation DCS networks. The module provides physical network connectivity between system nodes through RJ45 interfaces and supports IEEE 802.3 Ethernet communication with TCP/IP and UDP data transport.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00419G01 |
| Brand | Emerson |
| Series | Ovation |
| Product Type | Ethernet Link Controller |
| Compatibility | Emerson Ovation Control Systems |
| Communication Protocols | IEEE 802.3, TCP/IP, UDP |
| Data Transfer Rate | 10/100 Mbps |
| Interface / Connectors | RJ45 ports |
| Power Consumption | <= 5 W |
| Operating Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approx. 140 mm x 80 mm x 27 mm; physical layout may vary |
| Weight | Approx. 0.25 kg |
| Certifications | CE, UL |
| Core Function | Ethernet communication and data transfer between Ovation system nodes |
DCS Network Communication Characteristics
The 5X00419G01 supports Ethernet-based communication between compatible Emerson Ovation system components. Its 10/100 Mbps network interface uses RJ45 physical connections and supports TCP/IP and UDP communication protocols.
In Emerson process control architectures, network communication hardware operates separately from field signal interfaces such as 4-20 mA HART loops. Therefore, field instrumentation signals require the appropriate Ovation I/O hardware before process data enters the controller and Ethernet communication path. Installation should also maintain separation between network cabling and high-energy power conductors to reduce electrical interference.
Frequently Asked Questions
Q: Does the Emerson 5X00419G01 directly process 4-20 mA field signals?
A: No direct 4-20 mA input or output capability is specified in the provided data. The module is identified as an Ethernet Link Controller for network communication.
Q: What physical network interface does the module use?
A: The provided specifications identify RJ45 ports and support for IEEE 802.3 Ethernet communication at 10/100 Mbps.
Q: Can the module operate in Emerson Ovation control systems?
A: Yes. The provided compatibility information identifies Emerson Ovation Control Systems as the intended system platform. Final compatibility should be verified against the installed Ovation hardware configuration and system documentation.
Field Installation Guidelines
Install the 5X00419G01 in the designated location specified for the Emerson Ovation hardware assembly. Verify that the module and associated system hardware are de-energized when installation procedures require power removal.
Connect Ethernet cables to the specified RJ45 interfaces and avoid excessive bending, tension, or compression of network cables. Route Ethernet wiring separately from high-voltage and high-current conductors where practical.
Inspect connectors and mating interfaces for contamination or mechanical damage before installation. Maintain the grounding and shielding arrangement specified for the complete Ovation cabinet or control system. After installation, verify physical network connection status and communication with the associated system nodes.
