Overview

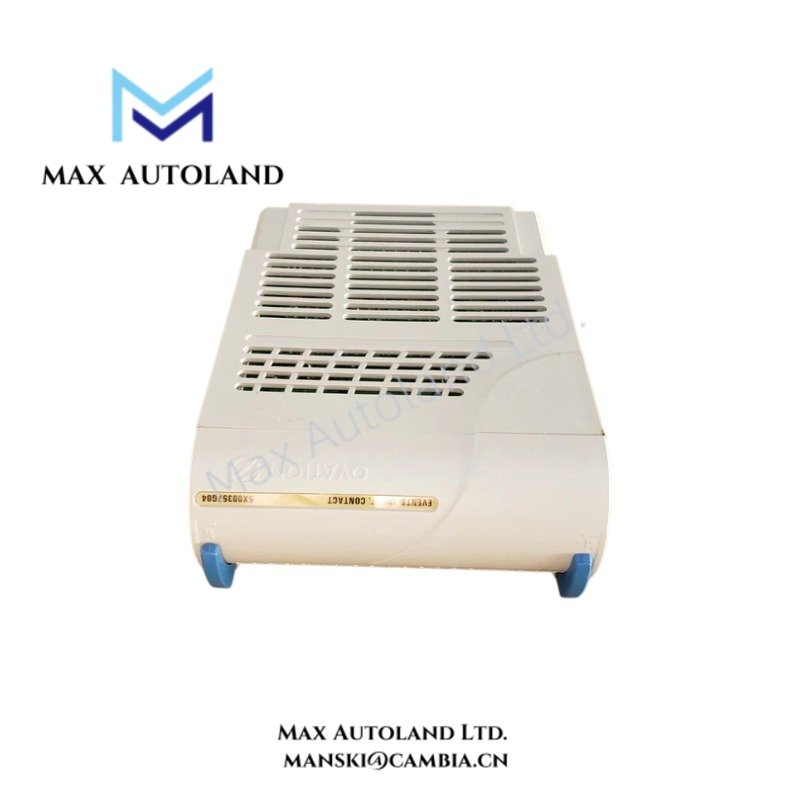

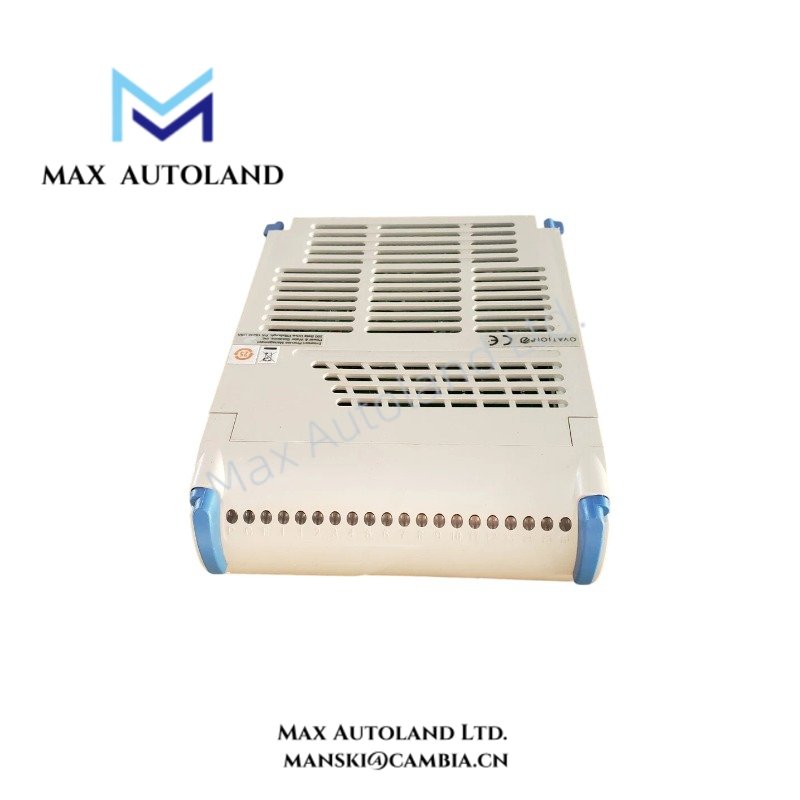

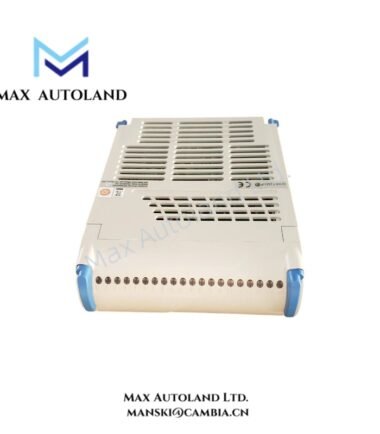

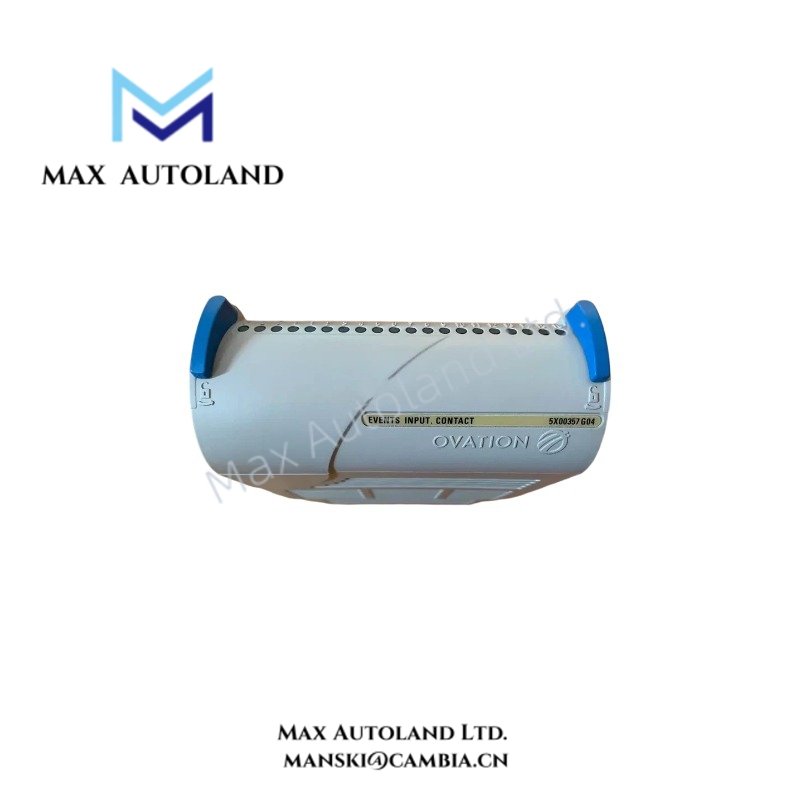

The Emerson 5X00357G04, also cataloged as the 5X00357G04 Events Input Contact Module, operates as a dedicated hardware component for detecting discrete contact state changes and transferring event information within the Emerson Ovation DCS architecture. The module accepts 48 VDC on-card contact inputs and supports enhanced digital input functions associated with Sequence of Events (SOE) monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00357G04 |
| Brand | Emerson |
| Series / Platform | Ovation DCS |
| Module Type | Events Input Contact Module |
| Product Parameters | SOE, 48 VDC on-card input contact, enhanced digital input EMOD |
| Input Type | Discrete contact input |
| Contact Configuration | Dry contact inputs; application support for NO and NC contacts depends on system configuration |
| Input Voltage | 48 VDC on-card input |
| Primary Function | Sequence of Events and discrete contact monitoring |
| System Compatibility | Emerson Ovation DCS I/O architecture |
| Module Architecture | EMOD |
| Mounting | Modular I/O rack card slot |
| Weight | 0.32 kg |
| Dimensions | 12.1 x 5.2 x 16.5 cm estimated shipping size |
| Core Performance | Detects discrete contact state changes for event and status monitoring |
DCS Discrete Signal Isolation and Event Processing
The Emerson Ovation platform processes field contact signals through dedicated I/O hardware before transferring status information to the control system. For the 5X00357G04, the 48 VDC on-card sensing arrangement supports contact-state detection without defining an external loop power requirement in the supplied data.
Isolation between field circuits and internal electronics helps separate external electrical disturbances from system-side processing. Installation should maintain separation between discrete field wiring and circuits carrying higher electrical noise. The module supports digital event acquisition functions associated with SOE applications, including breaker status, limit switch feedback, alarm contacts, and equipment state signals.
Frequently Asked Questions
Q: What type of field signal does the Emerson 5X00357G04 process?
A: The 5X00357G04 processes discrete contact input signals using a 48 VDC on-card input sensing configuration. It is intended for monitoring contact state changes and digital status conditions.
Q: Is the 5X00357G04 used for Sequence of Events applications?
A: Yes. The supplied product parameters identify the module as an SOE enhanced digital input EMOD. It can monitor discrete state transitions for event and status recording within the Ovation architecture.
Q: Can the module directly connect to field contacts?
A: The module is specified for contact input monitoring. Field wiring must follow the applicable Emerson Ovation I/O documentation, terminal arrangement, voltage classification, grounding requirements, and site electrical practices.
Field Installation Guidelines
Install the Emerson 5X00357G04 only in the designated Ovation I/O rack position and verify module orientation before insertion. De-energize or isolate equipment as required by the applicable plant maintenance procedure.
Route discrete contact wiring separately from high-power conductors, variable-frequency drive cables, and other high-noise circuits. Where shielded cable is required by the installation design, terminate the shield according to the plant grounding scheme and avoid unintended multiple-point grounding.
Verify the field contact voltage and wiring configuration before connecting the circuit to the module. Confirm terminal identification, contact state logic, and SOE signal assignment against the applicable Ovation system documentation. After installation, perform functional checks on each connected event or status signal before returning the I/O assembly to service.
