Overview

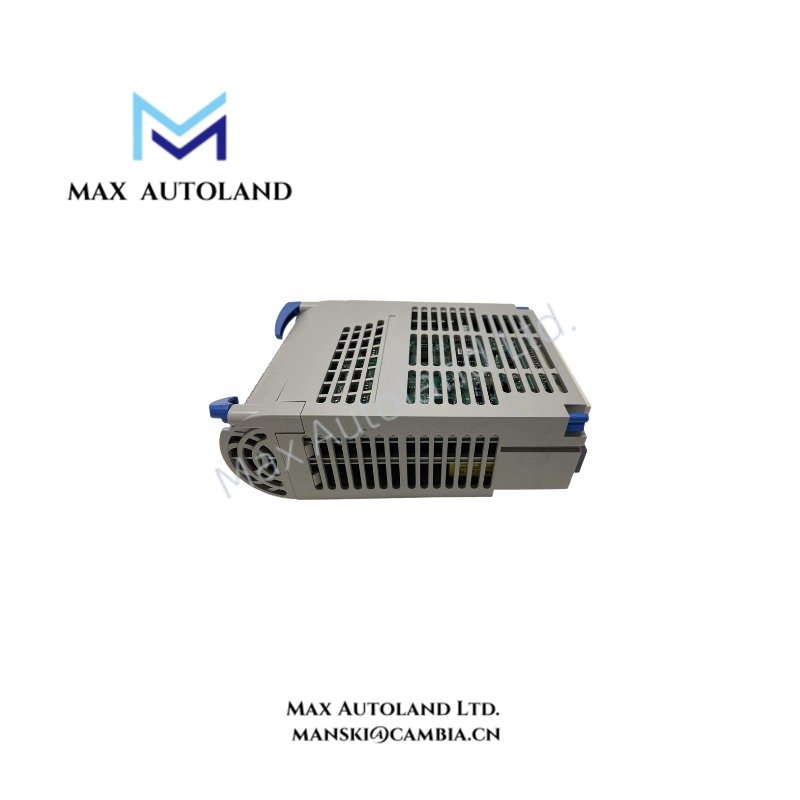

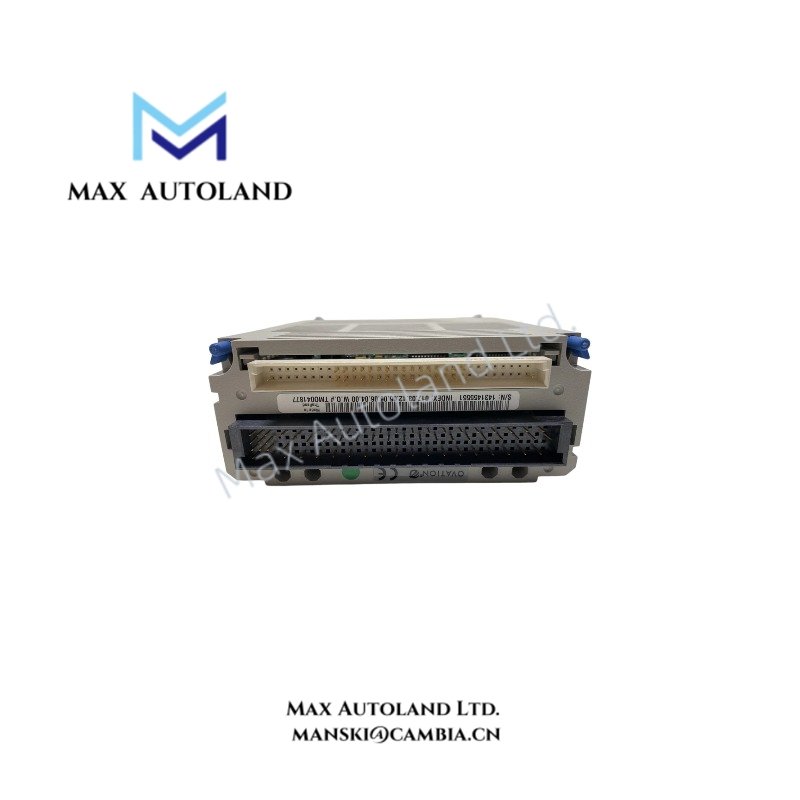

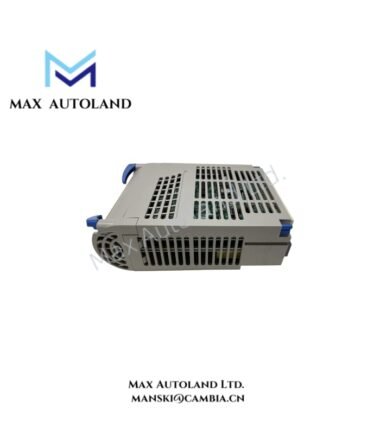

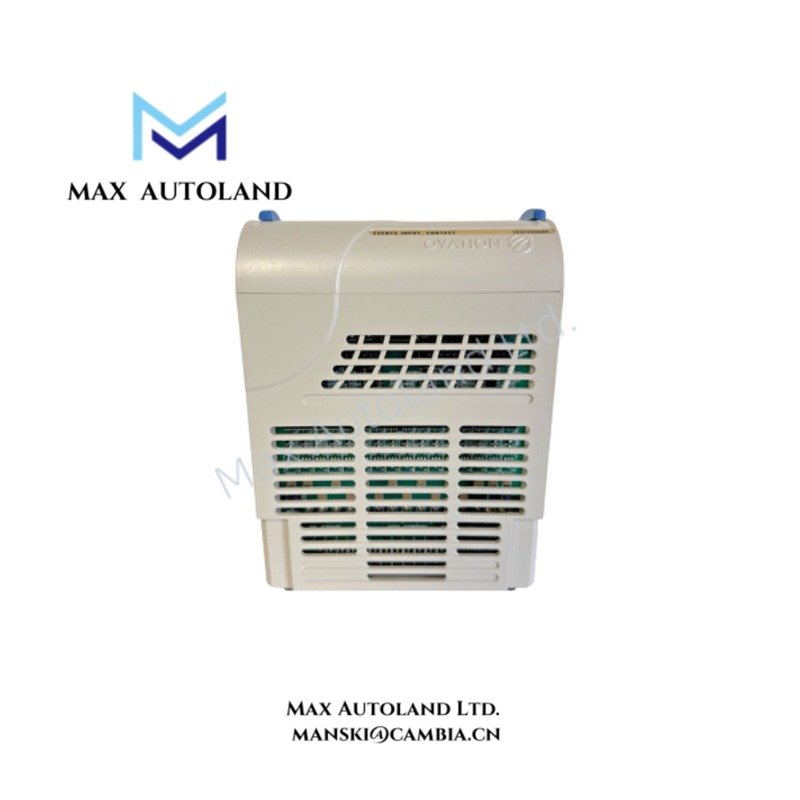

Configured for discrete field signal acquisition in the Emerson Ovation DCS I/O subsystem, the Emerson 5X00411G01 (5X00411G01 Digital Input Electronic Module) provides direct electrical signal processing for digital status monitoring applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00411G01 |
| Brand | Emerson |
| Series | Ovation DCS |
| Module Type | Digital Input Electronic Module |
| Origin | USA |
| Weight | Approximately 0.3 kg – 1.2 kg depending on configuration |
| Dimensions | Not specified in available technical references |
| Operating Temp | -20 deg C to +70 deg C typical |
| Power Consumption | Approximately 2.5 W typical |
| Input Type | Digital / Discrete Input |
| Number of Channels | 16 channels |
| Input Voltage | 24 VDC nominal |
| Input Configuration | 24 VDC current-sinking digital inputs |
| Input Signal | On / Off discrete field signals |
| Isolation | Channel and backplane electrical isolation |
| Mounting Type | Ovation I/O backplane mounting |
| Communication Interface | Ovation I/O bus |
| Diagnostics | Module status and channel monitoring |
DCS Signal Interface and Isolation Characteristics
The 5X00411G01 processes discrete field signals and transfers digital status information to Ovation controllers through the system I/O architecture. The module performs input signal conditioning between field devices and controller logic.
For Emerson Ovation systems, digital input modules are applied within DCS signal acquisition structures that require defined electrical separation between field wiring and controller electronics. Channel-to-channel isolation reduces interference between individual input circuits, while backplane communication provides data exchange with the Ovation controller layer.
The module is designed for digital monitoring points such as switches, alarms, interlocks, and equipment status contacts. It operates as an input interface between external devices and control execution functions.
Frequently Asked Questions
Q: What field signals can the Emerson 5X00411G01 process?
A: The module processes discrete digital input signals, including 24 VDC on/off status signals from field contacts, switches, alarms, and interlock devices.
Q: Does the 5X00411G01 require a separate communication interface?
A: No. The module communicates through the Emerson Ovation I/O backplane connection and exchanges input data with the controller system.
Q: What installation factors affect digital input signal quality?
A: Proper field wiring separation, shield grounding practices, and correct terminal connections are required to reduce electrical interference and signal instability.
Field Installation Guidelines
- Install the module only in compatible Emerson Ovation I/O rack or cabinet positions.
- Verify field input voltage levels before connecting external digital signals.
- Maintain separation between low-level signal wiring and high-power cables.
- Connect cable shields according to the cabinet grounding design requirements.
- Confirm module seating and backplane connector engagement before system startup.
- Check diagnostic indicators after installation to verify module operating status.
- Follow Emerson Ovation hardware manuals for configuration, addressing, and maintenance procedures.
