Overview

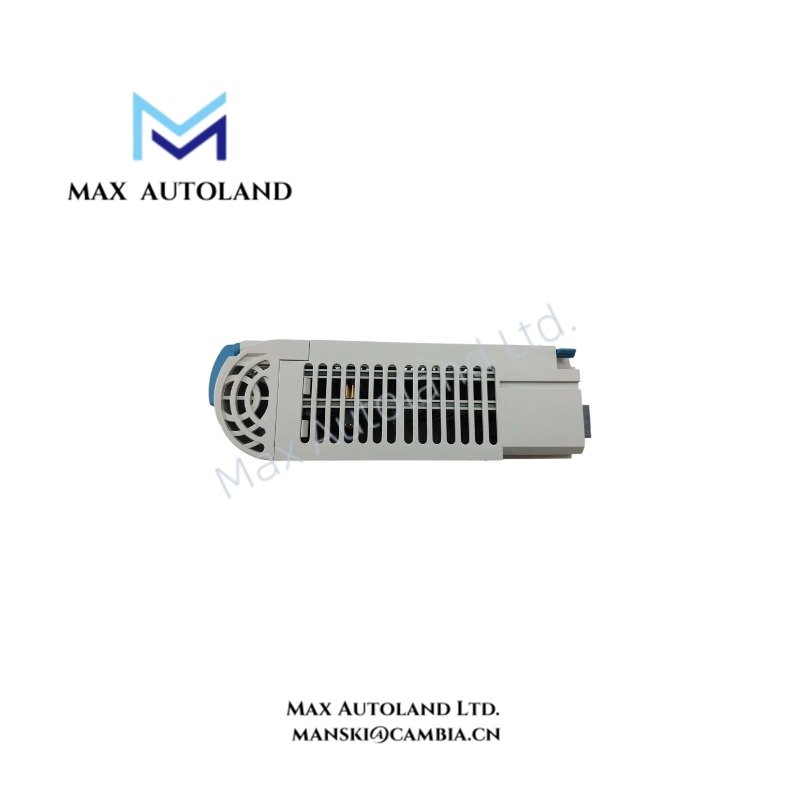

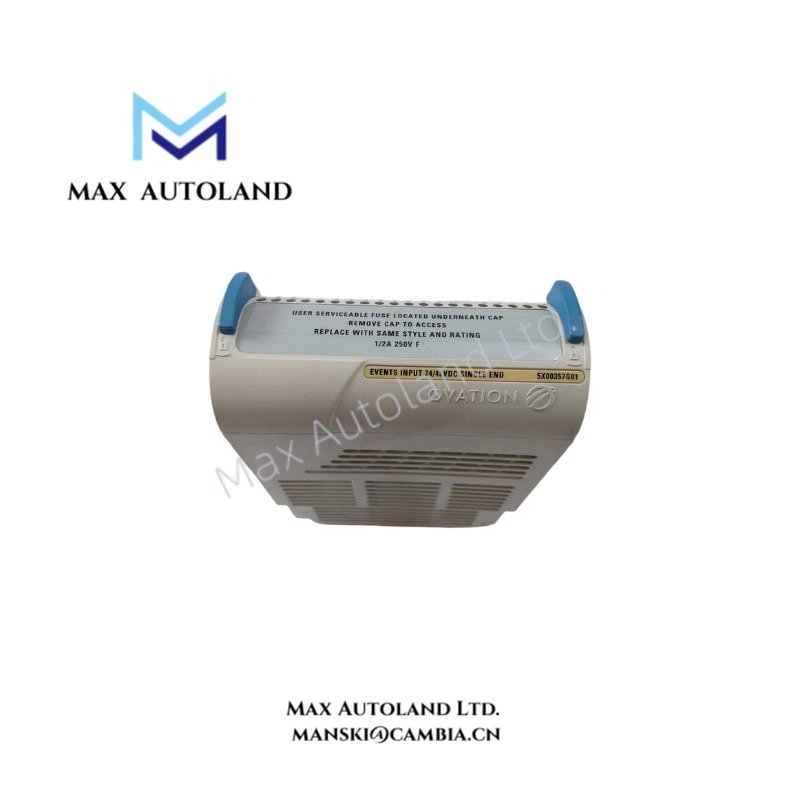

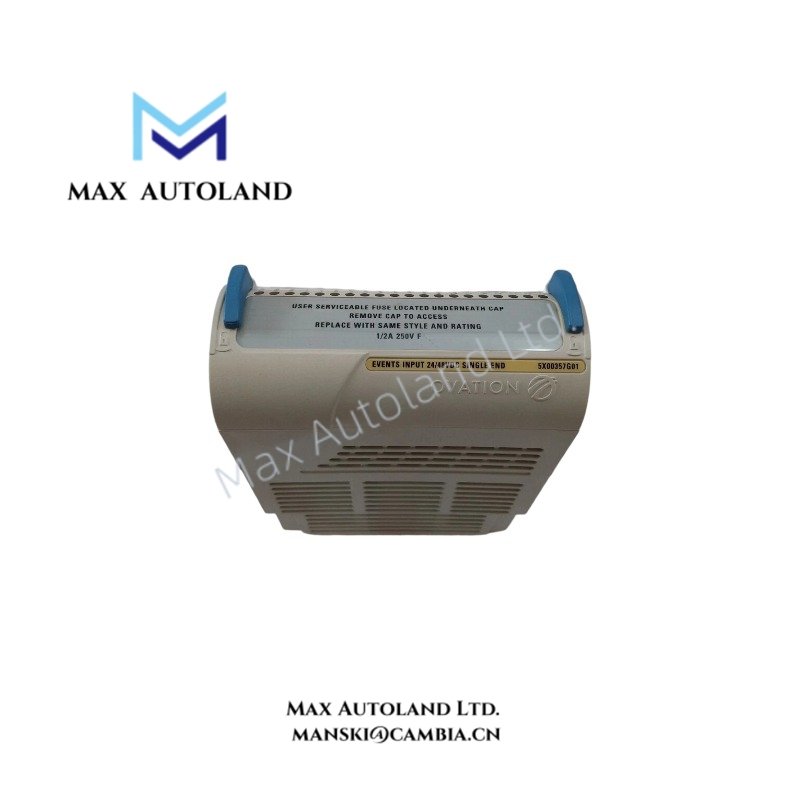

Configured for digital event acquisition in Emerson Ovation DCS systems, the Emerson 5X00357G01 (5X00357G01 Events Input Module) provides direct physical signal monitoring for 24 VDC and 48 VDC single-ended field inputs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00357G01 |
| Brand | Emerson |
| Origin | USA |
| Product Type | Digital Event Input Module |
| System Platform | Emerson Ovation DCS |
| Input Type | 24 VDC / 48 VDC Single End Digital Input |
| Input Voltage | 24 VDC, 48 VDC |
| Output Signal | Digital status data to Ovation controller |
| Communication Interface | Ovation system backplane communication |
| Control Function | Event monitoring and status acquisition |
| Display Interface | Not applicable |
| Dimensions | 120 mm x 80 mm x 40 mm |
| Weight | Not specified |
| Operating Temp | 10 deg C to 60 deg C |
| Power Consumption | Not specified |
| Mounting Type | Ovation controller rack installation |
Process Signal Interface and DCS Input Characteristics
The Emerson 5X00357G01 is designed for event input acquisition within the Ovation control architecture. It receives discrete field signals from external devices and transfers input status information to the controller through the system communication structure.
The module supports digital monitoring applications requiring 24 VDC and 48 VDC field signal compatibility. Channel signal processing is configured for event detection, status changes, and sequence monitoring functions.
For Emerson process control systems, digital input modules are commonly integrated with DCS signal conditioning methods, including channel-to-channel isolation and industrial field wiring practices. These interfaces support connection with distributed field devices using standard discrete signal loops.
Frequently Asked Questions
Q: What type of field signals can the 5X00357G01 process?
A: The module processes 24 VDC and 48 VDC single-ended digital input signals from field devices.
Q: Is the 5X00357G01 compatible with Emerson Ovation systems?
A: Yes. The module is designed for integration with the Emerson Ovation DCS hardware platform.
Q: What installation considerations apply to field wiring?
A: Field wiring should follow standard industrial practices, including proper cable routing, signal separation from high-voltage conductors, and appropriate grounding of cable shields where required.
Field Installation Guidelines
Install the 5X00357G01 module in the designated Emerson Ovation rack position according to the system hardware configuration.
Verify that the field input voltage level matches the module input specification before connection. Maintain separation between digital signal wiring and power cables to reduce electrical interference.
Use shielded cables when required by the site grounding standard. Connect cable shields according to plant grounding procedures and avoid creating unintended ground loops.
Check terminal connections, rack seating, and controller communication status after installation. Confirm that the configured input channels correctly report field device status before placing the system into operation.
