Overview

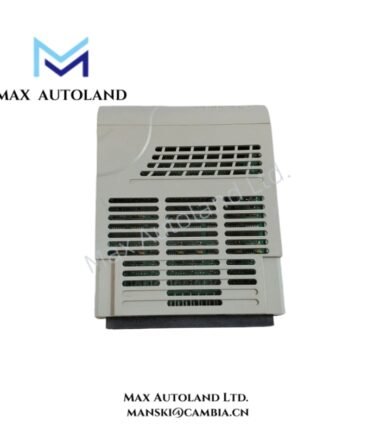

Configured for high-speed discrete event acquisition in the Emerson Ovation Distributed Control System, the Emerson 5X00357G02 (5X00357G02 Enhanced Events Input Module) provides direct physical and electrical execution. The module receives up to 16 differential digital input signals from field contacts and devices, detects state changes, and supports time-stamped Sequence of Events recording within the Ovation I/O architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00357G02 |
| Brand | Emerson |
| Product Family | Emerson Ovation Control Systems |
| Module Type | Enhanced Events Input / Sequence of Events Digital Input Module |
| Input Channels | 16 differential digital input channels |
| Signal Type | Discrete On/Off contacts or digital signal inputs |
| Input Voltage / Range | Typically configured for 24 to 48 VDC discrete signals |
| Event Processing | High-speed state change detection and event capture |
| Time-Stamping | Supported for Sequence of Events recording |
| Diagnostics | On-board fault monitoring and status LED indicators |
| Mounting | Backplane or chassis mounted within Ovation I/O base units |
DCS Digital Input and Channel Isolation Characteristics
The Emerson 5X00357G02 processes discrete field signals through differential input circuits intended to support signal integrity in industrial control installations. Each input channel receives field status information and transfers the detected state to the Ovation control architecture for event processing.
For digital event applications, field wiring practices directly affect input performance. Therefore, installers should separate discrete signal wiring from high-energy conductors and maintain correct shielding and grounding practices. Channel isolation characteristics, where implemented by the associated Ovation I/O architecture, help limit the influence of external electrical disturbances between field circuits and system electronics.
The module operates as a digital event acquisition interface rather than a 4-20 mA HART measurement device. Consequently, its primary function is to detect and record discrete state transitions from switches, contacts, alarms, and compatible digital field signals.
Frequently Asked Questions
Q: Does the Emerson 5X00357G02 process analog 4-20 mA signals?
A: No. The 5X00357G02 is specified as an Enhanced Events Input and digital input module for discrete On/Off signals and event state changes.
Q: What is the purpose of Sequence of Events time-stamping?
A: Time-stamping records the timing of detected input state changes so the Ovation system can sequence and analyze multiple events during operational disturbances or equipment transitions.
Q: Can the module be installed outside the Ovation I/O architecture?
A: The module is designed for backplane or chassis installation within compatible Emerson Ovation I/O base units. Installation should follow the applicable Ovation hardware configuration requirements.
Field Installation Guidelines
Install the Emerson 5X00357G02 only in a compatible Ovation I/O base unit or chassis. Before inserting or removing the module, follow the applicable system maintenance and electrical isolation procedures.
Route discrete input wiring separately from motor feeders, variable-frequency drive output cables, and other high-energy conductors. In addition, use appropriate shielding practices where the field installation requires noise control. Terminate cable shields according to the plant grounding design and avoid creating unintended ground loops.
Verify field signal polarity, voltage compatibility, terminal assignments, and channel mapping before energizing the I/O assembly. After installation, confirm the module status indicators and perform functional testing for each connected event input and associated Ovation system point.
