DO2401 Digital Output Module Triconex

Overview

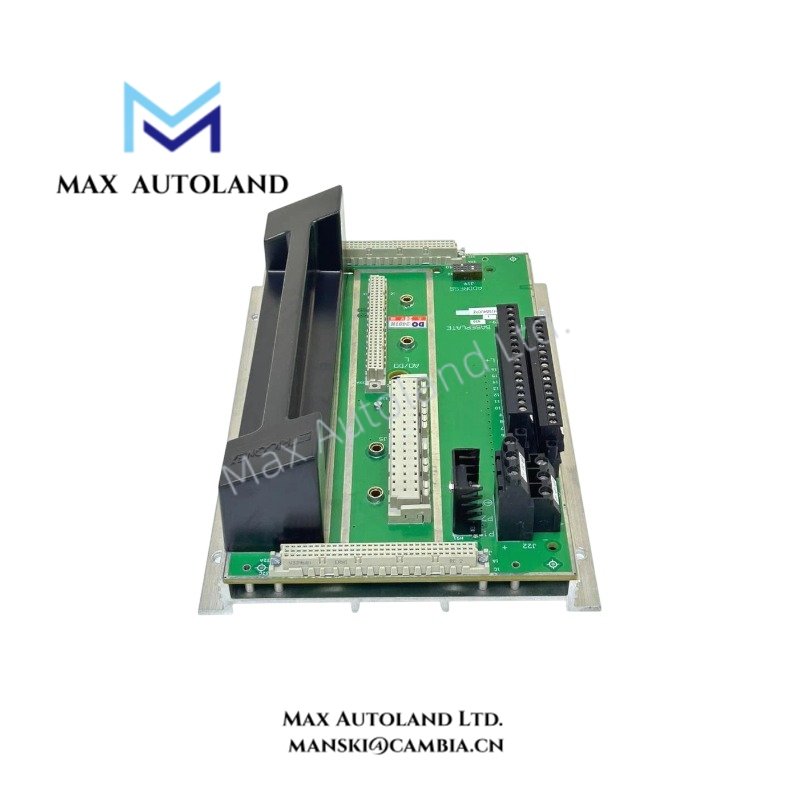

Triconex DO2401 Digital Output Module

Configured for 24-channel digital output execution in Triconex safety instrumented systems, the Triconex DO2401 7400219-030 (DO2401 Digital Output Module) provides direct electrical switching to connected field loads. The module uses 24 VDC nominal output voltage and supports TMR-based safety control architecture.

Suffix Breakdown & Model Matrix

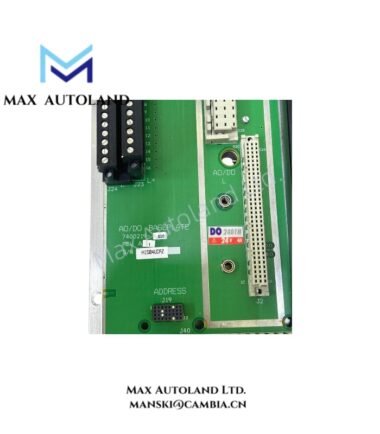

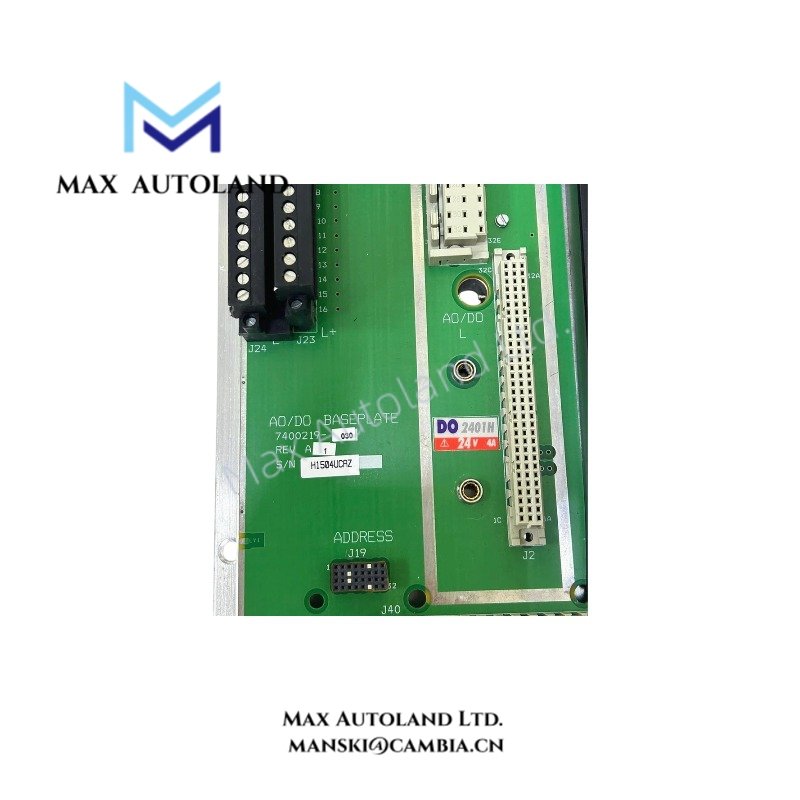

The supplied information associates DO2401 with part number 7400219-030 and describes the hardware as a Digital Output Module / Baseplate Assembly. The supplied data does not define a separate suffix coding scheme for 7400219-030; therefore, no additional model decomposition is assigned.

Hardware Specifications

TMR Safety Output Architecture

The DO2401 operates within a Triconex TMR architecture. Redundant processing paths allow the safety controller to evaluate output commands through the configured safety-control structure before field actuation.

The supplied data specifies 24 digital output channels with a nominal 24 VDC output and up to 2 A per channel, depending on configuration. Therefore, field-load current must match the applicable module and system configuration.

Optical isolation separates the output interface from associated electrical circuits. The specified diagnostics monitor conditions including open circuits, short circuits and channel discrepancies. LED indicators provide local status information for maintenance and commissioning.

For SIL 3 applications, engineers must maintain the complete certified system configuration. The DO2401 module alone should not be treated as independent evidence of a complete SIL 3 safety function.

Frequently Asked Questions

Q: How many digital output channels does the DO2401 provide?
A: The supplied specification identifies 24 digital output channels.

Q: What output voltage and current does the module support?
A: The nominal output voltage is 24 VDC. The supplied data specifies up to 2 A maximum per channel, depending on configuration.

Q: Does the supplied specification identify hot-swapping capability?
A: Yes. The supplied information identifies rack-mounted slot installation with hot-swapping capability. Follow the applicable Triconex system procedure before removing or inserting the module.

Field Installation Guidelines

Install the DO2401 in the designated rack slot and confirm the module orientation before insertion. Verify the part number and installed hardware configuration against the project documentation.

Before connecting field wiring, isolate the relevant power sources according to the approved maintenance procedure. Confirm the 24 VDC output circuit polarity and verify that each connected load remains within the specified current configuration.

Route output wiring separately from high-energy power conductors where required by the cabinet wiring standard. Maintain the established grounding and shielding arrangement for the safety system.

After installation, inspect the module seating, connectors and field terminals. Check each output channel for correct termination and verify that no conductor remains loose or shorted.

Apply power according to the system commissioning procedure. Check the LED status indications and diagnostic information, then test each affected output path under controlled conditions before returning the safety function to service.
