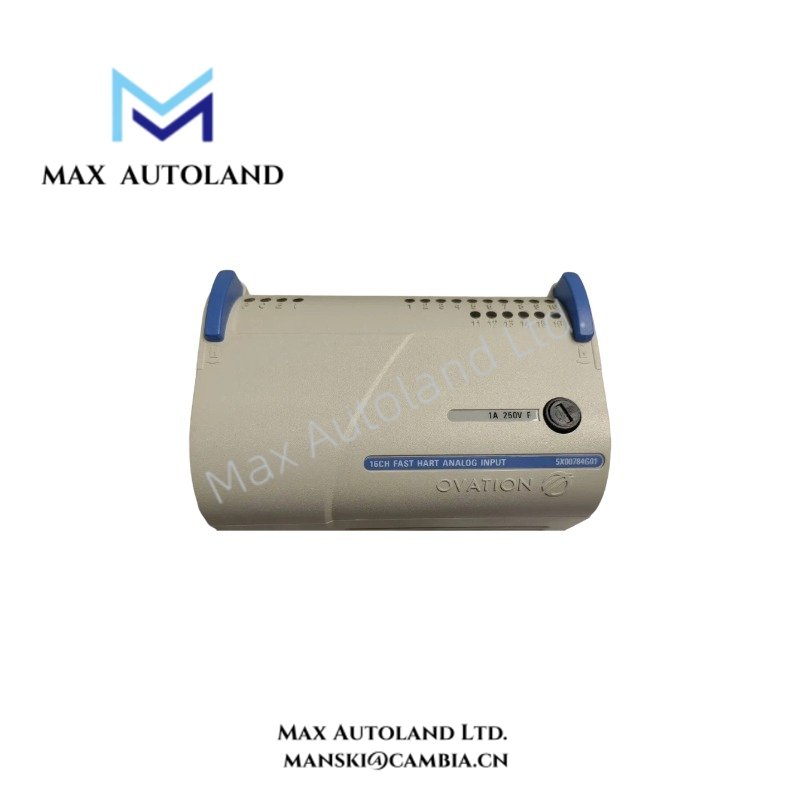

5X00784G01 Emerson Ovation HART Analog Input Module

Overview

Configured for analog process signal acquisition and HART communication in the Ovation Distributed Control System, the Emerson 5X00784G01 (5X00784G01 HART Analog Input Module) directly receives and processes field signals. The module handles analog process values and supports HART-enabled instruments within the Ovation I/O architecture. In addition, it transfers process information to the control system through the configured I/O network.

Hardware Specifications

4-20 mA HART Loop Protocol and Signal Integration

The Emerson 5X00784G01 receives process signals from compatible field instruments through analog input circuits. The 4-20 mA loop carries the primary process value. At the same time, HART communication carries digital device information through the same signal loop.

As a result, technicians must maintain the correct electrical conditions throughout the field circuit. They should route signal cables away from high-current power conductors and variable-frequency drive cables. In addition, proper cable routing helps reduce electrical interference.

The installation must also follow the Ovation system grounding design. Therefore, technicians should connect cable shields according to the approved cabinet and field wiring requirements. This approach helps maintain stable analog signal transmission and HART communication.

The available product information does not confirm specific channel-to-channel isolation values. Consequently, users should check the applicable Emerson Ovation documentation before defining isolation requirements for 5X00784G01.

Frequently Asked Questions

Q: Does the Emerson 5X00784G01 handle analog signals and HART communication?
A: Yes. The 5X00784G01 is identified as an Ovation HART Analog Input Module. It receives analog process signals and supports HART-enabled field instrumentation within the Ovation DCS architecture.

Q: How should technicians route the field wiring for this module?
A: Technicians should separate analog signal cables from high-voltage, high-current, and variable-frequency drive wiring. In addition, they should follow the approved grounding and shielding requirements for the Ovation installation.

Q: Are hot-swap capability and power consumption specified in the provided information?
A: No. The provided information does not specify hot-swap capability or power consumption. Therefore, users should verify these parameters in the applicable Emerson Ovation technical documentation before installation or replacement.

Field Installation Guidelines

First, verify that Emerson 5X00784G01 matches the installed Ovation hardware configuration and I/O arrangement.

Next, follow the site electrical safety procedure before installing or removing the module. Check the applicable Ovation documentation to determine whether the system supports energized replacement.

Then, route analog signal wiring separately from high-voltage and high-current conductors. Also, keep signal cables away from switching equipment and variable-frequency drive output cables.

Use shielded field cable when the system design requires it. In addition, connect cable shields according to the approved site grounding architecture and Ovation cabinet documentation. Avoid multiple shield grounding points when they could create an unintended ground loop.

Finally, check field loop polarity, terminal assignments, analog signal configuration, and HART device compatibility. After installation, validate the input signal and confirm HART communication through the configured Ovation system.
