Overview

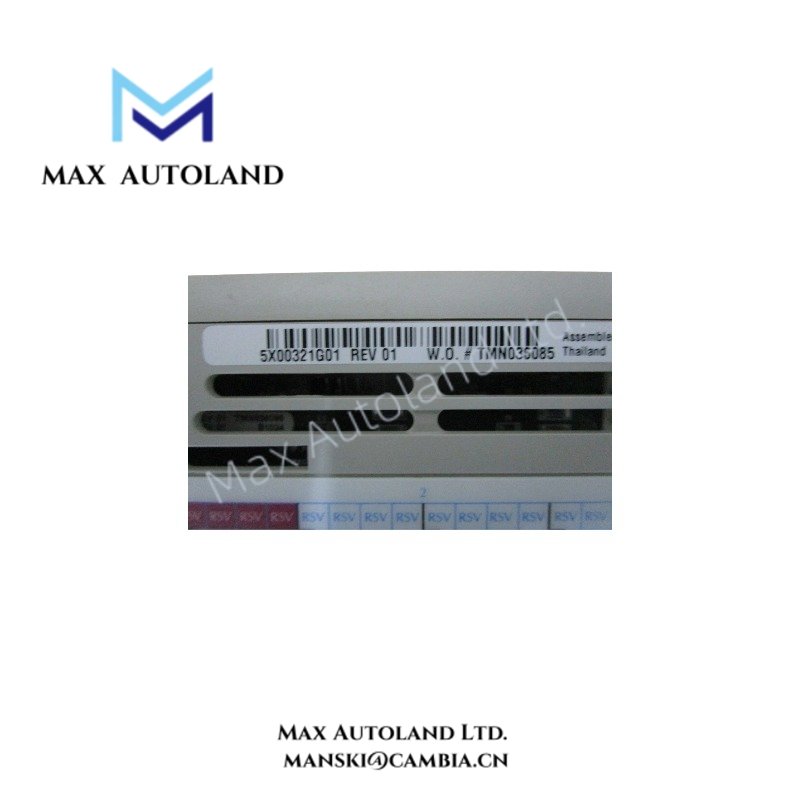

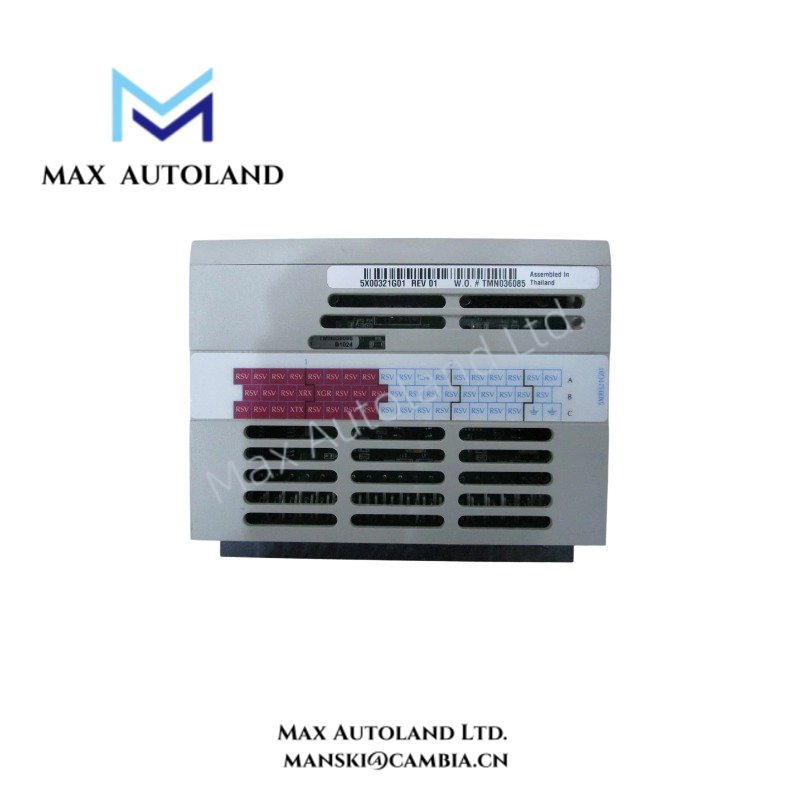

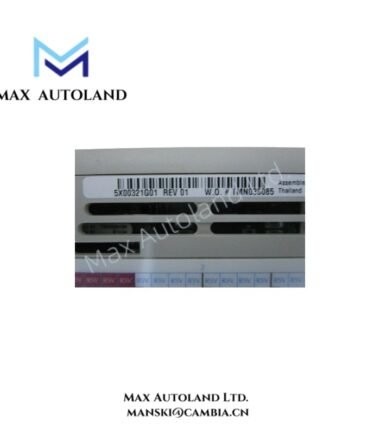

The Emerson Ovation 5X00321G01, also cataloged as the 5X00321G01 PROFIBUS DP Interface Module, operates as a dedicated hardware component for PROFIBUS DP data communication within the Emerson Ovation Distributed Control System. It exchanges cyclic process data between the Ovation control architecture and compatible PROFIBUS DP field devices through a linear bus network. The module supports selectable communication rates from 9.6 kbps to 1.5 Mbps.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00321G01 |
| Brand | Emerson / Westinghouse |
| Product Type | PROFIBUS DP Interface Module / Communication Card |
| System | Emerson Ovation Distributed Control System |
| Communication Protocol | PROFIBUS DP |
| Baud Rate Support | 9.6 kbps to 1.5 Mbps |
| Bus Topology | Linear bus structure |
| Maximum Devices Per Segment | Up to 32 devices |
| Maximum Cable Length at 1.5 Mbps | Up to 100 m |
| Maximum Cable Length at 500 kbps | Up to 400 m |
| Maximum Cable Length at 9.6 kbps | Up to 1200 m |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Shock Resistance | 10 g, 11 ms half-sine wave |
| Mounting | Emerson Ovation rack-mounted I/O card slot |
| Core Performance | PROFIBUS DP communication between Ovation architecture and compatible field devices |
Process Control Communication Characteristics
The 5X00321G01 handles digital fieldbus communication rather than a direct 4-20 mA HART measurement loop. Within the Ovation DCS architecture, the PROFIBUS DP interface transfers process and device data across the physical bus connection.
PROFIBUS communication performance depends on the selected baud rate, cable length, network termination, shielding, and device configuration. Therefore, higher transmission rates require shorter cable segments. Proper segment design also limits communication errors caused by electrical noise and signal reflections.
The module supports connection to compatible PROFIBUS DP field devices. However, device-specific configuration and system integration should follow the applicable Ovation engineering configuration and PROFIBUS network requirements.
Frequently Asked Questions
Q: Does the Emerson Ovation 5X00321G01 directly process 4-20 mA signals?
A: No direct 4-20 mA processing function is specified in the provided data. The 5X00321G01 is identified as a PROFIBUS DP communication interface for digital fieldbus data exchange.
Q: What determines the maximum PROFIBUS DP cable length?
A: The selected communication rate determines the applicable cable length. The provided specifications list up to 100 m at 1.5 Mbps, 400 m at 500 kbps, and 1200 m at 9.6 kbps.
Q: Can the module support more than 32 devices on a network?
A: The provided specification identifies up to 32 devices per segment. Larger network architectures may require additional segments or network infrastructure according to the PROFIBUS system design.
Field Installation Guidelines
Install the Emerson Ovation 5X00321G01 only in the designated Ovation rack and compatible card slot. Verify that the module and associated system hardware are de-energized or follow the approved system maintenance procedure before installation.
Use PROFIBUS cable and connectors suitable for the installed network. Maintain the specified bus topology and apply termination according to the physical segment design. Route PROFIBUS communication cables separately from high-voltage and high-current conductors where practical.
Connect cable shielding according to the applicable plant grounding practice and PROFIBUS installation requirements. Avoid unnecessary cable stubs and maintain correct segment wiring to reduce signal reflections and communication disturbances.
After installation, verify the module configuration, communication rate, device addressing, bus status, and diagnostic information through the applicable Ovation engineering environment before placing the network into operation.
