Overview

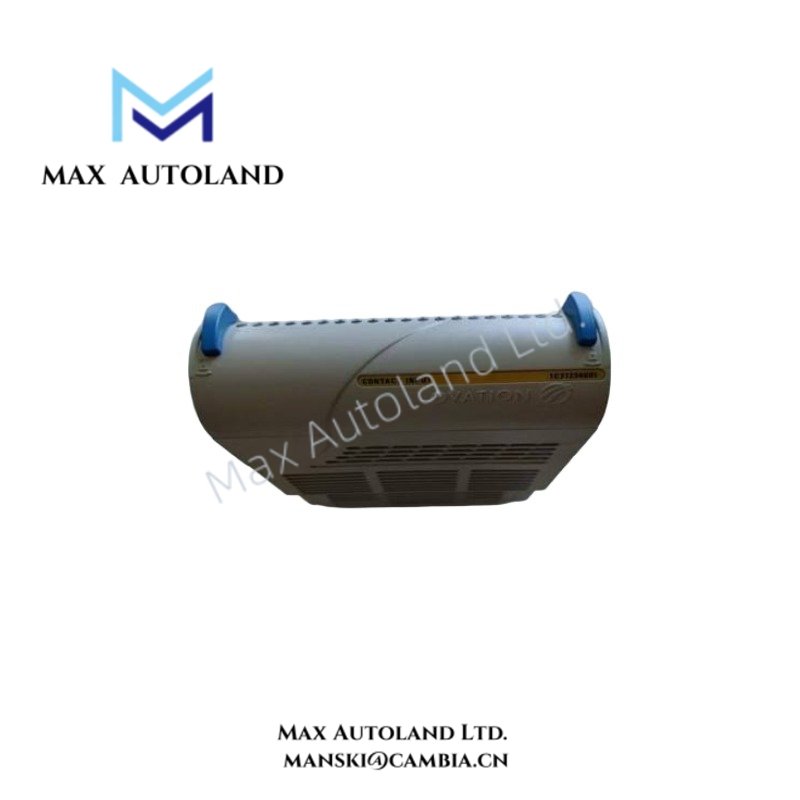

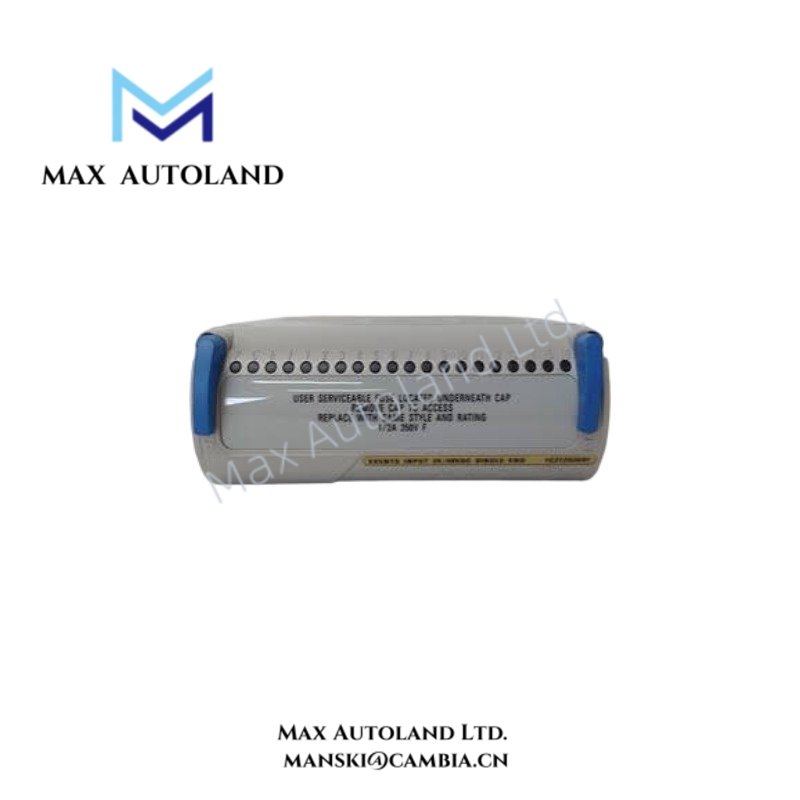

Configured for monitoring discrete field signals and recording time-sequenced events in the Emerson Ovation DCS, the Emerson 1C31233G01 (1C31233G01 Digital Input SOE Module) provides direct electrical signal acquisition from field circuits. The module accepts up to 16 single-ended digital input channels and processes 24 VDC or 48 VDC input signals for control system logic and Sequence of Events functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31233G01 |
| Brand | Emerson / Westinghouse |
| System | Emerson Ovation DCS |
| Module Type | Digital Input / Sequence of Events Module |
| Input Channels | 16 single-ended channels |
| Input Voltage Range | 24 VDC / 48 VDC |
| Signal Type | Discrete / Digital input |
| SOE Capability | Yes |
| Core Function | Digital signal acquisition and time-sequenced event recording |
| Application | Process control, turbine control, and industrial automation |
| Origin | United States |
DCS Signal Acquisition and Channel Interface
The Emerson 1C31233G01 receives discrete electrical signals from field devices and transfers the resulting input states to the Ovation control architecture. Each channel operates as a single-ended input path for monitoring field status changes.
The module also supports Sequence of Events recording for applications that require time-based identification of input state transitions. Therefore, engineers can use recorded event information for fault sequence analysis and control system diagnostics.
As an Emerson Ovation DCS module, the 1C31233G01 interfaces with the system hardware architecture rather than directly performing analog process measurement. Features such as 4-20 mA HART communication, cold junction compensation, and FOUNDATION Fieldbus or Profibus PA connectivity do not apply to the specified digital input function unless provided by separate system hardware.
Frequently Asked Questions
Q: What type of field signals does the Emerson 1C31233G01 process?
A: The module processes discrete or digital field signals through 16 single-ended input channels and supports 24 VDC or 48 VDC input operation.
Q: What is the Sequence of Events function?
A: The SOE function records changes in digital input states for time-sequenced event analysis and system fault diagnostics.
Q: Can the module be installed without checking field wiring compatibility?
A: No. Engineers should verify the field circuit voltage, input configuration, common reference arrangement, and Ovation hardware compatibility before installation.
Field Installation Guidelines
Install the Emerson 1C31233G01 only in the compatible Emerson Ovation hardware assembly specified for the system configuration.
Before inserting or replacing the module, isolate electrical power when required by the applicable cabinet maintenance procedure. Verify the field input voltage before connecting any signal wiring.
Route digital input wiring separately from high-current power conductors and variable-frequency drive cables where practical. Use shielded cable when required by the field installation design, and terminate cable shields according to the site grounding scheme.
Check the polarity and common reference of each 24 VDC or 48 VDC input circuit before commissioning. After installation, verify each input channel through the Ovation engineering or diagnostic environment and confirm that SOE event records correspond with actual field state changes.
