Overview

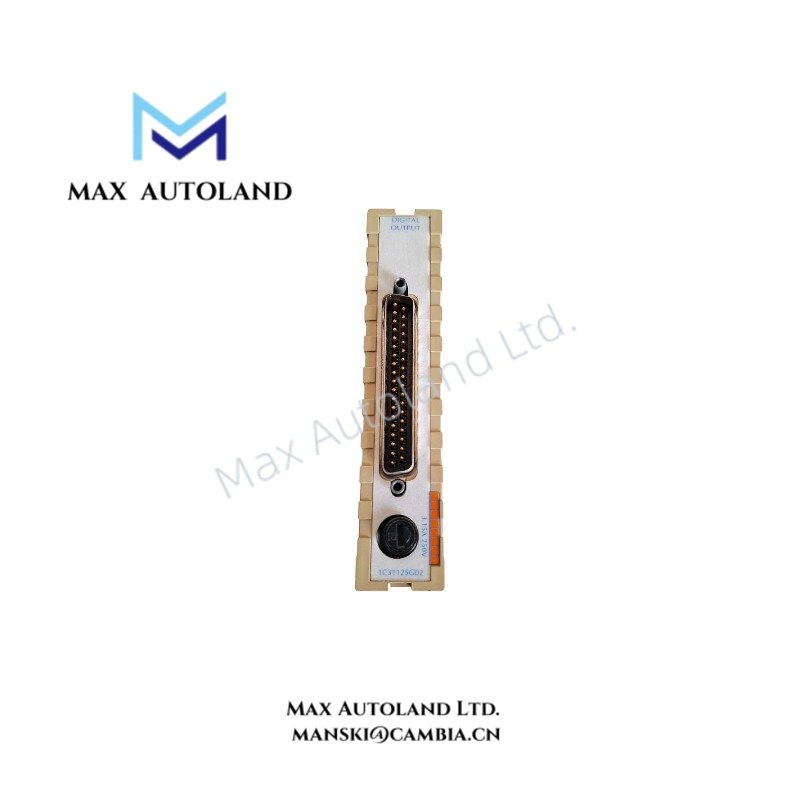

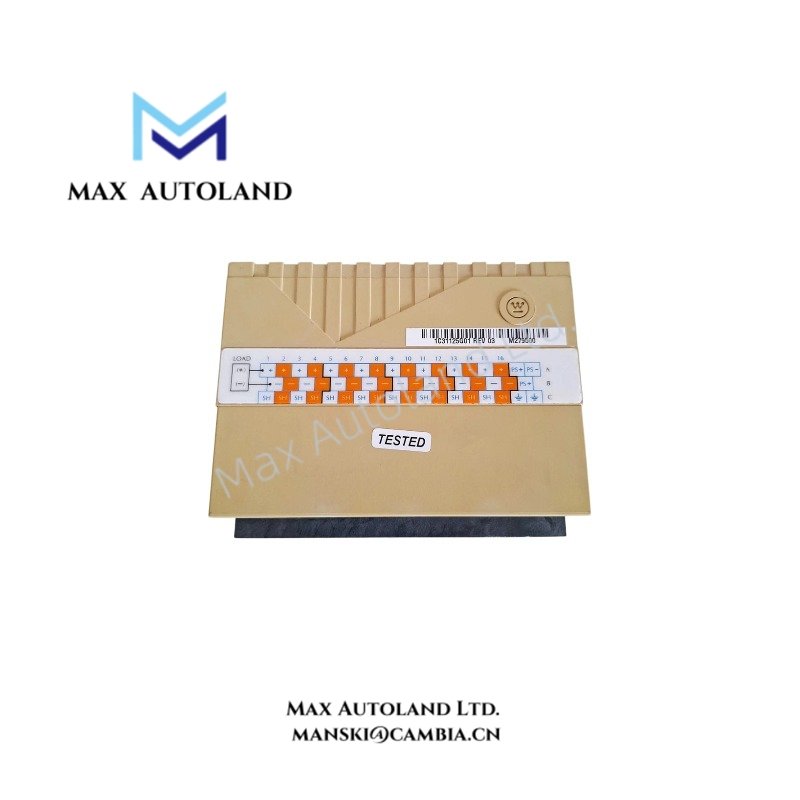

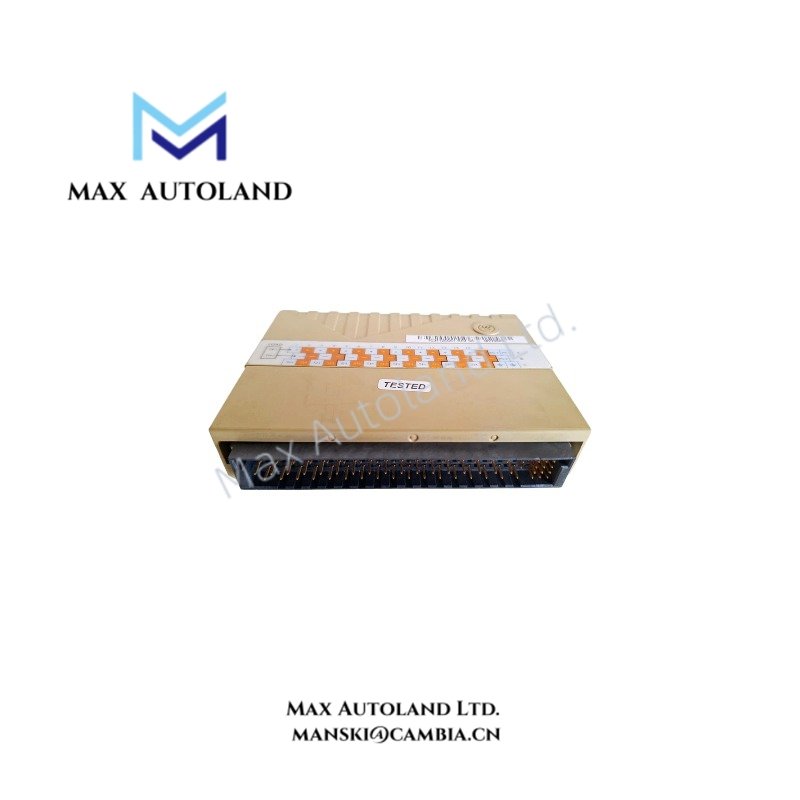

Configured for discrete signal execution in the Emerson Westinghouse Ovation DCS system, the Emerson Ovation Digital Output Module (Ovation Digital Output Module) provides direct electrical switching control between controller logic and external field devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | Ovation Digital Output Module |
| Brand | Emerson / Westinghouse |
| Product Type | Digital Output Module |
| System Platform | Emerson Westinghouse Ovation DCS |
| Origin | China |
| Weight | 0.5 kg (1 lbs 1.6 oz) |
| Dimensions | 20.3 cm x 7.6 cm x 15.2 cm (8.0 in x 3.0 in x 6.0 in) |
| Signal Function | Discrete digital output control |
| Module Role | Controller output interface for field device actuation |
| Tariff Code | 8538908000 |
DCS Signal Output Interface Characteristics
The Ovation Digital Output Module provides discrete output signal handling within the Ovation distributed control architecture. The module receives processed commands from Ovation controllers and transfers binary control states to connected field circuits.
Emerson Ovation I/O modules are designed for deterministic controller-to-field communication through the Ovation I/O subsystem. The output interface architecture supports structured channel assignment, status monitoring, and integration with DCS configuration databases.
For process instrumentation applications, Emerson Ovation output modules can be configured within systems supporting industrial field communication standards. Typical DCS integration practices include channel isolation verification, field wiring inspection, and loop validation before commissioning.
Frequently Asked Questions
Q: What is the primary function of the Emerson Ovation Digital Output Module?
A: The module provides discrete electrical output channels that execute binary control commands from the Ovation controller system.
Q: Can the module be installed directly into an Ovation control chassis?
A: Installation requires compatibility with the designated Ovation I/O chassis and approved module configuration within the system database.
Q: What installation checks are required before operation?
A: Field wiring continuity, terminal assignments, grounding conditions, and controller configuration should be verified before applying operating power.
Field Installation Guidelines
- Install the module only in the designated Emerson Westinghouse Ovation I/O chassis position.
- Verify module identification and slot configuration before insertion into the backplane.
- Disconnect field power sources before connecting or removing external wiring.
- Maintain separation between discrete output wiring and high-voltage power conductors to reduce electrical interference.
- Connect cable shields according to site grounding standards and control system installation procedures.
- Confirm terminal assignments against approved Ovation engineering documentation before commissioning.
- Verify controller database configuration matches the installed I/O module channel allocation.
