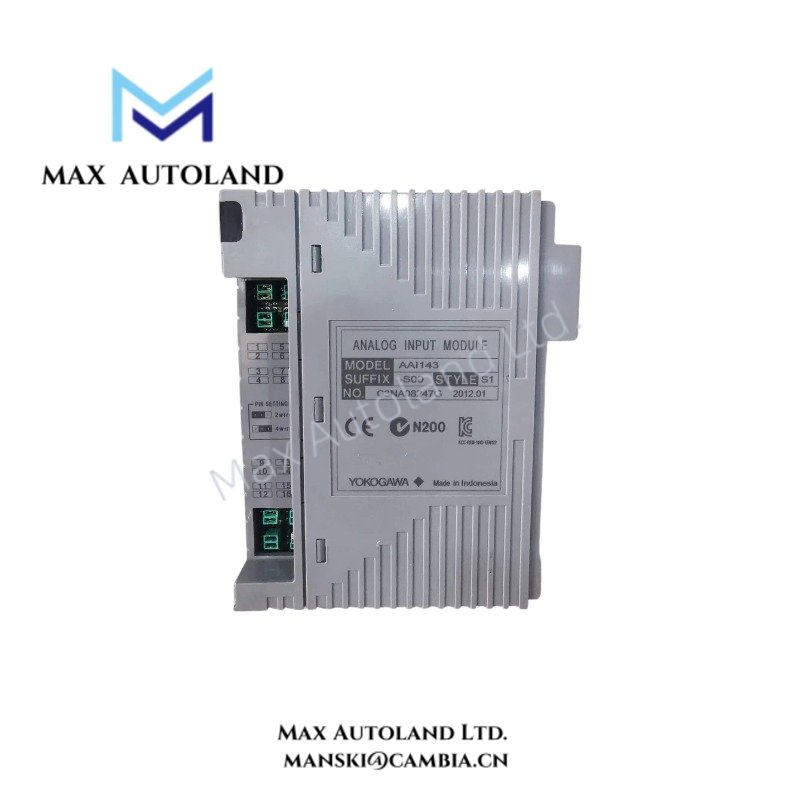

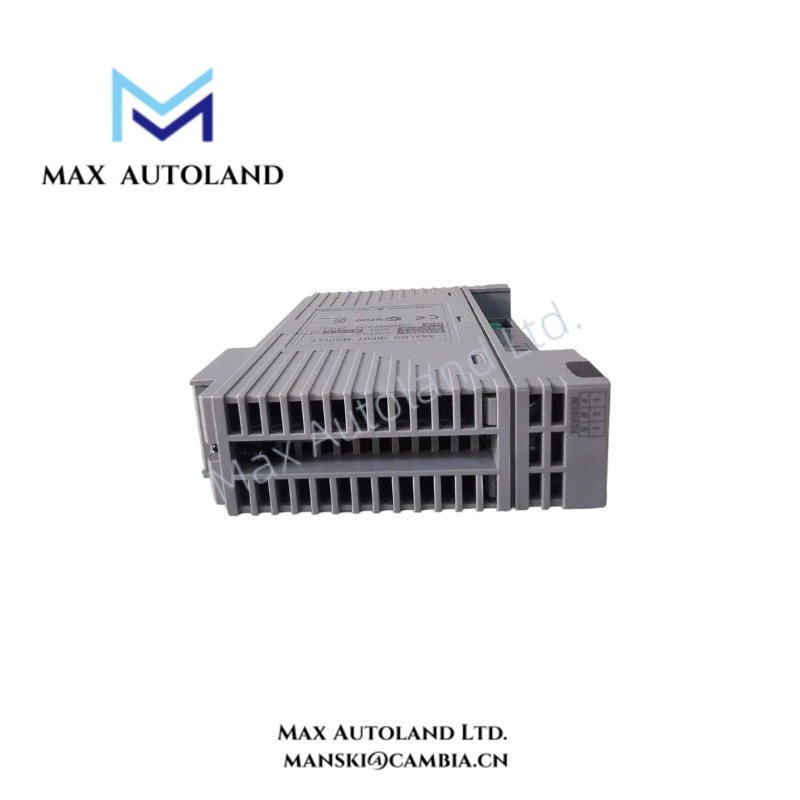

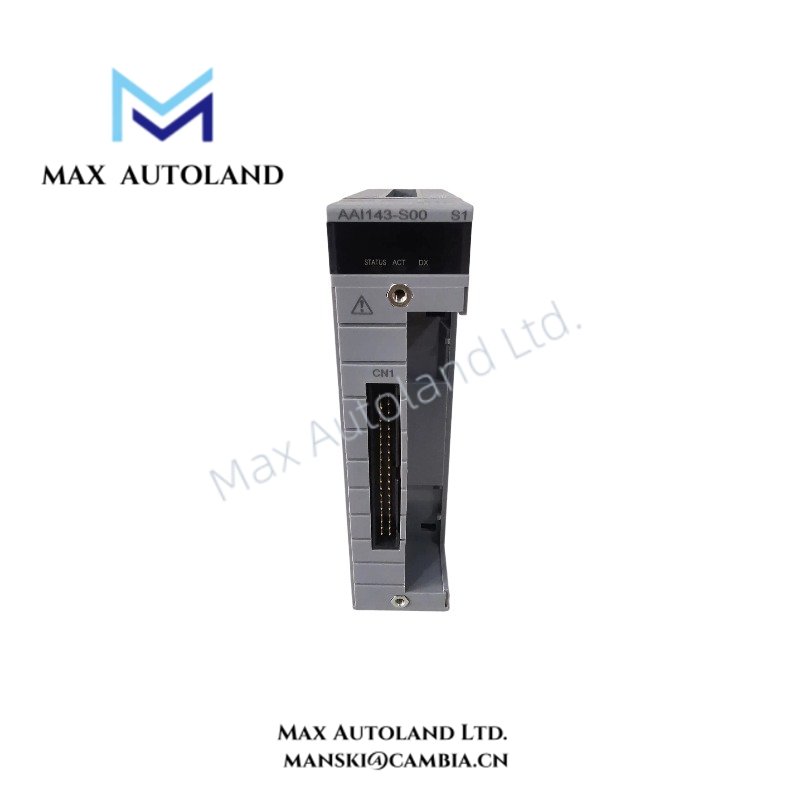

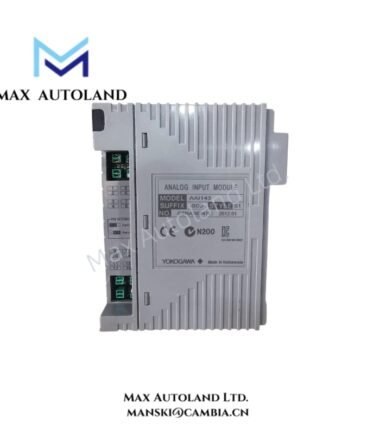

Yokogawa AAI143-S00/K4A00 Analog Input Module

Overview

Configured for 4-20 mA current signal acquisition in Yokogawa CENTUM VP and CENTUM CS 3000 DCS platforms, the Yokogawa AAI143-S00/K4A00 (AAI143 Analog Input Module) provides isolated analog signal processing for field transmitters. The module accepts up to 16 input channels and converts process current signals into internal system data. It supports 2-wire and 4-wire transmitter connections through channel configuration settings and provides electrical isolation between field inputs and the control system.

Suffix Breakdown & Model Matrix

The provided technical data identifies AAI143-S00/K4A00 as a specific Yokogawa module configuration. However, the supplied information does not provide an official suffix decoding table for -S00 or /K4A00. Therefore, no additional suffix interpretation is included.

Hardware Specifications

4-20 mA Signal Processing and Channel Isolation

The Yokogawa AAI143-S00/K4A00 processes standard 4-20 mA process signals from compatible field transmitters. Each input channel provides isolation to separate field-side electrical conditions from the internal control system.

In addition, the module supports transmitter connection arrangements for both 2-wire and 4-wire devices. Channel settings determine the applicable transmitter configuration. The input circuit maintains specified measurement accuracy and provides a 10 ms data update period.

Where the installed system configuration supports the required communication function, the module can also operate with HART-compatible field instrumentation. HART operation depends on the associated system node and hardware revision.

Frequently Asked Questions (FAQ)

Q: What analog signals does the Yokogawa AAI143-S00/K4A00 accept?
A: The module accepts 4-20 mA DC analog input signals and supports up to 16 isolated input channels.

Q: Can the Yokogawa AAI143-S00/K4A00 connect to both 2-wire and 4-wire transmitters?
A: Yes. The supplied specifications state that the module supports both 2-wire and 4-wire transmitters through channel configuration settings.

Q: What is the electrical isolation rating of the module?
A: The input-to-system circuit withstands 1500 V AC for 1 minute according to the provided technical data.

Field Installation Guidelines

• Install the Yokogawa AAI143-S00/K4A00 only in a compatible Yokogawa I/O assembly designed for the AAI143 module family.
• Verify the module orientation and connector engagement before applying system power.
• Use shielded instrumentation cable for 4-20 mA field circuits where the installation environment contains electrical noise.
• Apply cable shielding and grounding according to the system grounding arrangement to reduce ground-loop interference.
• Keep analog signal wiring separated from high-current power cables and switching circuits where practical.
• Confirm the transmitter wiring type before configuring each channel for 2-wire or 4-wire operation.
• Check input loop polarity and current range before connecting energized field circuits.
• Verify system node and hardware revision requirements before using HART communication functions.
• For redundant installations, follow the applicable Yokogawa system configuration procedure and verify both module paths before commissioning.
