Overview

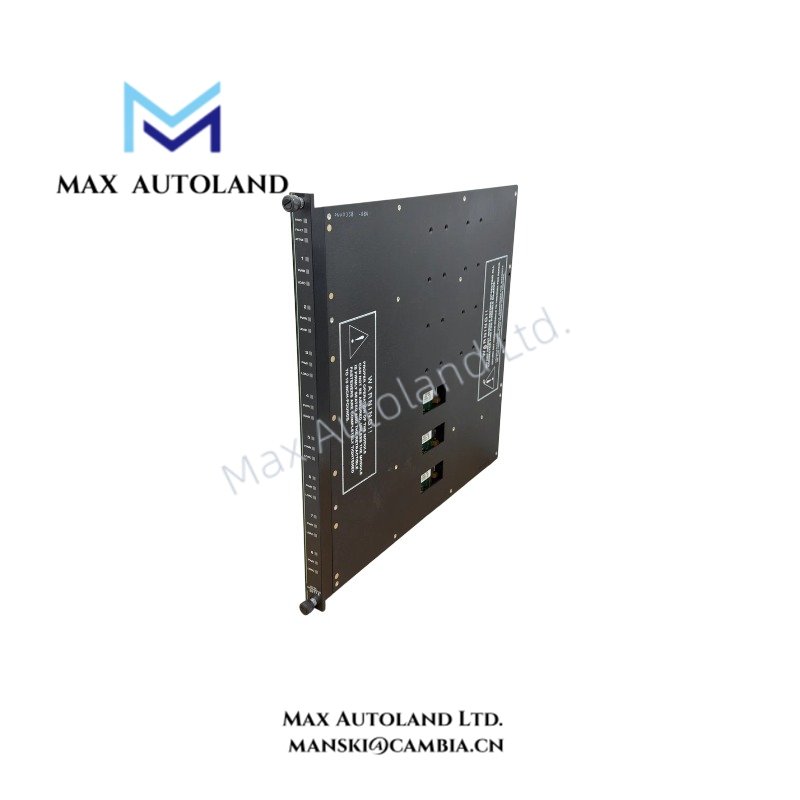

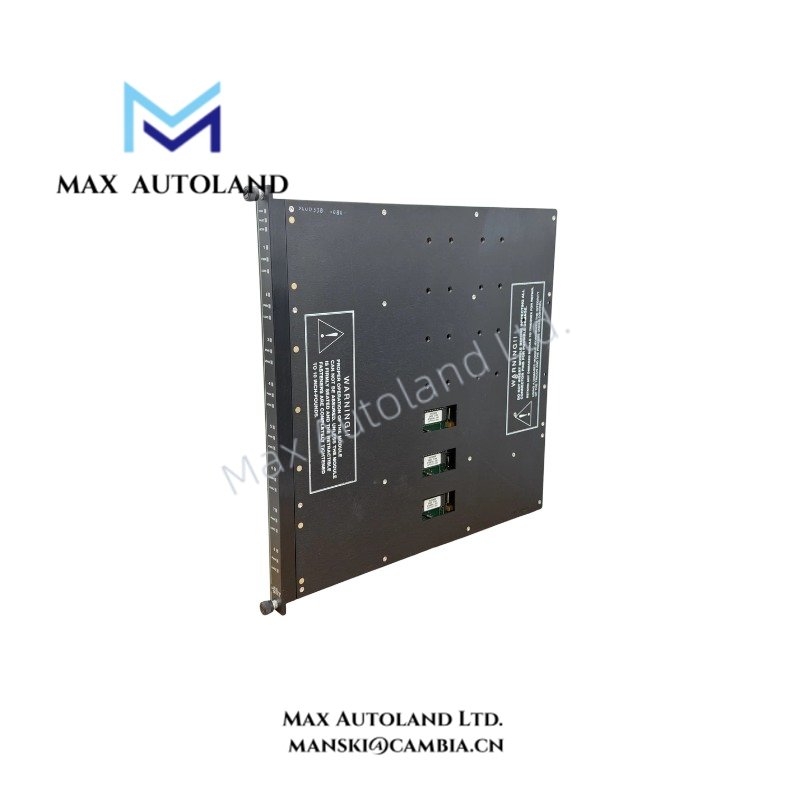

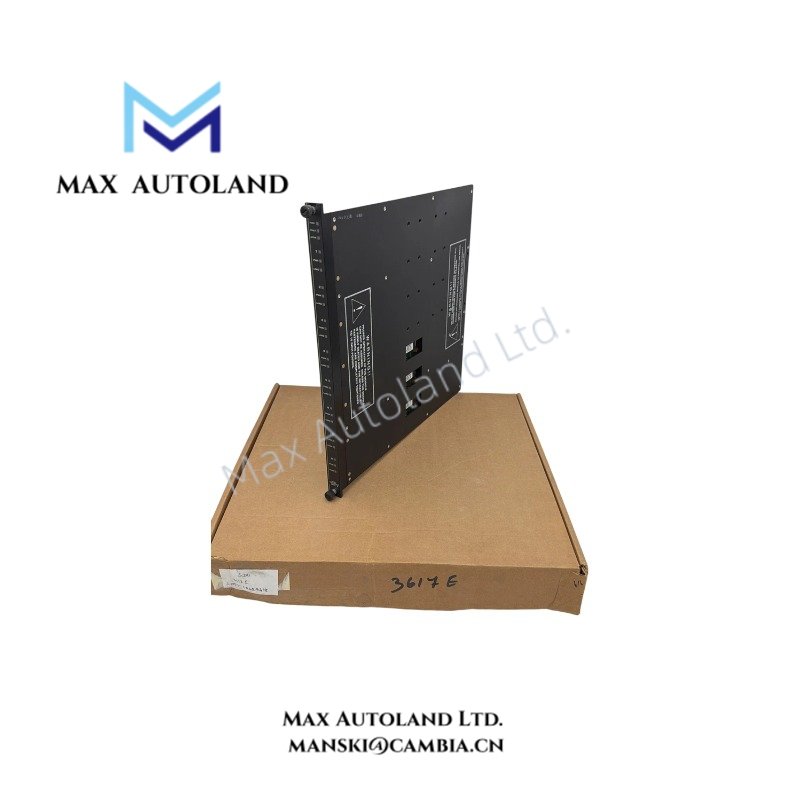

Configured for high-integrity discrete control in Triconex Triple Modular Redundant systems, the Triconex 3617E, also cataloged as the 3617E Supervised Digital Output Module, delivers direct physical and electrical execution for 48 VDC safety applications.
Suffix Breakdown & Model Matrix
| Suffix Identifier | Hardware Variation | Functional Scope |
|---|---|---|
| 3617E | Supervised Digital Output Module | 8-point, 48 VDC discrete output execution with loopback diagnostics |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3617E |
| Brand | Triconex |
| Origin | United States / Global Manufacturing Facilities |
| Weight | Approximately 2.1 kg to 2.7 kg |
| Dimensions | Standard Tricon I/O module form factor |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Field: 36 to 72 VDC (nominal 48 VDC); Backplane: 5 VDC logic |
| Number of Outputs | 8 supervised digital output points (commoned return) |
| Isolation | 1,500 VDC point-to-logic isolation |
Safety Integrity And Triple Modular Redundancy Execution
Operating directly within a TMR architecture framework, the module utilizes triplicated logic pathways and a voting relay stage to process every output change. Furthermore, built-in loopback diagnostics continuously monitor voltage and current feedback to verify the output path, field circuit, and load condition. Galvanic separation and per-channel fusing maintain signal integrity while isolating potential faults. Consequently, the system architecture reliably preserves SIL3 certification and fail-safe state execution without operational disruption.
Frequently Asked Questions
- Q: Does the Triconex 3617E support hot-swap replacement during active system operation?
- A: Engineers can replace modules online strictly under safety and procedural guidelines defined in the system manual, provided that system redundancy remains fully active.
- Q: How do technicians verify field wiring integrity using this module?
- A: Technicians rely on integrated loopback diagnostics and auxiliary voltage supervision to detect open loads, short circuits, and blown fuses across individual channels.
Field Installation Guidelines
First, ensure that technicians disconnect all power from target chassis slots before attempting physical module insertion or removal. Next, verify mechanical keying alignment to prevent improper slot placement while securing locking levers for solid backplane engagement. Finally, route field wiring through the designated External Termination Panel (ETP) and confirm that diagnostic indicators reflect healthy operational loops upon startup.
