Overview

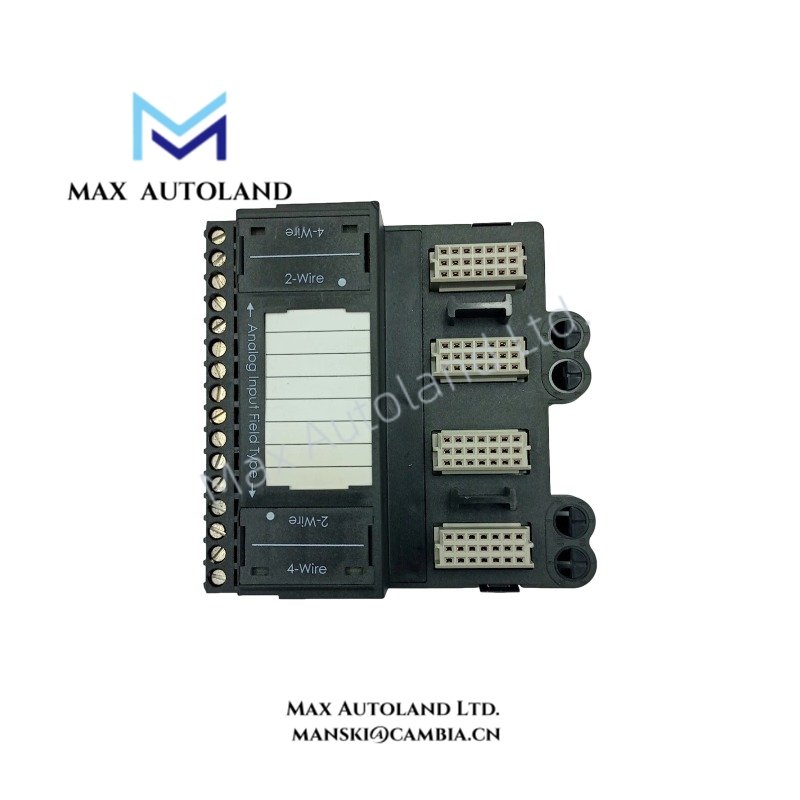

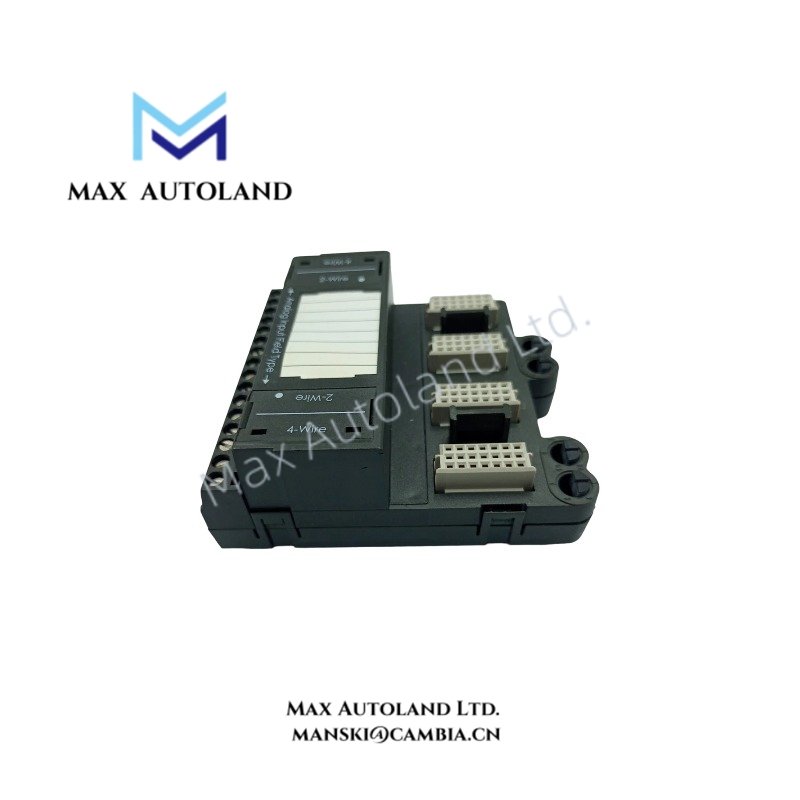

The Emerson KJ3222X1-EA1, also cataloged as the KJ3222X1-EA1 Redundant AI Terminal Block, operates as a dedicated hardware component for redundant analog input signal termination within the Emerson DeltaV Electronic Marshalling CHARM I/O Subsystem.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3222X1-EA1 |
| Brand | Emerson |
| Product Type | Redundant Analog Input Terminal Blocks |
| System Compatibility | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Input Power Rating | 30 VDC @ 200 mA |
| Operating Temp | -40 deg C to +70 deg C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Hazardous Atmosphere | Refer to product certification label and installation documentation |
| Power Consumption | 30 VDC @ 200 mA input rating |
Channel Isolation and Analog Signal Termination
The Emerson KJ3222X1-EA1 provides redundant analog input termination functions for CHARM-based I/O architectures. It connects field analog signals to the DeltaV Electronic Marshalling system while maintaining the required electrical routing between field wiring and I/O processing channels.
Furthermore, the terminal block supports redundant signal configurations where two input paths require organized field termination. The unit operates as a passive termination interface and does not require user calibration.
The module design follows DeltaV CHARM I/O installation requirements. Therefore, users must follow hazardous area installation procedures defined for the applicable system configuration.
Frequently Asked Questions
Q: Can the KJ3222X1-EA1 be removed or inserted while system power remains energized?
A: No. The unit cannot be removed or inserted with system power energized. Maintenance personnel must disconnect system power before performing replacement operations.
Q: Does the KJ3222X1-EA1 require field calibration after installation?
A: No. The terminal block contains no calibration functions, and calibration is not required during normal installation procedures.
Q: Can users repair internal components of the KJ3222X1-EA1?
A: No. The unit contains no user-serviceable parts and should not be disassembled. Maintenance activities are limited to approved replacement procedures.
Field Installation Guidelines
Install the KJ3222X1-EA1 according to Emerson DeltaV Electronic Marshalling CHARM I/O Subsystem hazardous area instructions.

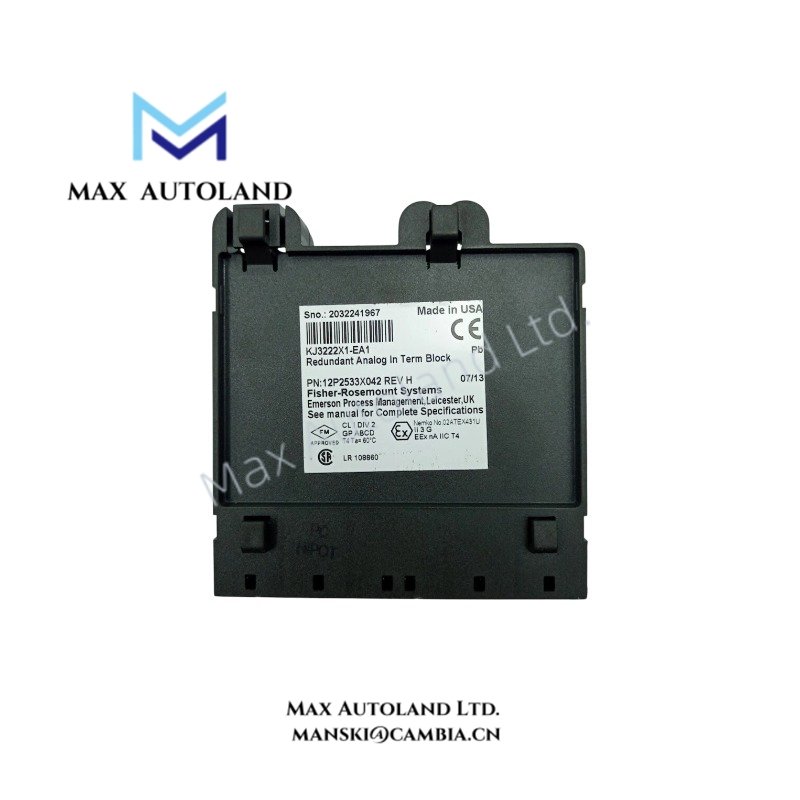

Before installation, verify the product label information, including serial number, manufacturing location, and production date. Confirm that the installation environment meets the specified temperature, humidity, vibration, and airborne contaminant limits.
During field wiring, maintain proper cable routing practices to reduce electromagnetic interference. Separate analog signal wiring from high-voltage power cables and apply appropriate shield grounding methods according to the site electrical standards.
Before removal or insertion, isolate system power completely. Do not disassemble the terminal block because internal components are not designed for field repair.
