Overview

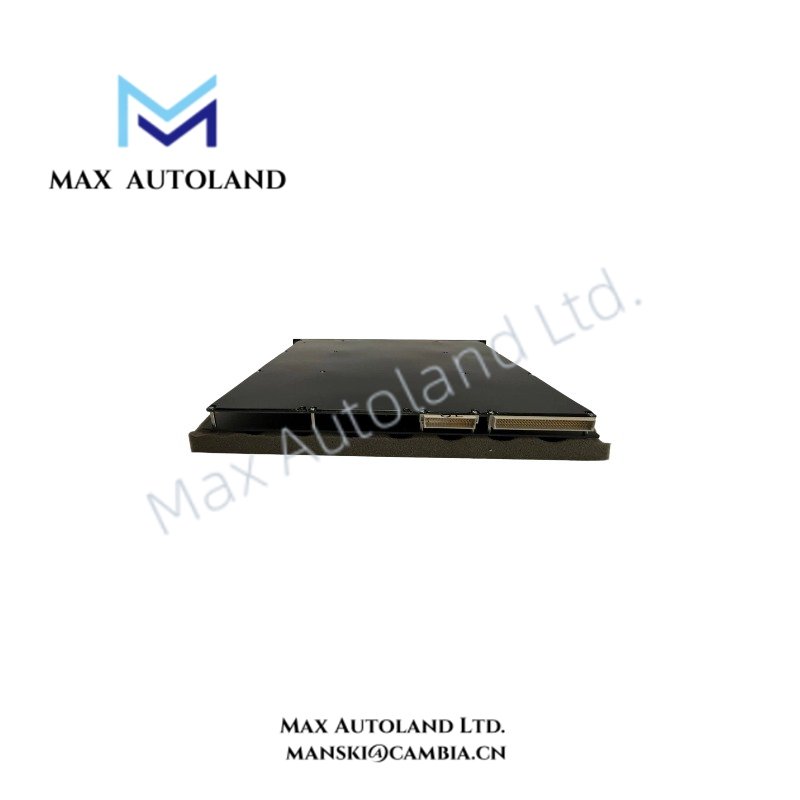

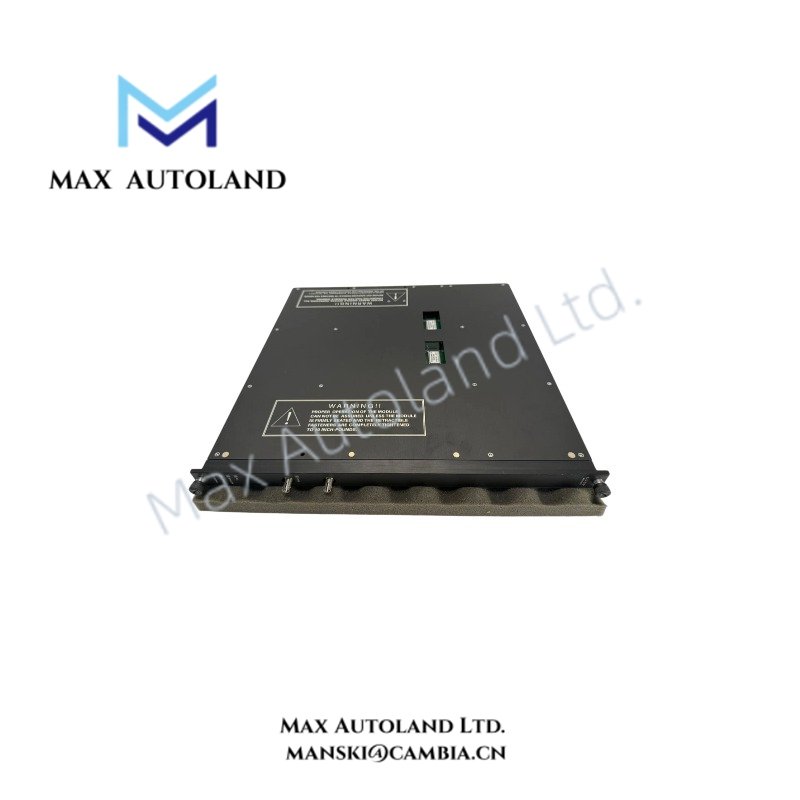

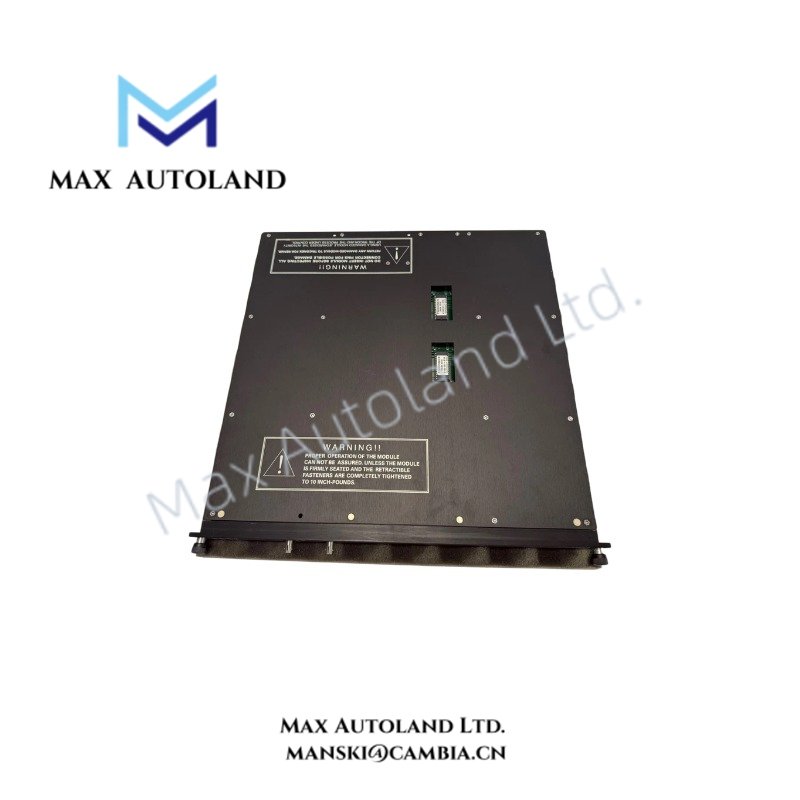

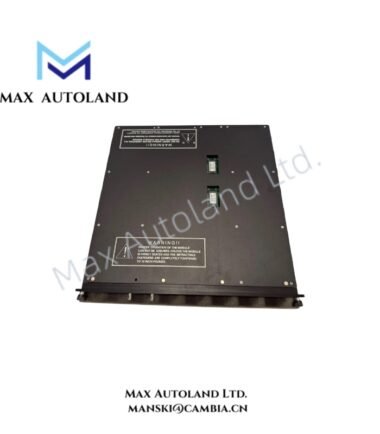

The Invensys Triconex 4211, also cataloged as the 4211 Remote Extender Module, operates as a dedicated hardware component for extending Triconex I/O bus communication through fiber-optic links between controller and remote chassis locations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 4211 |
| Brand | Invensys Triconex |
| Product Type | Remote Extender Module (RXM) |
| Origin | USA |
| Weight | 2.65 kg |
| Dimensions | 49 x 45.3 x 6.8 cm (estimated shipping size) |
| Module Function | Remote I/O chassis communication extension |
| Communication Medium | Single-mode fiber-optic cable |
| Maximum Transmission Distance | Up to 7.5 miles (12 km) |
| Communication Rate | 375 kbps Tricon I/O bus communication |
| Fiber Interface | ST-type fiber optic connectors |
| Diagnostic Indicators | PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 LEDs |
| System Compatibility | Triconex Tricon controller chassis with compatible RXM module |
| Maintenance Feature | Supports hot-swapping for online module replacement |
| Safety Application | SIL3 safety instrumented system applications |
TMR Safety Architecture and Fiber Communication Isolation
The Triconex 4211 Remote Extender Module operates within the Triconex Safety Instrumented System architecture and supports deterministic communication between the main controller chassis and remote I/O chassis. The module uses fiber-optic transmission to provide galvanic isolation between chassis locations, reducing electrical noise coupling and ground loop effects.
Furthermore, the module supports Triconex triple modular redundancy (TMR) system designs where redundant communication paths maintain continuous data exchange. The RXM architecture supports fail-safe state execution by maintaining controlled communication behavior during channel faults or signal interruptions.
Frequently Asked Questions
Q: What is the primary function of the Triconex 4211 module?
A: The 4211 functions as a Remote Extender Module (RXM) that extends Triconex I/O bus communication between the primary controller chassis and remote chassis through fiber-optic connections.
Q: What communication medium does the 4211 use for remote chassis connection?
A: The module uses single-mode fiber-optic cable with ST-type connectors to transmit Tricon I/O bus data over extended distances.
Q: Can the Triconex 4211 be replaced while the system remains active?
A: The module supports hot-swapping procedures when installed within a compatible Triconex system configuration. Maintenance activities must follow approved system procedures.
Field Installation Guidelines
- Install the 4211 module in the designated Triconex remote chassis slot according to system hardware documentation.
- Verify fiber-optic cable routing before commissioning to prevent excessive bending, mechanical stress, or connector damage.
- Maintain separation between fiber communication cables and high-voltage power wiring where applicable.
- Inspect ST fiber connectors for contamination before installation because optical signal quality depends on clean interfaces.
- Confirm TX and RX diagnostic LED states after installation to verify communication link status.
- Follow Triconex grounding and cabinet installation requirements when integrating the remote chassis assembly.
