Overview

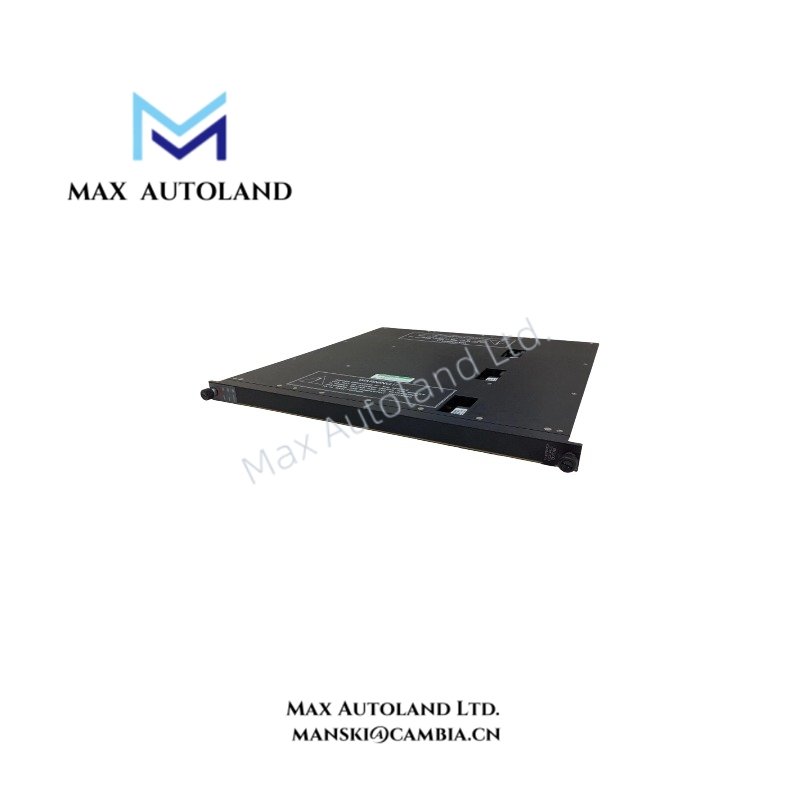

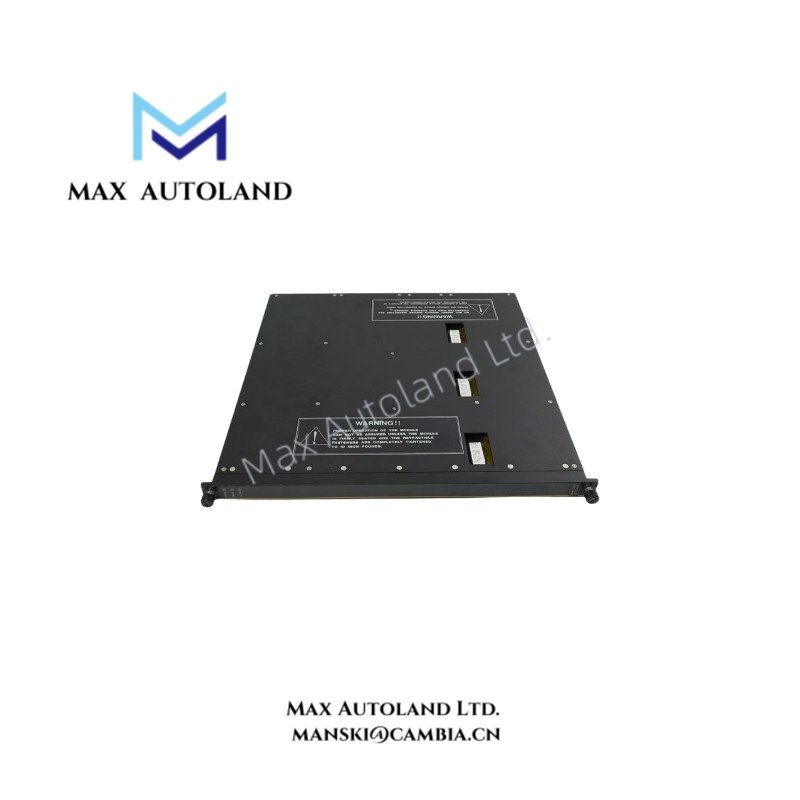

Configured for thermocouple signal acquisition in the Tricon safety controller system, the Invensys 3706A (3706A Thermocouple Analog Input Module) provides direct physical and electrical execution for 32 differential DC coupled temperature input channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3706A |
| Brand | Invensys |
| Product Type | Thermocouple Analog Input Module |
| Origin | USA |
| Weight | 2.2 kg |
| Dimensions | 2.2 x 40.8 x 40 cm |
| Operating Temp | 0 deg C to 60 deg C (reference junction compensation range) |
| Power Consumption | Not specified |
| Module Type | TMR |
| Input Channels | 32 differential, DC coupled inputs |
| Input Update Rate | 50 ms maximum |
| Supported Thermocouple Types | J, K, T |
| Input Resistance | 22 MΩ DC typical |
| Common Mode Range | ±10 VDC maximum |
| Leg-to-Leg Isolation | 200 KΩ typical |
| Input Point Protection | 110 VAC continuous |
| Diagnostic Indicators | PASS, FAULT, ACTIVE |
| Tariff Code | 8537101190 |
Triple Modular Redundancy and Temperature Signal Processing
The Invensys 3706A uses a TMR architecture to process thermocouple input signals through three parallel processing paths. Moreover, the module maintains differential DC coupled acquisition for 32 field input points with a maximum input update rate of 50 ms.
The module supports J, K, and T type thermocouples and integrates reference junction compensation from 0 deg C to 60 deg C. Therefore, the input circuitry can calculate temperature signals while maintaining compensation accuracy across the specified operating range.
The analog input design includes electrical isolation characteristics with 200 KΩ typical leg-to-leg isolation and a maximum common mode range of ±10 VDC. In addition, the input point protection supports continuous exposure up to 110 VAC conditions.
Frequently Asked Questions
Q: What thermocouple sensors can the 3706A process?
A: The 3706A processes J, K, and T type thermocouple signals through its 32 differential DC coupled input channels.
Q: Does the 3706A support redundant safety system operation?
A: Yes. The module uses a TMR architecture designed for integration with Tricon safety controller platforms.
Q: What diagnostic information is available from the module?
A: The module provides PASS, FAULT, and ACTIVE diagnostic indicators for monitoring module operating status.
Field Installation Guidelines
Install the 3706A module according to the Tricon controller rack installation requirements. Verify that the module is correctly seated in the designated rack position before applying system power.
Use shielded thermocouple wiring where required by the installation environment. Connect cable shields according to the site grounding design to reduce electrical interference during analog signal measurement.
Keep thermocouple signal cables separated from high-voltage power conductors and switching circuits. Confirm field wiring polarity before connection because incorrect thermocouple polarity can affect measured temperature values.
Check the module diagnostic indicators after installation. Verify that the PASS status is active and that no FAULT indication appears during system operation.
