Overview
The Foxboro FBM204 RH914SY, also cataloged as the FBM204 Analog Input/Output Module, operates as a dedicated hardware component for 4-20 mA signal acquisition and output control within the Foxboro I/A Series and EcoStruxure Process Automation System networks.

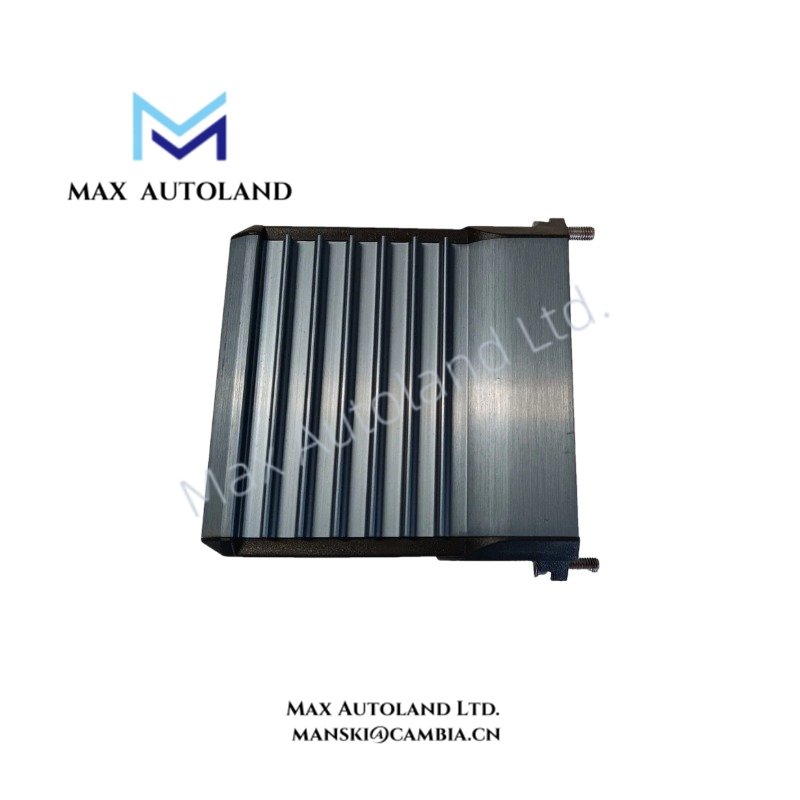

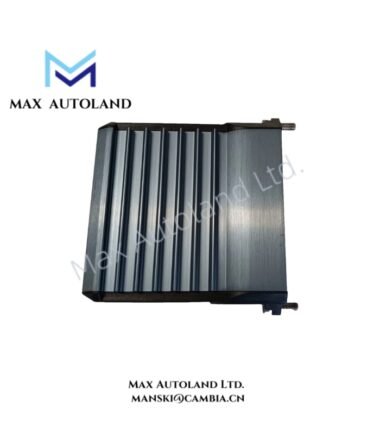

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM204 RH914SY |
| Brand | Foxboro |
| Product Type | Analog Input/Output Module |
| System Compatibility | Foxboro I/A Series / EcoStruxure Process Automation System |
| Origin | USA |
| Weight | Approx. 284 g |
| Dimensions | 102 mm H x 45 mm W x 104 mm D |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 7 W |
| Channel Configuration | 4 isolated analog inputs and 4 isolated analog outputs |
| Signal Range | 0 to 20.4 mA DC |
| Input Accuracy | +/-0.03% of span including linearity |
| Output Accuracy | +/-0.03% of span including linearity |
| Input Conversion | Independent Sigma-Delta A/D converter per channel |
| Input Impedance | 61.5 ohm nominal |
| Output Resolution | 13 bits |
| Maximum Output Load | 750 ohm |
| Output Processing Delay | 30 ms maximum |
| Temperature Coefficient | +/-50 ppm/deg C |
| Input Loop Power Protection | Galvanically isolated, current-limited, voltage-regulated below 30 mA |
| Supply Voltage | 24 VDC +5%, -10% via redundant baseplate supply |
| Heat Dissipation | 3.5 W |
| Relative Humidity | 5% to 95%, non-condensing |
| Contamination Rating | Class G3, ISA Standard S71.04 |
| Vibration Resistance | 7.5 m/s2 from 5 to 500 Hz |
| Mounting Method | Direct plug-in Foxboro module baseplate mounting |
4-20 mA HART Loop and Channel Isolation Characteristics
The Foxboro FBM204 RH914SY module processes analog field signals through four isolated input channels and four isolated output channels. Moreover, each channel operates independently with galvanic isolation to reduce ground loop effects and external electrical interference.
The module supports standard 4-20 mA transmitter signals and self-powered 20 mA sources. In addition, the isolated loop power circuit provides regulated current output with protection functions for connected field instruments.
The FBM204 applies independent Sigma-Delta conversion for each analog input channel. Therefore, the module maintains individual signal conversion performance without shared converter limitations. The output channels provide 13-bit resolution and support actuator signal transmission with a maximum load of 750 ohm.
The module design follows Foxboro DCS I/O architecture requirements, including channel-to-channel isolation, redundant module bus communication, and diagnostic status monitoring. Furthermore, the hardware supports HART-compatible field devices for process measurement and control applications.
Frequently Asked Questions
Q: Does the FBM204 RH914SY support hot-swapping during system operation?
A: Yes. The module supports removal and replacement from the Foxboro baseplate without disconnecting field wiring. The remaining modules continue operating while the replacement procedure occurs.
Q: How does the module isolate analog field signals?
A: The FBM204 uses galvanic isolation for each input and output channel. This structure separates field circuits electrically and limits interference caused by ground potential differences.
Q: What type of power connection does the FBM204 require?
A: The module receives 24 VDC power through the redundant baseplate supply connection. The power design includes regulated and protected field loop supply functions.

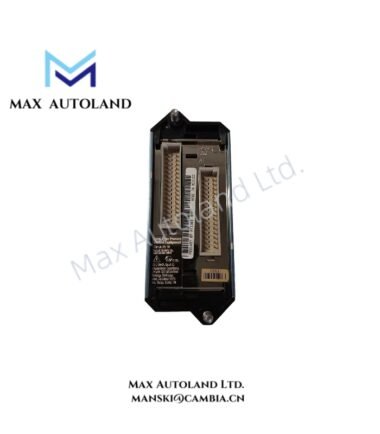

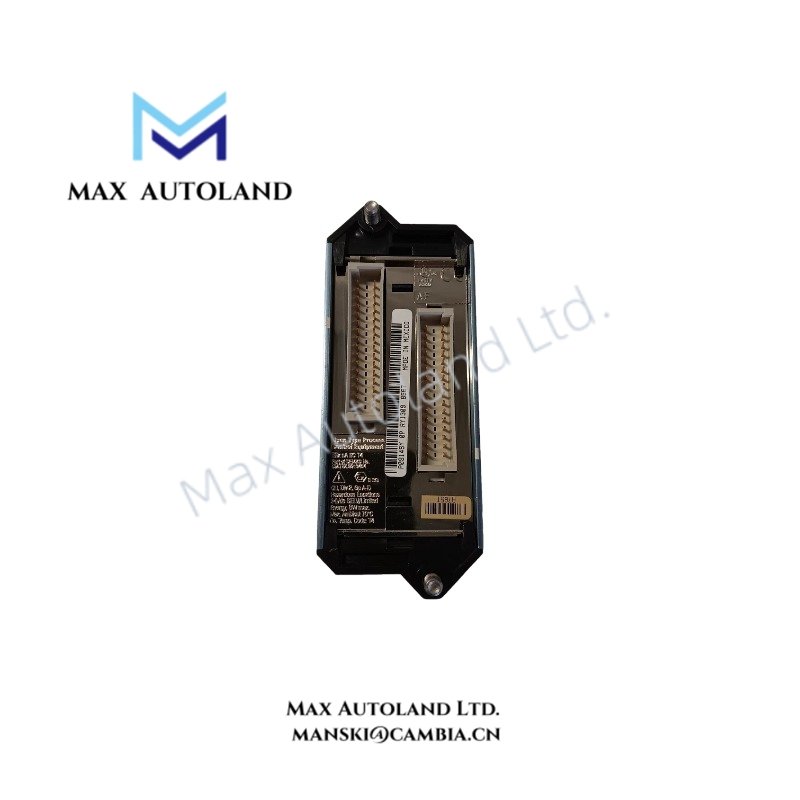

Field Installation Guidelines
Install the FBM204 RH914SY directly into the designated Foxboro module baseplate position. Verify that the module connector is fully engaged before applying system power.
Route analog field wiring separately from high-voltage power cables and high-current switching circuits. Use proper cable shielding practices and connect shield layers according to the plant grounding standard.
Confirm transmitter polarity, loop wiring direction, and signal range settings before commissioning. Check that the connected field devices operate within the specified 4-20 mA interface limits.
Maintain appropriate cabinet ventilation and ensure that the installation environment remains within the specified temperature, humidity, contamination, and vibration conditions.
