Overview

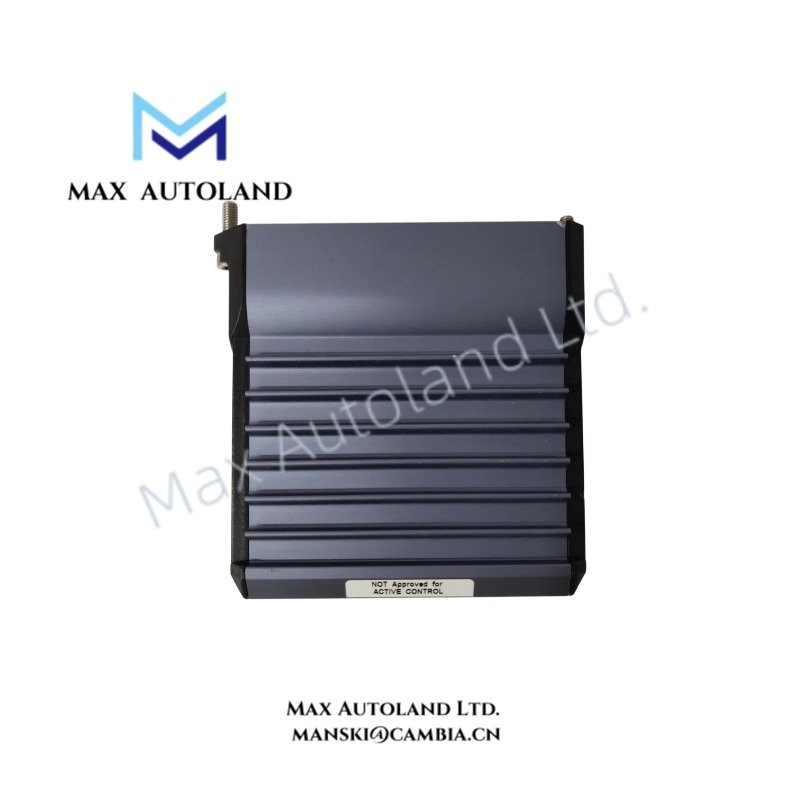

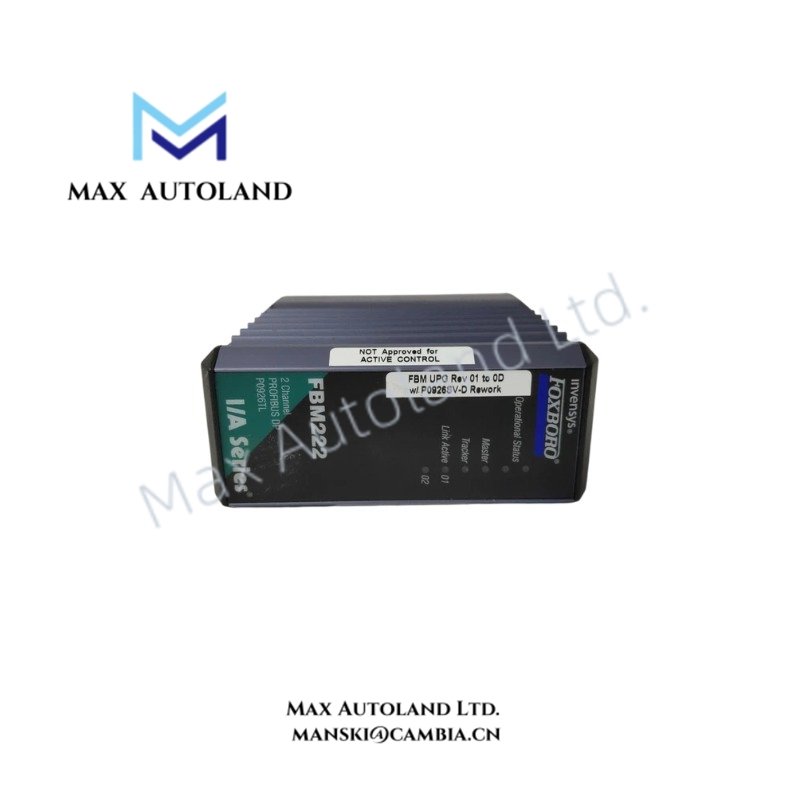

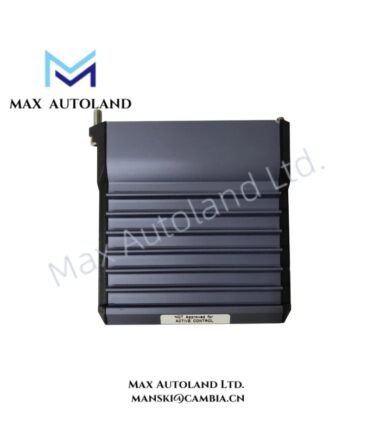

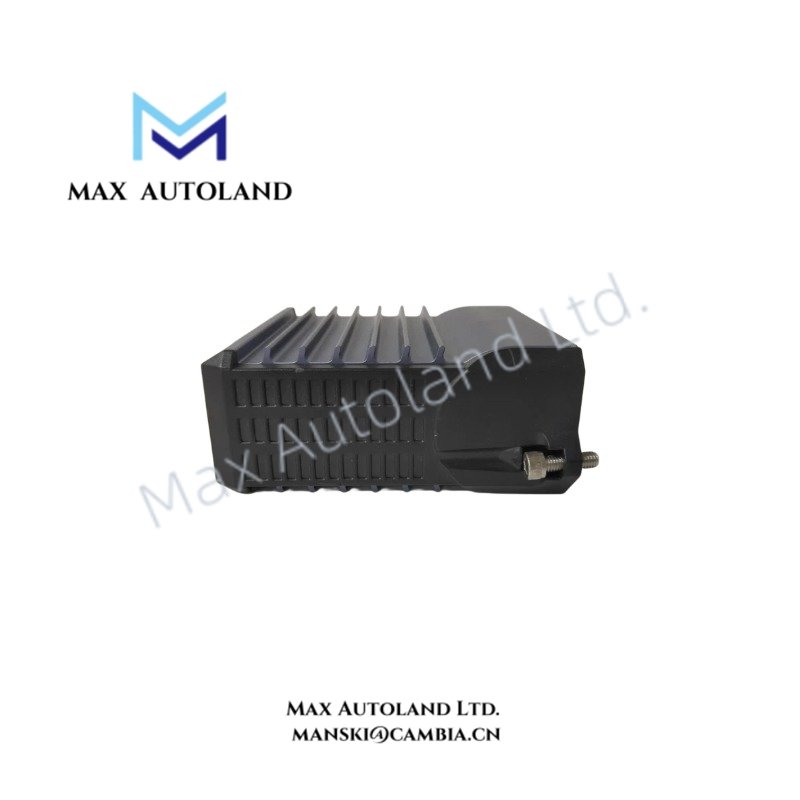

Configured for PROFIBUS-DP and PROFIBUS-PA network communication in Foxboro DCS platforms, the Foxboro FBM222 P0926TL (FBM222 PROFIBUS Communication Interface Module) provides direct data exchange between field devices and control system interface blocks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM222 P0926TL |
| Brand | Foxboro / Schneider Electric |
| Origin | Foxboro I/A Series and Foxboro Evo DCS platform |
| Module Type | PROFIBUS Communication Interface Module |
| Communication Protocol | PROFIBUS-DP / PROFIBUS-PA, IEC 61158 Part 3 |
| Network Interface | 2 galvanically isolated PROFIBUS channels |
| Supported Devices | PROFIBUS DP Class 1, Class 2 Masters, and DPV1 devices |
| Device Capacity | Up to 125 PROFIBUS slave devices per port with repeaters |
| Data Transfer Capacity | Up to 244 bytes payload per device |
| Station Capacity | Up to 1,000 analog I/O points or 32,000 digital I/O points |
| Update Period | Down to 500 ms in redundant configurations |
| Redundancy Support | Single or redundant module configuration with redundant Terminal Assemblies |
| Hot Swap Capability | Supports module replacement without interrupting control operation |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Contamination Rating | ISA Standard S71.04 Class G3 |
| Hazardous Area Rating | Class 1 Division 2 and Zone 2 suitable installation |
| Weight | Approx. 0.34 kg |
| Dimensions | Approx. 4.5 cm x 11.0 cm x 11.5 cm |
| Power Consumption | Not specified in available technical data |
PROFIBUS Network Interface and DCS Integration
The FBM222 P0926TL uses dual isolated PROFIBUS communication channels to exchange process data between Foxboro control processors and distributed field devices. Therefore, the module can interface with PROFIBUS-DP and PROFIBUS-PA instruments, motor drives, remote I/O stations, and smart field devices.
The module maps PROFIBUS process variables, device status information, and diagnostic data into Foxboro Distributed Control Interface (DCI) control blocks. In addition, the redundant architecture supports continuous communication during planned maintenance activities.
The PROFIBUS implementation provides channel-to-channel isolation to reduce electrical interference between network segments. Furthermore, the interface supports PROFIBUS PA connectivity through suitable physical layer components and network infrastructure.
Frequently Asked Questions
Q: Does the FBM222 P0926TL support redundant operation?
A: Yes. The module supports redundant configurations using redundant modules and compatible redundant Terminal Assemblies.
Q: Can the FBM222 P0926TL be replaced while the control system remains active?
A: Yes. The module supports hot-swappable maintenance procedures when installed in supported Foxboro DCS configurations.
Q: How many PROFIBUS devices can one FBM222 channel support?
A: Each PROFIBUS port supports up to 125 slave devices when repeaters are applied according to network design requirements.
Field Installation Guidelines
Install the FBM222 P0926TL in the designated Foxboro DCS mounting position with the approved backplane connection fully engaged.
Use PROFIBUS-rated shielded communication cables and maintain proper cable separation from high-voltage power wiring. Connect cable shields according to the plant grounding design to minimize electromagnetic interference.
Verify PROFIBUS termination resistors at the network endpoints before commissioning. Confirm node addressing, baud rate settings, and device diagnostic communication through the Foxboro engineering tools.
For redundant installations, verify that both communication paths, Terminal Assemblies, and field network segments operate independently before placing the system into normal control service.
