Overview

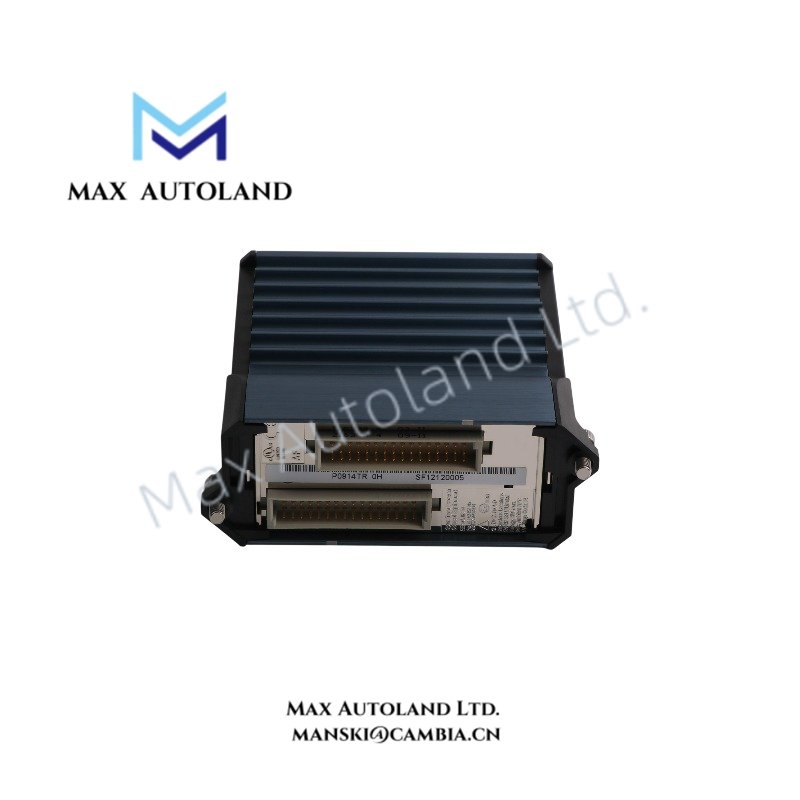

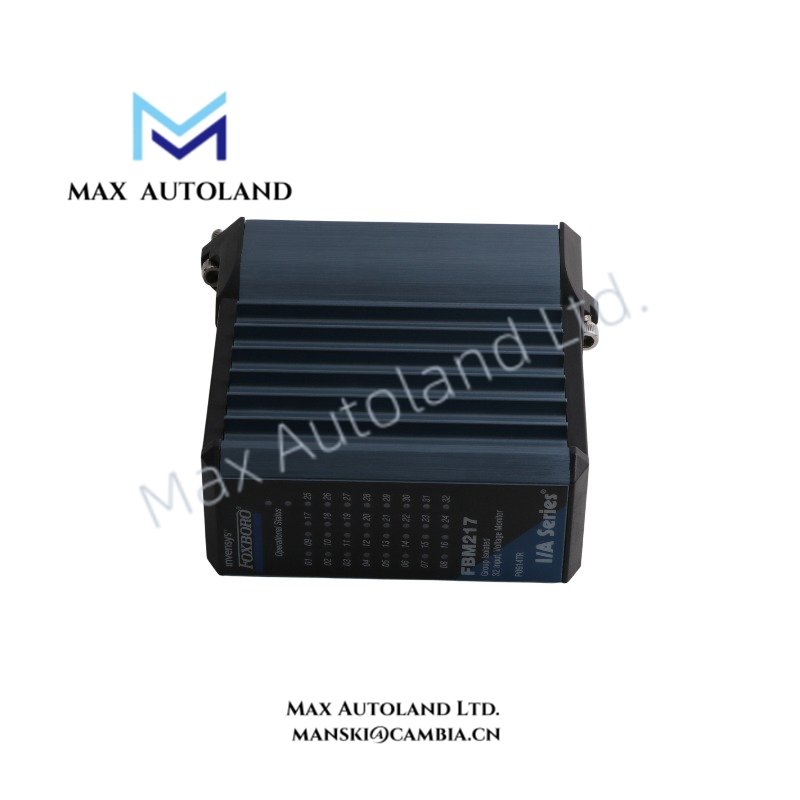

The Foxboro FBM217 RH916XZ, also cataloged as the FBM217 Discrete Input Module, operates as a dedicated hardware component for 32-channel DC discrete signal acquisition within the EcoStruxure Foxboro DCS field control network.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM217 RH916XZ |
| Brand | Foxboro |
| Product Type | Discrete Input Modules |
| System Platform | EcoStruxure Foxboro DCS / I/A Series |
| Input Channels | 32 group-isolated discrete input channels |
| Input Signal Type | 2-wire DC voltage discrete inputs |
| On-State Voltage Range | 15 VDC to 30 VDC |
| Off-State Voltage Range | 0 VDC to 5 VDC |
| Input Current | 2.2 mA typical at 30 VDC |
| On-State Source Resistance | 1 kOhm maximum at 15 VDC |
| Off-State Source Resistance | 100 kOhm minimum at 30 VDC |
| Isolation Type | Channel groups isolated from ground |
| Input Filtering | Configurable debounce filter: None, 4 ms, 8 ms, 16 ms, or 32 ms |
| Pulse Counting Capability | Up to 250 Hz |
| Redundancy Configuration | Supports single module or redundant pair configuration |
| Power Supply | 24 VDC (+5%, -10%) |
| Power Consumption | 3 W maximum at 24 VDC |
| Heat Dissipation | 5 W maximum at 24 VDC |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Altitude Range | -300 m to +3,000 m |
| Weight | Approximately 284 g |
| Environmental Rating | ISA S71.04 Class G3 harsh environment |
| Certifications | UL/UL-C Class I Division 2, EN 61326-1 Class A, ATEX/IECEx, ABS Type Approved, Bureau Veritas EC31 |
DCS Discrete Signal Processing and Channel Isolation
The Foxboro FBM217 uses group-isolated input architecture to process field contact and DC voltage signals. The module receives discrete states from external devices and transfers processed input data through the Foxboro fieldbus communication structure to Field Control Processors (FCP) or Fieldbus Communication Modules (FCM).
Additionally, the module provides configurable debounce filtering to reduce unwanted state changes caused by field signal noise. It also supports sequence of events (SOE) applications and pulse counting functions, allowing digital field signals to be monitored with defined timing characteristics.
Because the FBM217 operates within Foxboro DCS platforms, channel isolation design separates field input groups from system ground conditions. Therefore, it reduces electrical interaction between connected field devices and the control system interface.
Frequently Asked Questions
Q: Does the Foxboro FBM217 support redundant operation?
A: Yes. The FBM217 supports single module operation and redundant pair configuration within compatible Foxboro DCS architectures. Redundancy behavior depends on the installed control system configuration.
Q: What type of field signals can the FBM217 accept?
A: The FBM217 accepts 2-wire DC discrete input signals. The input detection range is 15 VDC to 30 VDC for the on-state and 0 VDC to 5 VDC for the off-state.
Q: Does the FBM217 provide input filtering for unstable field contacts?
A: Yes. The module provides configurable debounce filtering options including None, 4 ms, 8 ms, 16 ms, and 32 ms settings.
Field Installation Guidelines
Install the FBM217 RH916XZ module within the designated Foxboro I/O subsystem enclosure and verify compatibility with the installed FCP or FCM communication hardware.
Connect field wiring according to the approved Foxboro termination assembly documentation. Maintain proper separation between discrete input wiring and high-voltage power cables to reduce electromagnetic interference.
Use appropriate grounding practices for the control cabinet and verify that field cable shields follow the site electrical installation standard. Confirm input polarity and voltage levels before applying field power.
Before commissioning, check each discrete channel state through the DCS engineering interface. Verify debounce configuration, pulse counting parameters, and redundant module status when these functions are enabled.
