Overview

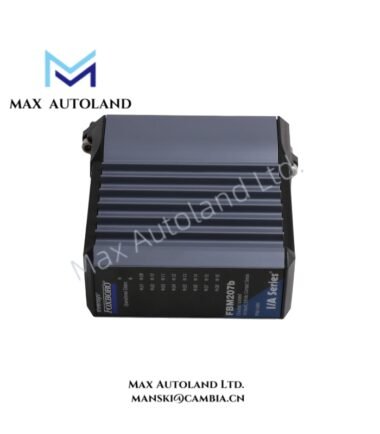

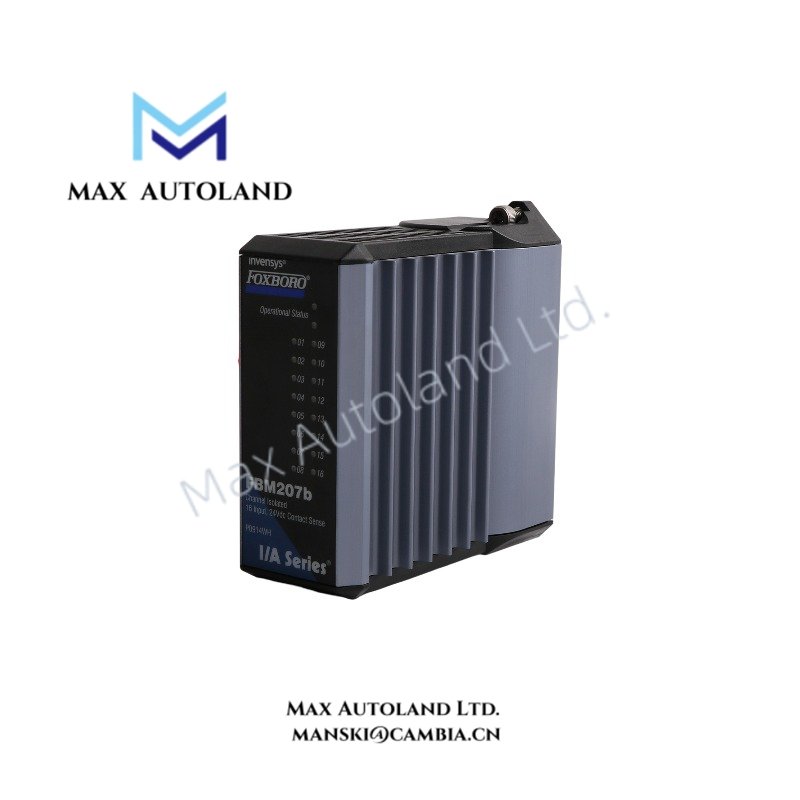

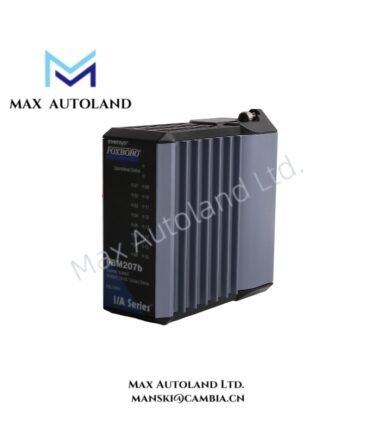

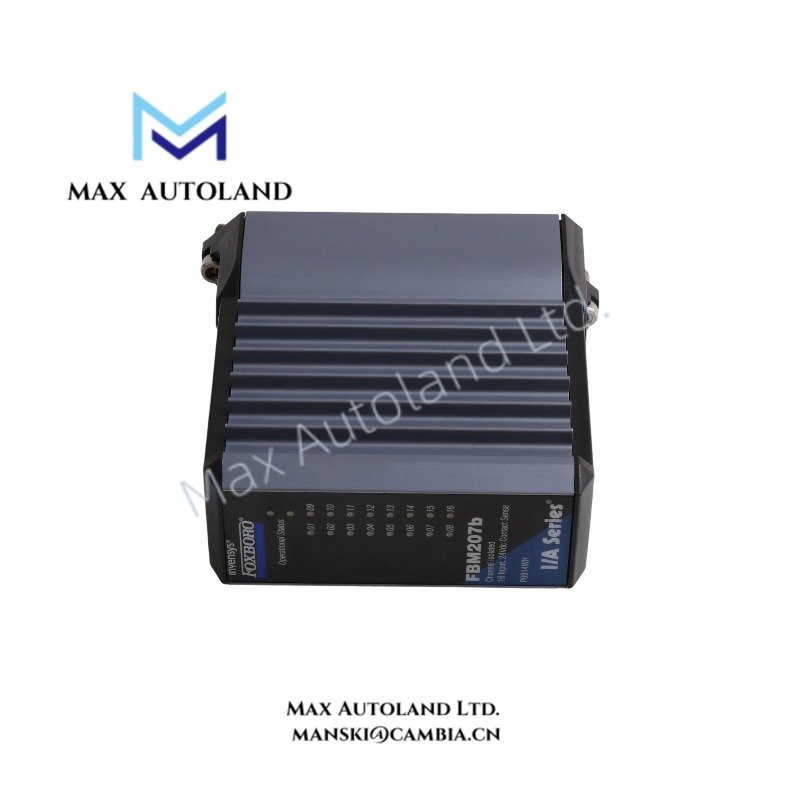

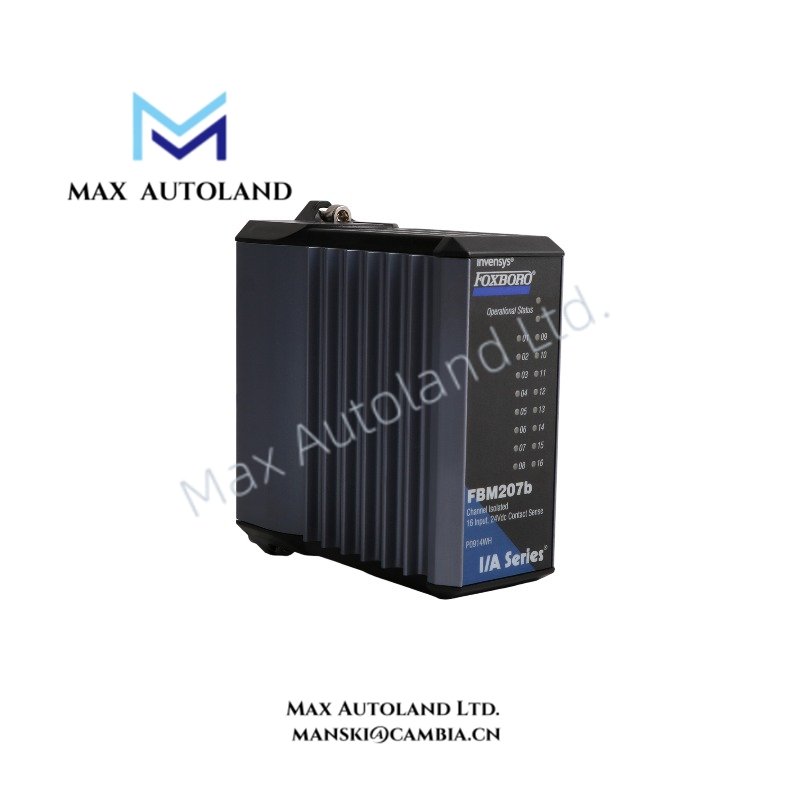

Configured for DC voltage monitoring and contact sensing in Foxboro I/A Series and EcoStruxure Foxboro DCS platforms, the Foxboro P0917JS (FBM207 16-Channel Discrete Input Module) provides direct physical signal acquisition from field switching devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM207 / P0917JS |
| Brand | Foxboro (Schneider Electric) |
| Origin | USA |
| Module Type | 16-Channel Discrete Input Module (Voltage Monitor / Contact Sense) |
| Input Channels | 16 isolated discrete input channels |
| Input Functions | DC voltage monitoring and dry contact sensing |
| Input Signal Type | 2-wire DC voltage input, dry contact, solid-state switch |
| Logic One Voltage | 15 to 60 VDC |
| Logic Zero Voltage | 0 to 5 VDC |
| Supported Field Voltage | 15 to 60 VDC, 120 VAC / 125 VDC, 240 VAC via Termination Assemblies |
| Typical Input Current | 1.4 mA at 5 to 60 VDC |
| Input Filtering | Configurable: no filter, 4 ms, 8 ms, 16 ms, or 32 ms debounce |
| Operating Voltage | 24 VDC (+5%, -10%) via baseplate |
| Power Consumption | Maximum 3 W |
| Heat Dissipation | Maximum 5.5 W |
| Isolation | Individual channel galvanic isolation from other channels and earth ground |
| Isolation Withstand | 600 VAC for 1 minute |
| Configuration | Single or redundant installation |
| Mounting Type | DIN rail or modular baseplate mounting |
| Design Feature | Hot-swappable module replacement without field wiring removal |
| Operating Temp | -20 deg C to +70 deg C |
| Environmental Rating | Class G3 harsh environment corrosion resistance |
| Status Indication | Front-panel module and channel status LEDs |
Foxboro DCS Signal Isolation and Discrete Processing
The FBM207 applies channel-to-channel isolation technology to separate each field input circuit from adjacent channels and system ground. Therefore, the module reduces electrical interference caused by field switching operations and maintains discrete signal integrity.
Moreover, the module supports configurable input filtering functions for applications requiring debounce processing. It executes discrete input logic functions, pulse counting operations, ladder logic processing, and Sequence of Events (SOE) data acquisition within the Foxboro I/A Series and EcoStruxure Foxboro DCS architecture.
The FBM207 also supports process control interfaces associated with industrial instrumentation systems. Unlike analog modules that handle 4-20 mA HART loop protocol signals, this module processes discrete electrical states from switches, contacts, and voltage sources while maintaining isolated input channels.
Frequently Asked Questions
Q: Does the FBM207 support both voltage monitoring and contact sensing functions?
A: Yes. The FBM207 operates as either a 16-channel DC voltage monitor or a 16-channel contact sense input module depending on the field configuration.
Q: How does the module protect input channels from electrical interference?
A: The FBM207 provides individual galvanic isolation for each input channel, separating field circuits from other channels and earth ground.
Q: Can the FBM207 be replaced while the system remains powered?
A: Yes. The module supports hot-swappable replacement on compatible Foxboro modular baseplate installations without disconnecting field wiring.
Field Installation Guidelines
- Install the FBM207 on the specified Foxboro modular baseplate or approved DIN rail mounting assembly.
- Verify that the baseplate provides the required 24 VDC operating supply before module insertion.
- Route discrete field wiring separately from high-voltage power cables to reduce electromagnetic interference.
- Connect shielded field cables according to the system grounding design and maintain proper separation between signal and power wiring.
- Use compatible Termination Assemblies when connecting field voltages above standard discrete input levels.
- Confirm input polarity, contact configuration, and voltage range before applying field signals.
- Check front-panel LED indicators after installation to verify module status and channel operation.
