Overview

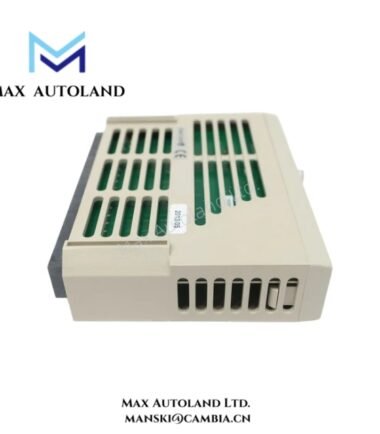

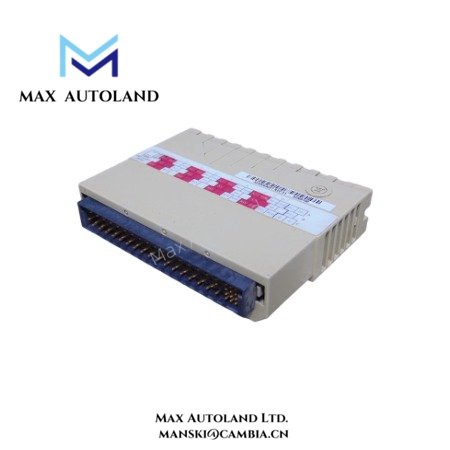

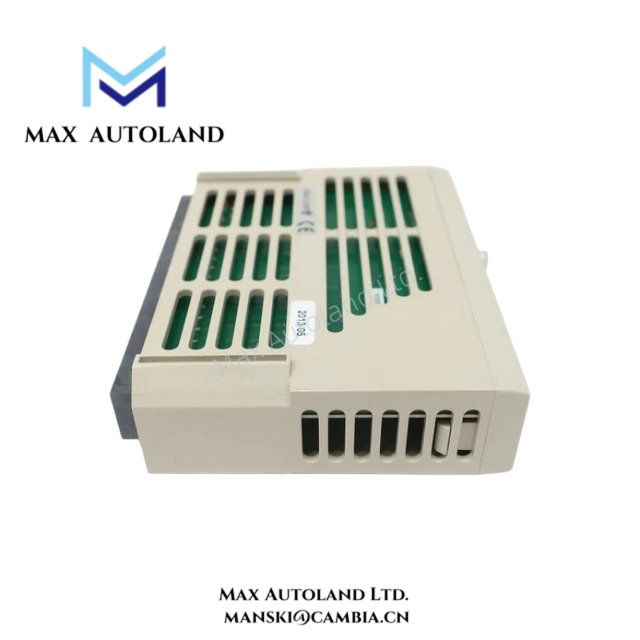

The 5X00063G01 from Emerson Ovation delivers precise HART communication through 8-channel analog outputs, and it actively supports 4–20 mA signaling for field devices, enabling operators to control processes accurately. Furthermore, its compact size of 160 mm × 120 mm × 75 mm allows technicians to install it easily even in crowded control panels.
Moreover, the 5X00063G01 integrates directly with Ovation DCS, providing real-time analog signal output and continuous monitoring. The module incorporates robust internal circuitry to preserve signal integrity, reduce noise interference, and ensure long-term industrial reliability. In addition, electrical isolation and signal conditioning actively enhance system stability and prevent cross-channel disturbances.
Specification
| Parameter | Specification |
|---|---|
| Model | 5X00063G01 |
| Manufacturer | Emerson Ovation |
| Category | HART Analog Output Module |
| Series | Ovation HART I/O Series |
| Dimensions (L×W×H) | 160 mm × 120 mm × 75 mm |
| Weight | 1.1 kg |
| Output Channels | 8 channels |
| Signal Type | 4–20 mA HART standard |
| Accuracy | ±0.1% of full scale |
| Output Load | Up to 500 Ω per channel |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | 24 VDC ±10% via Ovation backplane |
| Power Consumption | Typical 4 W, maximum 6 W |
| Interfaces | Backplane communication with Ovation controllers |
| Energy Storage | Internal capacitors for signal stability |
| Mounting | Rack or DIN rail compatible |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | 5–95% non-condensing |
| EMC Compliance | Industrial EMI/EMC standards |
FAQ
Q1: Is the 5X00063G01 brand new and original?
A1: Yes, the 5X00063G01 is 100% brand new and original Emerson Ovation, ensuring full factory reliability.
Q2: Do you have this module in stock?
A2: Yes, the 5X00063G01 is available in our inventory for immediate processing.
Q3: How fast can the module be shipped?
A3: Shipping typically occurs within 3 days to 2 weeks, depending on order quantity and destination.
Q4: Which logistics services are used for delivery?
A4: We commonly use DHL and other reliable carriers to ensure safe and timely delivery.
Q5: What is the module’s output channel capacity?
A5: The 5X00063G01 provides 8 analog output channels supporting standard 4–20 mA HART signals.
Q6: Can I return the module if there is a quality issue?
A6: Yes, we support returns within 30 days for any defective or damaged 5X00063G01 units.
