Overview

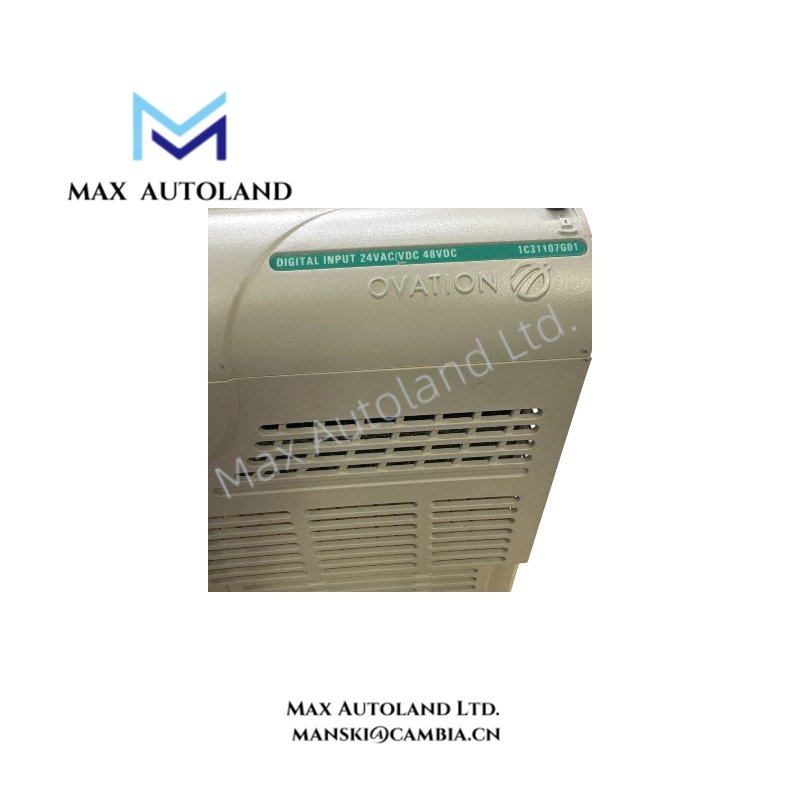

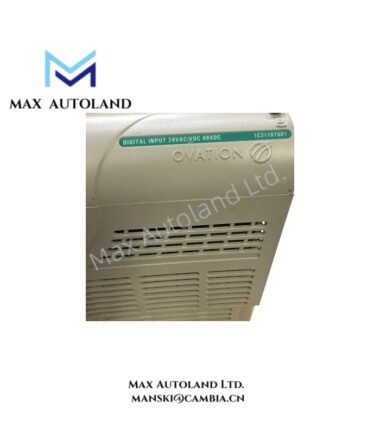

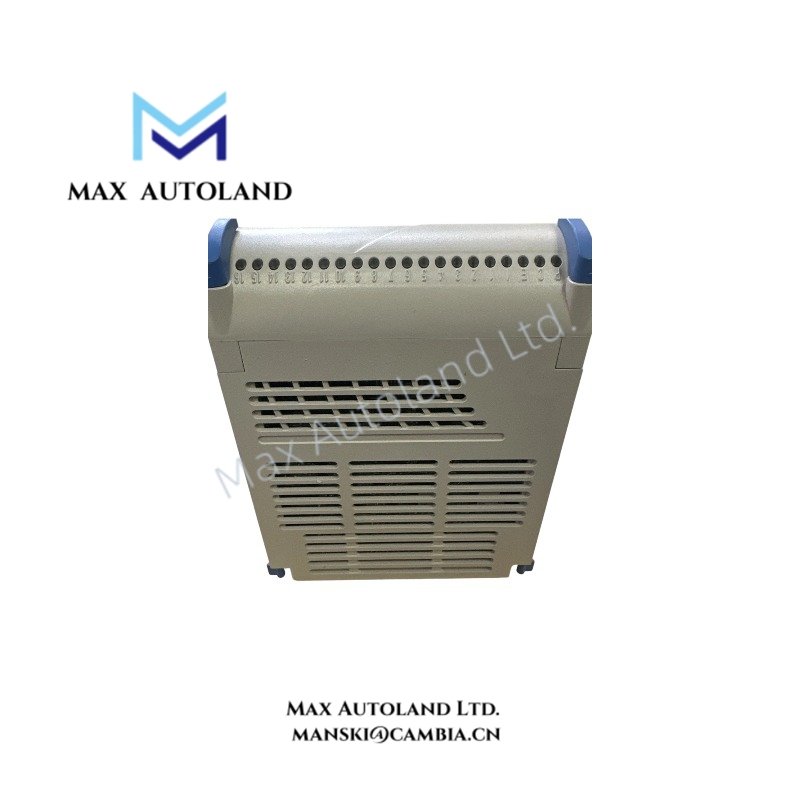

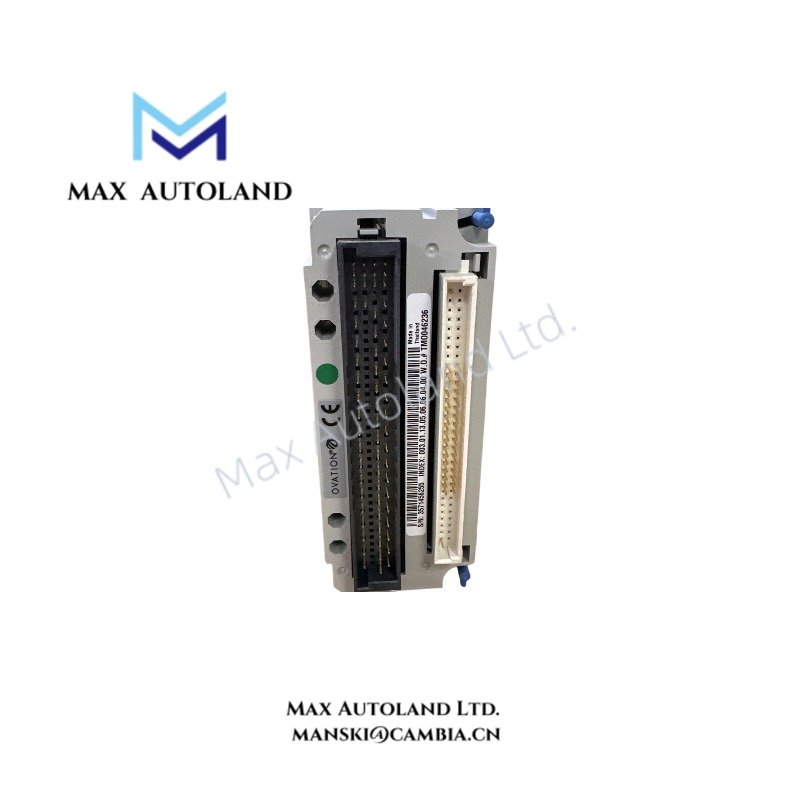

Configured for discrete field signal acquisition in the Emerson Ovation Distributed Control System, the Emerson Ovation 1C31107G01 (1C31107G01 Digital Input Electronic Module) provides direct electrical processing of 24 VAC, 24 VDC, and 48 VDC contact signals through the Ovation I/O subsystem.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31107G01 |
| Brand | Emerson |
| Product Type | Digital Input Electronic Module |
| System Platform | Emerson Ovation Distributed Control System |
| Origin | Thailand (reported) |
| Weight | Approx. 0.31 kg |
| Operating Temp | Industrial control environment |
| Power Consumption | Not specified in available documentation |
| Input Type | Digital / Discrete Input |
| Input Voltage Range | 24 VAC/VDC and 48 VDC |
| Number of Channels | 16 digital input channels |
| Input Configuration | Single-ended or differential via personality module |
| Compatible Personality Modules | 1C31110G01, 1C31110G02 |
| Communication Interface | Ovation I/O Bus |
| Installation Method | Ovation I/O rack mounting |
| Diagnostic Indication | Module status and channel status LEDs |
DCS Signal Processing and Channel Isolation Features
The Emerson Ovation 1C31107G01 processes binary field inputs from switches, relays, interlocks, and status contacts. The module transfers discrete input states to the Ovation controller through the I/O bus interface.
For Emerson Ovation DCS applications, the module architecture supports channel-to-channel isolation requirements for discrete signal acquisition. The input circuits are configured through dedicated personality modules, allowing selection between single-ended and differential field wiring arrangements.
The module does not provide analog measurement functions or 4-20 mA signal conversion. It is designed specifically for digital status monitoring within Ovation control architectures.
Compatible Ovation personality modules define the electrical input arrangement:
| Configuration | Electronic Module | Personality Module | Channels |
|---|---|---|---|
| 24/48 VAC/VDC Single-ended Input | 1C31107G01 | 1C31110G01 | 16 |
| 24/48 VAC/VDC Differential Input | 1C31107G01 | 1C31110G02 | 16 |
Frequently Asked Questions
Q: What field signals can the 1C31107G01 Digital Input Electronic Module process?
A: The module processes 24 VAC, 24 VDC, and 48 VDC discrete field signals for contact and voltage status monitoring.
Q: Does the 1C31107G01 support direct selection between single-ended and differential input modes?
A: No. The input mode is defined by the installed personality module, such as 1C31110G01 for single-ended input or 1C31110G02 for differential input.
Q: What diagnostic functions are available on the module?
A: The module provides LED indications for power status, communication status, module fault status, and individual channel input conditions.
Field Installation Guidelines
- Install the module only in compatible Emerson Ovation I/O rack positions.
- Verify that the installed personality module matches the required field wiring configuration before energizing the circuit.
- Separate digital input wiring from high-voltage power cables to reduce electrical interference.
- Apply proper cable shielding and grounding practices according to the site electrical installation standard.
- Check field contact wiring polarity and termination points before controller configuration.
- Confirm Ovation controller communication status after module installation through system diagnostics.
