Overview

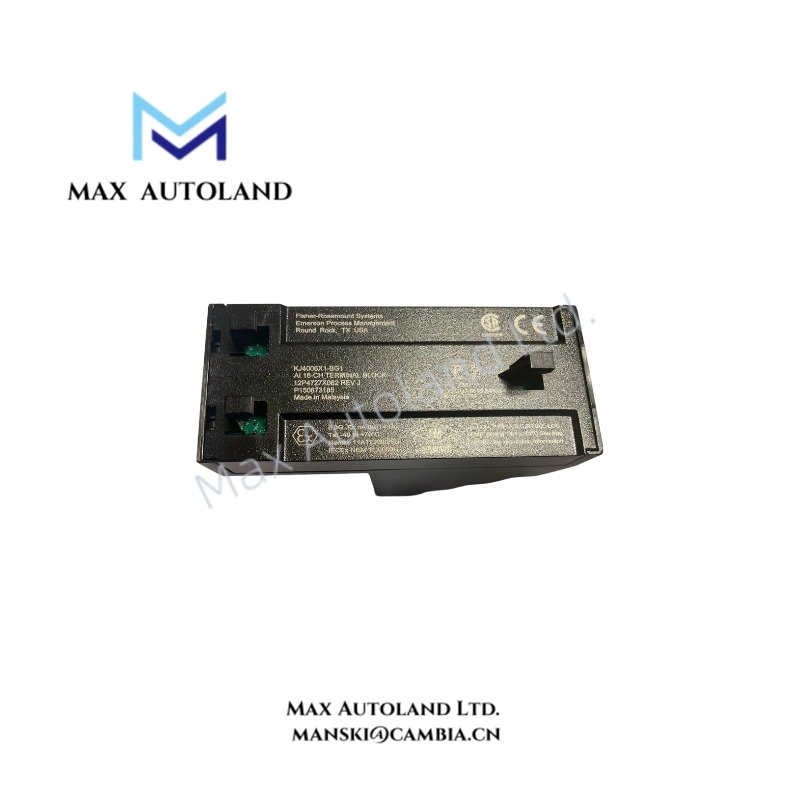

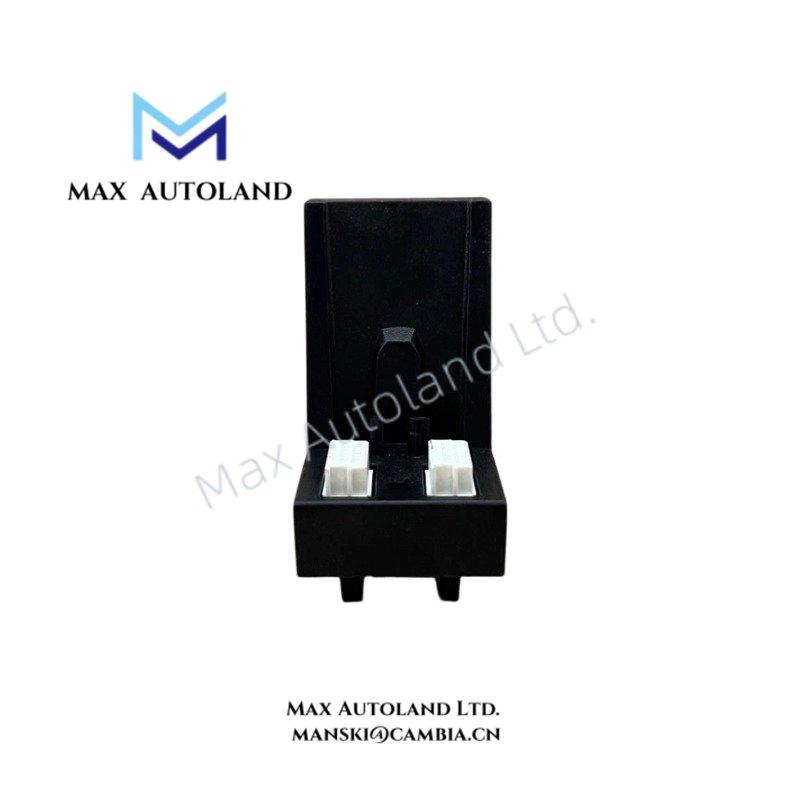

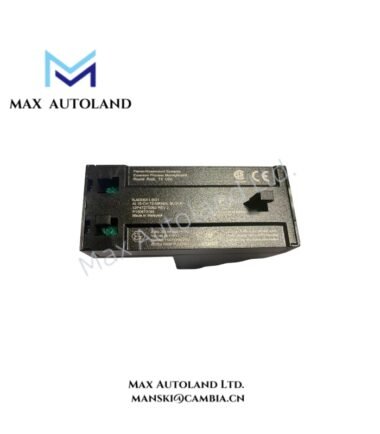

Configured for analog signal termination in the DeltaV S-Series I/O system, the Emerson KJ4006X1-BG1 (KJ4006X1-BG1 16-Channel Analog Input Terminal Block) provides direct physical and electrical connection between field analog devices and DeltaV I/O cards.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4006X1-BG1 |
| Brand | Emerson Automation Solutions |
| Product Type | 16-Channel Analog Input Terminal Block |
| Product Series | DeltaV S-Series DCS |
| Origin | USA |
| Weight | Approx. 0.18 kg to 0.55 kg |
| Dimensions | Approx. 12.0 cm x 7.0 cm x 3.2 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Field circuit rating: 30 VDC at 100 mA |
| Channel Capacity | 16 analog input channels |
| Field Circuit Rating | 30 VDC at 100 mA |
| Hazardous Area Certification | IECEx FMG 13.0015U / FM13ATEX0034U |
| Mechanical Shock | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Humidity Range | 5% to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 harsh environment |
Process Signal Interface and Isolation Characteristics
The Emerson KJ4006X1-BG1 operates as a field termination component for DeltaV S-Series analog input channels. It routes external analog signals to compatible I/O cards through the system backplane connection. Therefore, correct terminal block selection depends on the installed I/O card type and mechanical keying configuration.
For Emerson DeltaV process control systems, analog channel design commonly supports transmitter loop applications using 4-20 mA HART loop protocol. The terminal block provides the physical termination path, while signal conditioning and communication functions remain controlled by the associated DeltaV I/O module.
The design supports channel-to-channel isolation requirements defined by the connected I/O architecture. Additionally, the mechanical rotary keying system prevents installation with incompatible I/O card configurations.
Frequently Asked Questions
Q: Is the KJ4006X1-BG1 a standalone analog input processing module?
A: No. The KJ4006X1-BG1 is a 16-channel analog input terminal block. It provides field wiring termination and interfaces with compatible DeltaV S-Series I/O modules.
Q: Can the KJ4006X1-BG1 be installed in hazardous areas?
A: Yes. The terminal block carries hazardous area certifications including IECEx FMG 13.0015U and FM13ATEX0034U for specified installation environments.
Q: Does the terminal block require user calibration?
A: No. The terminal block contains no user-serviceable calibration functions. Signal processing and calibration functions are handled by the connected DeltaV I/O hardware.
Field Installation Guidelines
Install the KJ4006X1-BG1 according to the DeltaV S-Series hardware installation manual and approved system drawings.
Verify the following conditions before installation:
- Confirm the terminal block matches the specified DeltaV S-Series analog input I/O module.
- Check rotary keying alignment before mechanical engagement.
- Use proper field wiring segregation between analog signal cables and high-voltage power conductors.
- Connect cable shields according to the plant grounding standard to reduce electromagnetic interference.
- Inspect terminal connections for correct polarity and secure mechanical fastening.
- Maintain environmental protection requirements when installing in corrosive or hazardous locations.
