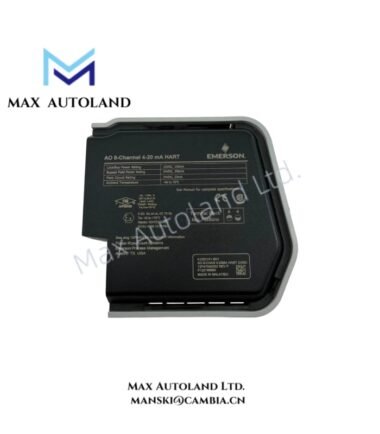

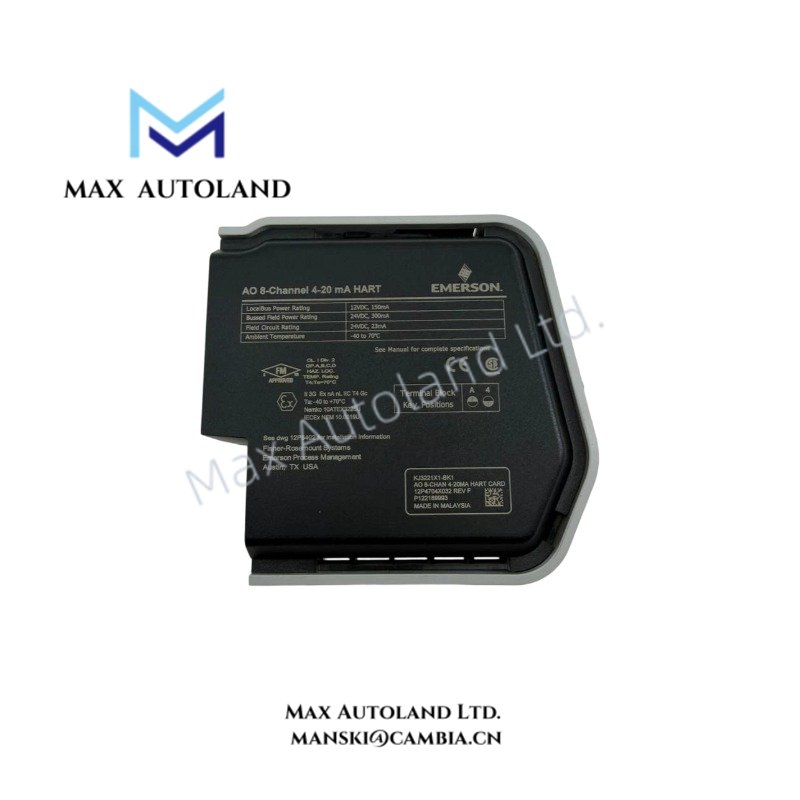

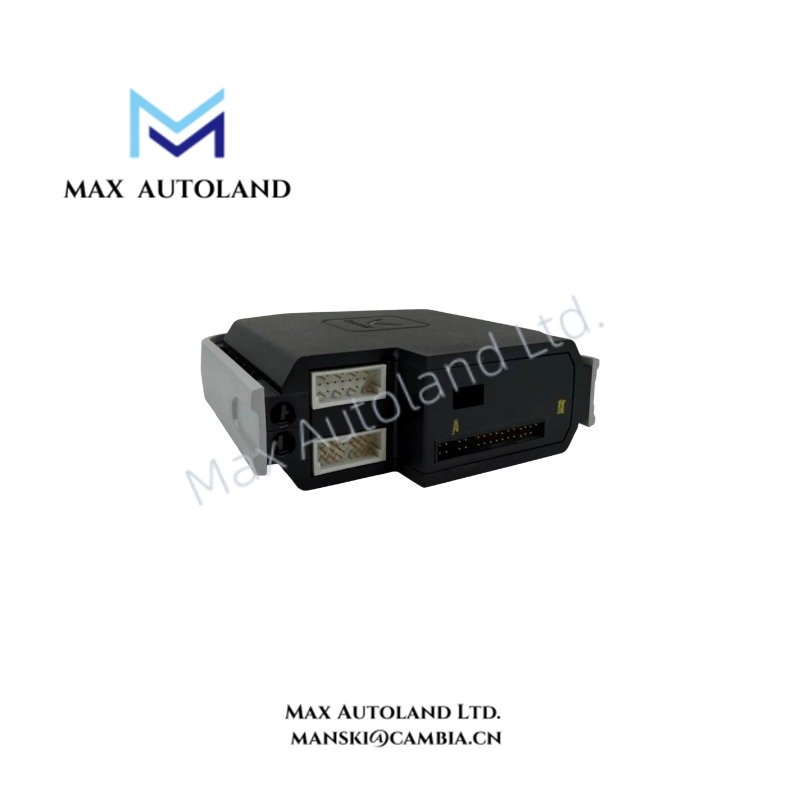

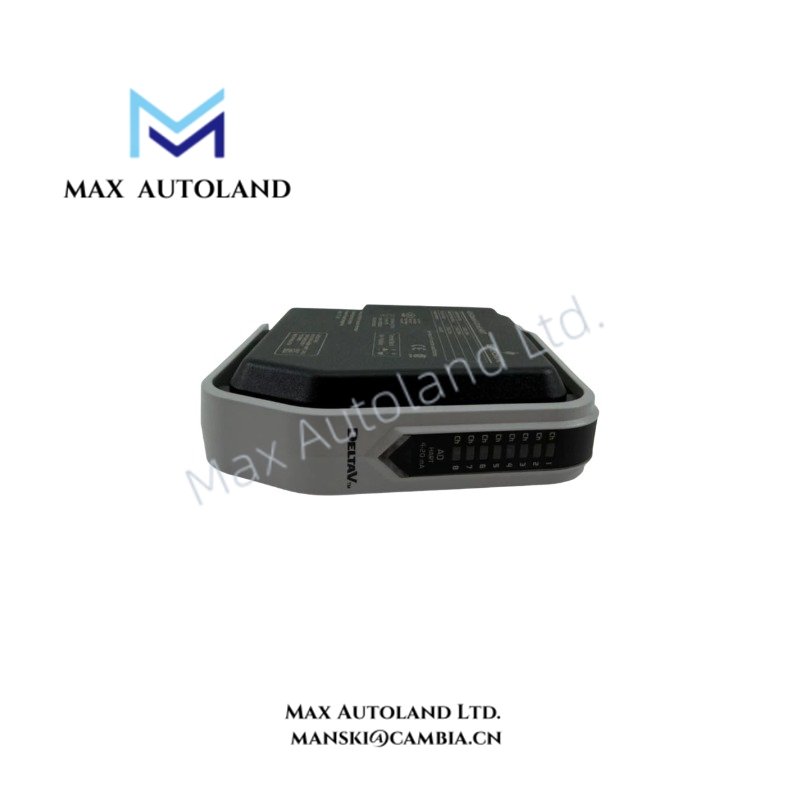

Emerson KJ3221X1-BK1 12P4704X032 SE4005S2B1 Analog Output Card

Overview

Configured for 4-20 mA HART signal execution in the Emerson DeltaV Distributed Control System, the Emerson KJ3221X1-BK1 12P4704X032 SE4005S2B1 (KJ3221X1-BK1 Analog Output Card) provides direct physical and electrical output control for process field devices.

Hardware Specifications

4-20 mA HART Process Control Interface

The Emerson KJ3221X1-BK1 module provides eight analog output channels that generate continuous 4-20 mA DC control signals for connected field devices. Each channel supports HART communication, therefore the module can transmit analog control commands while exchanging digital configuration and diagnostic information through the same signal loop.

The module supports DeltaV control strategies that require analog regulation of actuators, control valves, variable speed drives, and positioners. Additionally, the output channels maintain separated signal processing paths for individual field loop management.

The HART loop protocol allows connected intelligent instruments to provide device status, configuration parameters, and diagnostic information. As a result, maintenance personnel can access field device information without additional communication wiring.

Frequently Asked Questions

Q: Does the KJ3221X1-BK1 support HART communication on all output channels?
A: Yes. The module provides HART capability through its eight 4-20 mA analog output channels for compatible field instruments.

Q: What type of field devices can connect to this analog output card?
A: The module connects to devices requiring 4-20 mA control signals, including control valves, actuators, positioners, and variable speed drive interfaces.

Q: What terminal connection method does the module use?
A: The module uses a removable terminal block with 12-22 AWG screw connections for field wiring.

Field Installation Guidelines

Install the KJ3221X1-BK1 module in the designated DeltaV I/O carrier position according to system configuration requirements.

Verify the +24 VDC supply polarity before applying power to the module. Connect field wiring using the removable terminal block and maintain correct polarity for each 4-20 mA output channel.

Separate analog signal cables from high-voltage power cables and switching circuits to reduce electrical interference. Use shielded instrumentation cables where required by the site wiring standard, and terminate cable shields according to the plant grounding practice.

Before commissioning, verify each output channel loop current, field device response, and HART communication status through the DeltaV engineering interface.
