Overview

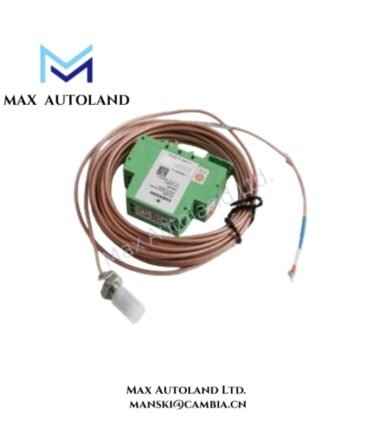

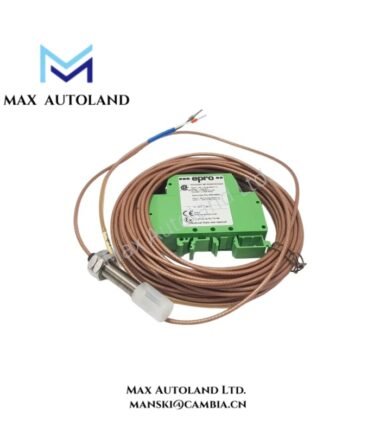

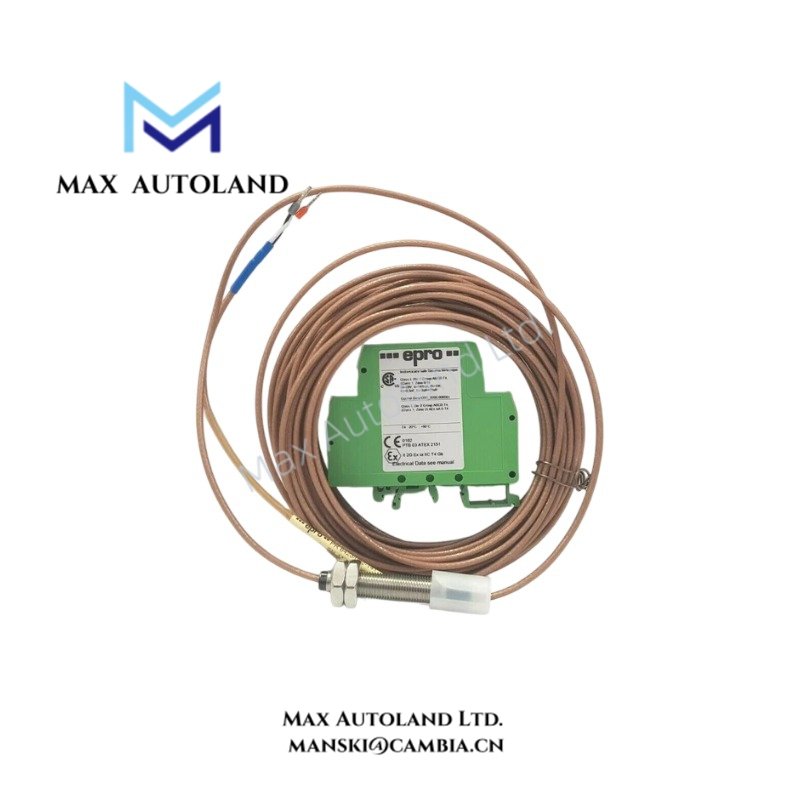

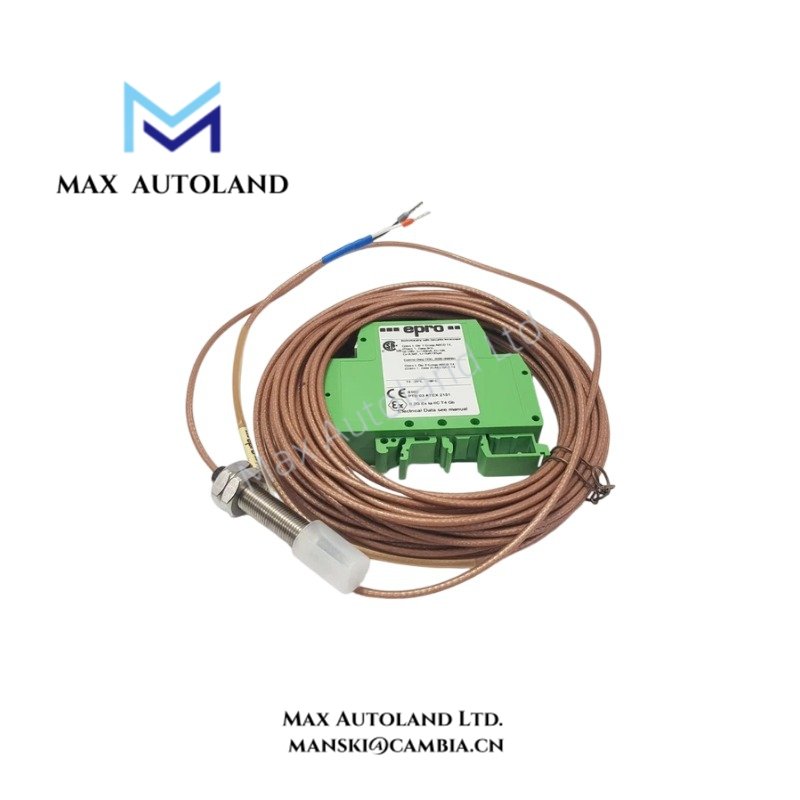

The Emerson EPRO CON010, also cataloged as the CON010 signal converter, operates as a dedicated hardware component for eddy current displacement signal conditioning within EPRO machinery protection monitoring systems. It processes proximity probe signals from sensors such as the PR6423/010-120 and converts gap-dependent measurements into proportional electrical outputs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CON010 |
| Brand | Emerson EPRO |
| Origin | Germany |
| Operating Temp | Converter: -30 to +100 deg C (typical operating range) |
| Product Type | Eddy Current Signal Converter |
| Compatible Probe | PR6423/010-120 Eddy Current Proximity Probe |
| Input Signal | High-frequency proximity probe signal |
| Output Signal | Conditioned proportional electrical output |
| Frequency Range (-3 dB) | 0 Hz to 20,000 Hz |
| Input Power Supply | -23 to -32 VDC typical proximity system supply range |
| Measurement Application | Shaft vibration, axial displacement, eccentricity monitoring |
Emerson EPRO Eddy Current Signal Conditioning
The CON010 receives high-frequency signals generated by an eddy current proximity probe and performs signal conversion for machinery monitoring applications. The measurement loop depends on the probe tip-to-target gap variation, where displacement changes modify the electromagnetic field and produce a corresponding electrical response.
The converter configuration supports EPRO machinery monitoring architectures where signal scaling, linearization, and transmission to monitoring or protection equipment are required. Proper signal conditioning maintains the relationship between mechanical movement and electrical output data.
For Emerson EPRO systems, installation considerations include 4-20 mA signal loop compatibility, channel-to-channel isolation requirements, and correct integration with distributed control or machinery protection interfaces. Signal wiring practices must maintain shielding continuity and minimize electromagnetic interference from high-frequency equipment.
Frequently Asked Questions
Q: What type of signal does the CON010 process?
A: The CON010 processes high-frequency signals from EPRO eddy current proximity probes and converts the measured gap variation into a proportional electrical output.
Q: Which mechanical parameters can be measured with the CON010 and PR6423/010-120 combination?
A: The measurement loop can be configured for parameters including radial shaft vibration, axial displacement, and shaft eccentricity.
Q: Does the CON010 require physical contact with the rotating shaft?
A: No. The system uses an eddy current proximity probe that measures the distance between the probe tip and conductive target surface without direct mechanical contact.
Field Installation Guidelines
Install the PR6423/010-120 probe with correct mechanical alignment toward the conductive shaft target surface. Maintain proper probe mounting position and secure the threaded connection according to the equipment installation requirements.
Route probe cables separately from high-current power cables and switching sources to reduce electromagnetic interference. Maintain cable shielding and connect the shield according to the machinery monitoring system grounding design.
Before operation, verify the converter wiring, probe connection, and signal polarity. Check the probe gap voltage and output response during commissioning to confirm correct displacement measurement behavior.
