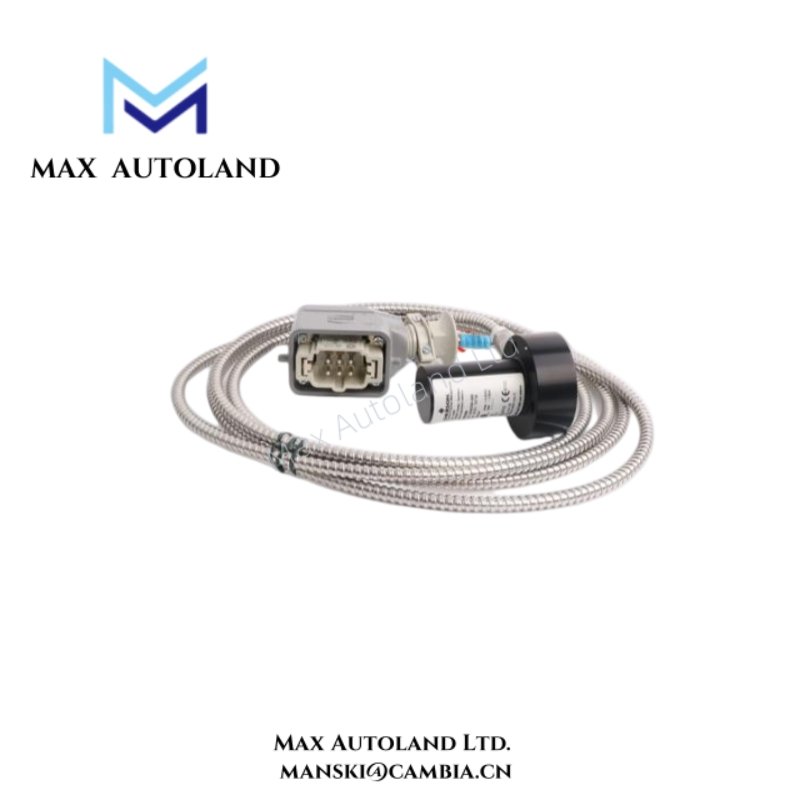

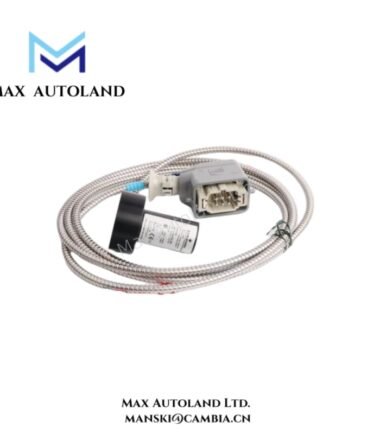

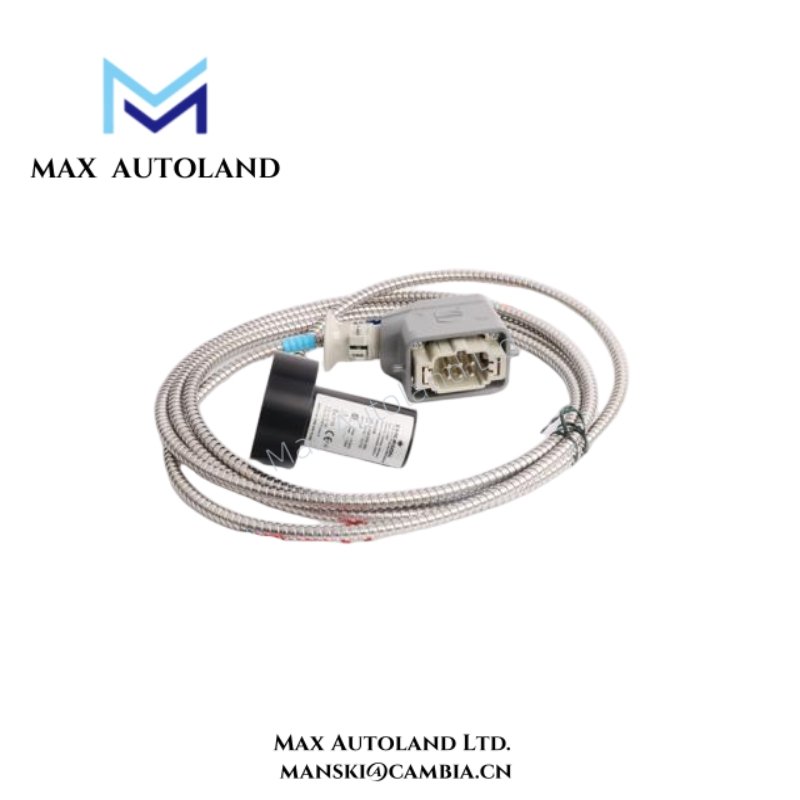

Overview
This sensor delivers high-fidelity signals for predictive maintenance programs, enabling engineers to detect bearing wear, imbalance, or misalignment early. Therefore, it contributes to enhanced machinery availability and reduced downtime.
Specification
| Parameter | Specification |
|---|---|
| Measurement Type | Electrodynamic velocity, providing precise real-time vibration information |
| Frequency Range | 10 Hz to 10 kHz, covering both low and high-speed equipment effectively |
| Sensitivity | 100 mV/mm/s nominal, ensuring accurate signal output for analysis |
| Linearity | ±1% of full scale, therefore maintaining consistent measurement across range |
| Operating Temperature | –20°C to +120°C, allowing reliable operation in harsh environments |
| Shock Limit | 500 g peak, protecting the sensor during sudden mechanical impacts |
| Vibration Limit | 50 g continuous, ensuring stable operation under machine vibration |
| Housing Material | Stainless steel, offering corrosion resistance and long-term durability |
| Connector Type | 10–32 coaxial or equivalent, enabling easy system integration |
| Mounting | Stud mount standard; in addition, optional flange provides installation flexibility |
| Cable | Shielded, 2 m standard, therefore minimizing electrical noise and extendable in field |
FAQ
It measures vibration velocity in rotating machinery, helping engineers detect misalignment, imbalance, and bearing wear early.
Q2: Can this sensor operate in high-temperature environments?
Yes, it reliably functions between –20°C and +120°C, making it suitable for turbines, compressors, and motors.
Q3: How is the sensor mounted?
The standard stud mount allows quick installation; in addition, an optional flange provides flexible mounting options.
Q4: Is the sensor compatible with existing monitoring systems?
Yes, it works with Emerson protection systems and most third-party condition monitoring platforms.
Q5: How often does the sensor require maintenance?
Because the electrodynamic design eliminates moving parts, routine maintenance is minimal; therefore, inspection is usually limited to visual checks.
