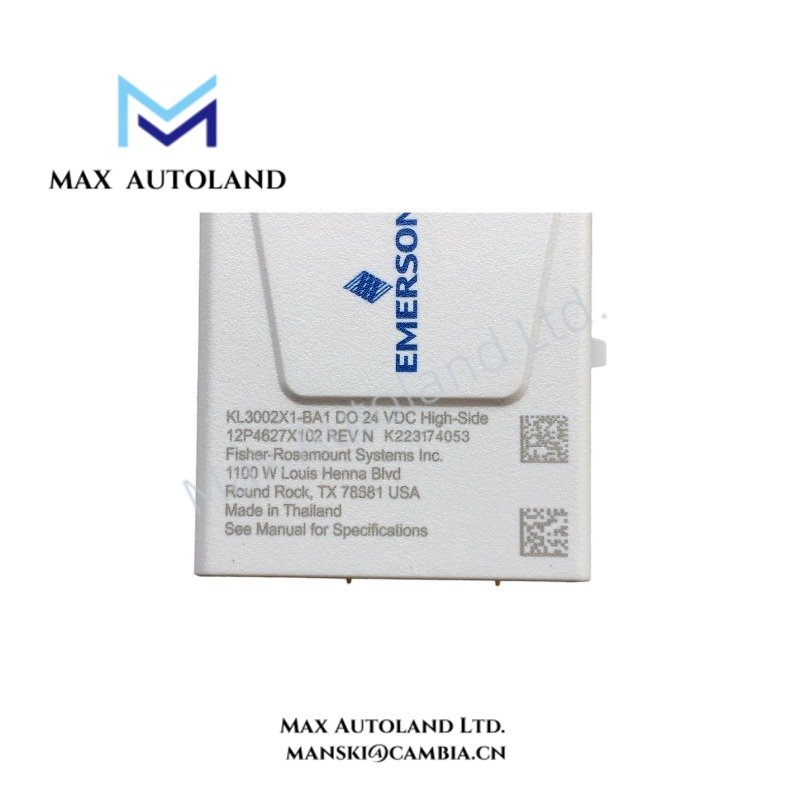

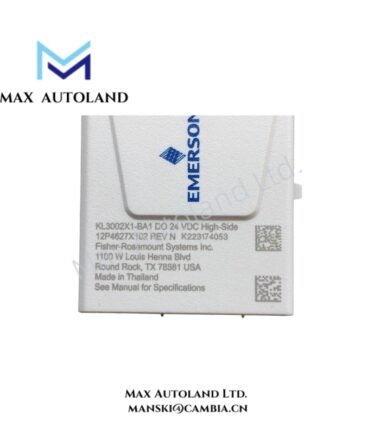

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KL3002X1-BA1 |
| Brand | Emerson DeltaV |
| Product Type | Discrete Output High-Side CHARM Module |
| System Platform | Emerson DeltaV Distributed Control System |
| Module Function | 24 VDC discrete output signal execution |
| CHARM Type | DO High-Side CHARM |
| CHARM Bus Power Rating | 6.3 VDC at 32 mA |
| Field Circuit Rating | 24 VDC at 5 mA per channel |
| Terminal Block Key Position | 3C |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Tolerance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Enclosure Rating | IP20 |
| Power Consumption | CHARM Bus supply: 6.3 VDC at 32 mA |
Emerson DeltaV Electronic Marshalling and Output Execution
The KL3002X1-BA1 integrates with the DeltaV Electronic Marshalling architecture to execute discrete output commands without traditional point-to-point cabinet wiring. It receives control commands through the CHARM baseplate communication structure and provides electrical switching for connected field loads.
The module supports channel-level diagnostics for output circuit monitoring. In addition, the hot-swappable design allows module replacement while maintaining powered system operation when installed within a compatible DeltaV CHARM infrastructure.
For Emerson process control applications, the module architecture supports channel-to-channel isolation concepts used in distributed I/O systems. Furthermore, the DeltaV CHARM design maintains flexible signal assignment by separating field termination from controller I/O configuration.
Frequently Asked Questions
Q: What type of field signals does the Emerson DeltaV KL3002X1-BA1 process?
A: The KL3002X1-BA1 processes 24 VDC discrete output signals and provides high-side switching for connected field devices such as relays, indicators, and solenoid valves.
Q: Does the KL3002X1-BA1 support hot replacement?
A: The module supports hot-swappable replacement when installed in a compatible DeltaV CHARM system. Installation procedures must follow Emerson DeltaV system maintenance requirements.
Q: What power source does the module use for CHARM operation?
A: The module receives CHARM Bus power rated at 6.3 VDC with a current consumption of 32 mA.
Field Installation Guidelines
- Install the KL3002X1-BA1 only on compatible DeltaV CHARM baseplates and verify correct terminal block key position before mounting.
- Confirm field wiring polarity before connecting 24 VDC discrete output circuits.
- Separate low-level communication wiring from high-current field wiring to reduce electrical interference.
- Apply proper shield grounding practices according to the site electrical installation standard.
- Verify field device load characteristics match the module output rating before energizing the circuit.
- Follow Emerson DeltaV hardware installation manuals for commissioning, diagnostics, and replacement procedures.
