Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | VE4002S1T2B3 |
| Brand | Emerson DeltaV |
| Product Type | Series 2 Discrete Output Card |
| Origin | United States |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Not specified |
| Channel Count | 8 Channels |
| Output Type | High-side digital output |
| Rated Output Voltage | 24 VDC |
| Physical Interface | 16-pin mass termination block |
| Isolation Method | Optoelectronic isolation between logic bus and field circuits |
| Hot-Swap Support | Supported for online removal and replacement under power |
Emerson DeltaV Process I/O Signal Management

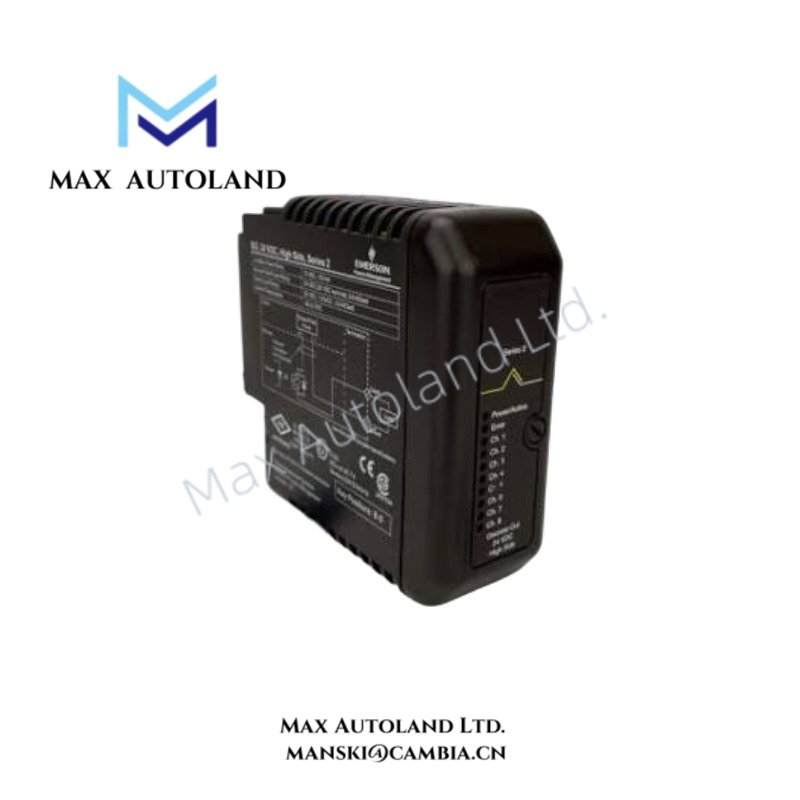

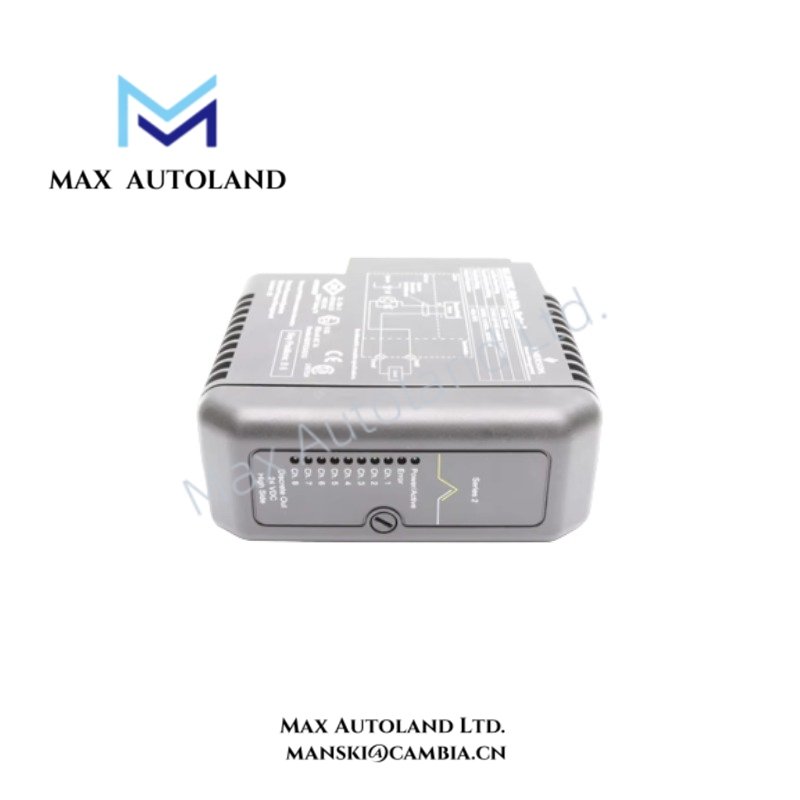

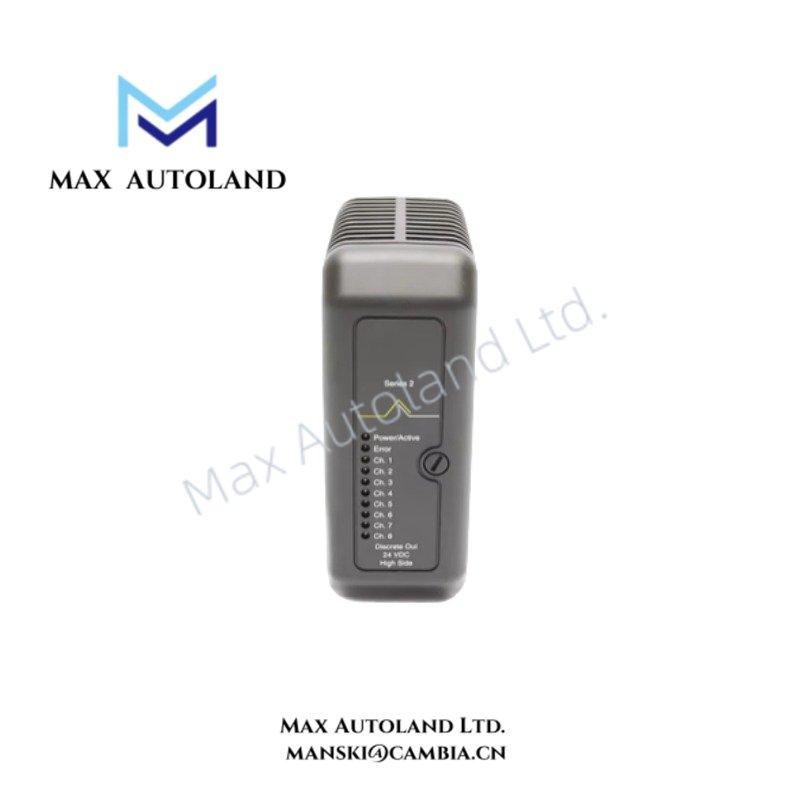

The VE4002S1T2B3 performs discrete output control through 24 VDC high-side switching circuits. It transfers controller commands from the DeltaV I/O subsystem to field devices, including solenoid valves, actuators, and status indicators.
The module uses optoelectronic barriers to separate internal logic circuits from field wiring. Therefore, electrical disturbances on field loops have reduced influence on the control-side electronics.
In addition, the module supports predefined output states during communication loss conditions. The controller configuration determines the output response when the communication link becomes unavailable.
Frequently Asked Questions
Q: Does the VE4002S1T2B3 support hot-swap replacement?
A: Yes. The module supports online removal and replacement under system power according to DeltaV Series 2 I/O operating procedures. Field wiring and system configuration must follow approved maintenance practices.
Q: What type of output signals does the VE4002S1T2B3 provide?
A: The module provides 8 channels of high-side discrete output switching with a 24 VDC field output interface.
Q: How does the module isolate field circuits from the DeltaV controller bus?
A: The module uses optoelectronic isolation barriers to separate field-side output circuits from internal logic communication paths.
Field Installation Guidelines
- Install the module in the designated DeltaV Series 2 I/O carrier position according to Emerson installation documentation.
- Verify the 16-pin mass termination block wiring before applying field power.
- Separate digital output wiring from high-voltage power cables to reduce electrical interference.
- Connect field cable shields according to the site grounding standard.
- Confirm actuator, valve, or indicator polarity before energizing the 24 VDC output circuits.
- Check controller configuration to verify the programmed fail-state behavior matches the field device requirements.
