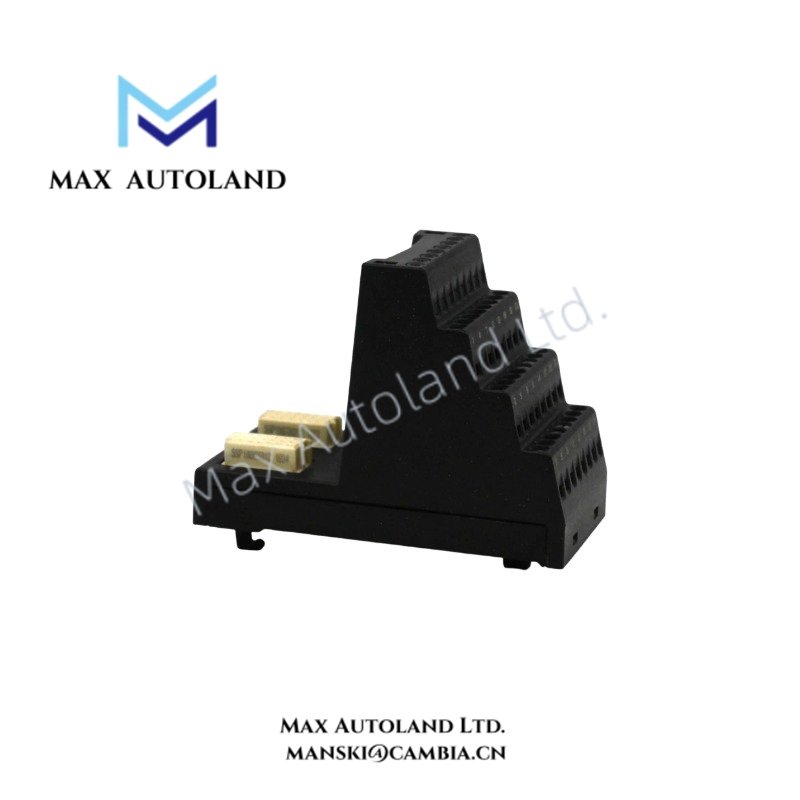

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4006X1-BL1 |
| Brand | Emerson DeltaV |
| Product Type | Analog Input Terminal Block |
| Origin | Not specified |
| Weight | Approx. 200 g |
| Dimensions | Approx. 100 mm x 50 mm x 25 mm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Field power rating: 30 VDC at 100 mA for nL and ic installations; 60 VDC at 1.0 A for ec installations |
| Channel Configuration | 8 isolated analog input channels |
| Signal Connection | 2-wire / 4-wire field wiring |
| Signal Range | -10 V to +10 V or 4 mA to 20 mA, user-configurable |
| Input Impedance | 10 kOhm typical |
| Isolation Voltage | 1500 VDC between channels and field power |
| Relative Humidity | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Shock Resistance | 10 g, half sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |

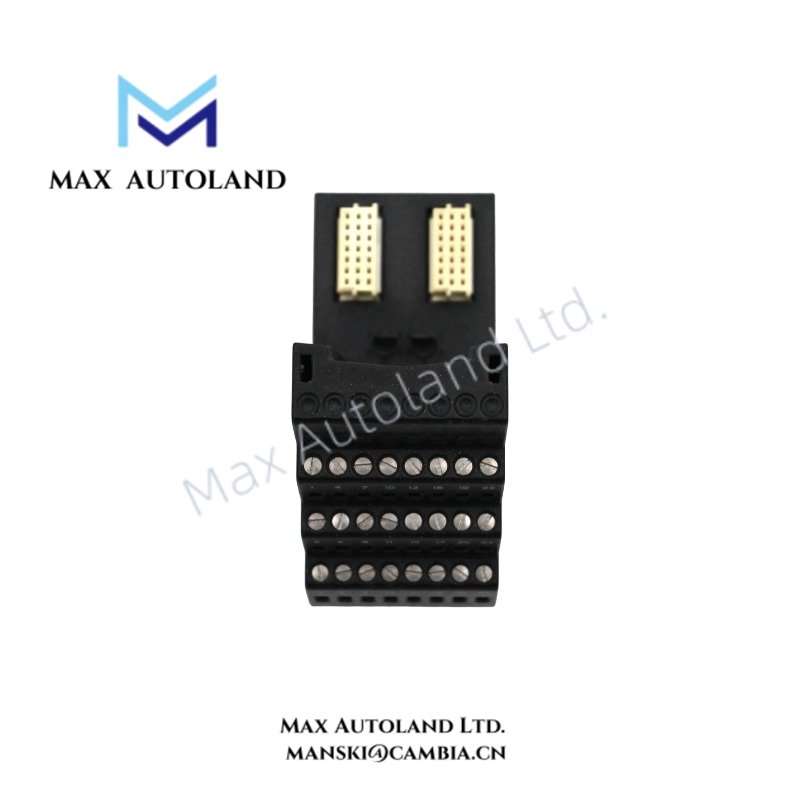

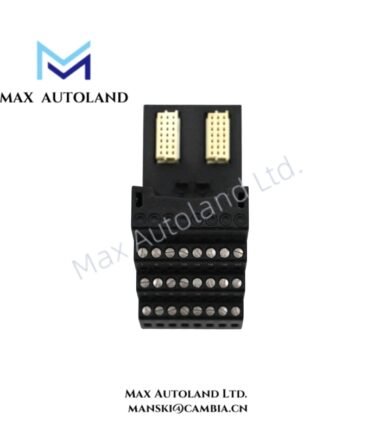

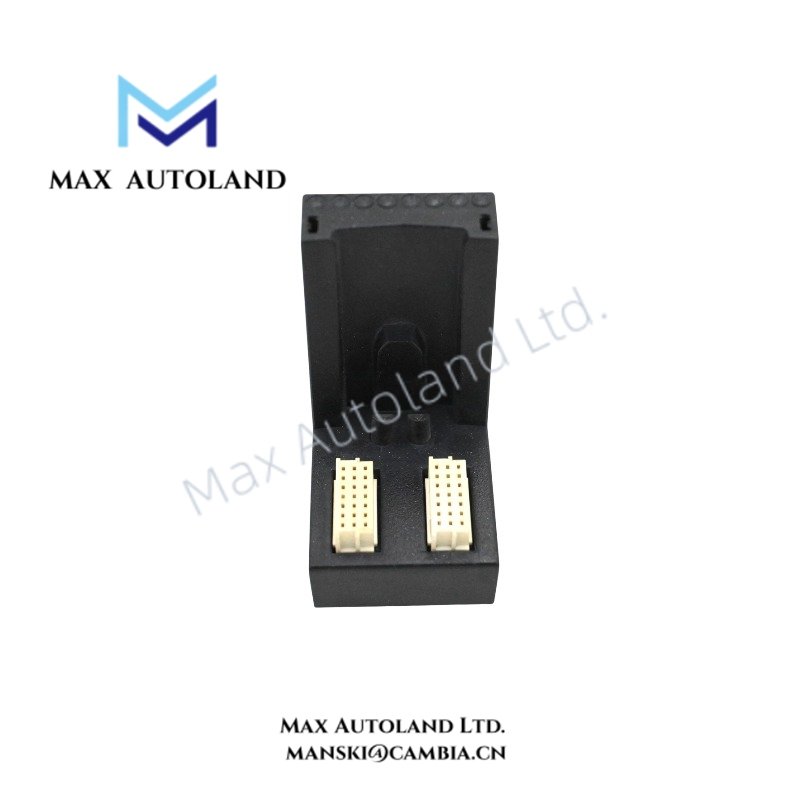

Emerson DeltaV Analog Signal Termination and Isolation
The KJ4006X1-BL1 terminal block supports DeltaV analog input signal termination with isolated field wiring interfaces. It accepts configurable current and voltage inputs, including 4 mA to 20 mA loops and -10 V to +10 V analog signals.
Furthermore, the module structure supports channel-to-channel isolation, which separates individual field input circuits from each other and from field power. This design reduces signal interference in distributed process control installations.
The terminal block is designed for integration with Emerson DeltaV I/O architectures, supporting process instrumentation connections that require analog signal conditioning and electrical separation. It also aligns with Emerson DeltaV process control practices involving HART-compatible instrumentation when paired with suitable DeltaV input modules.
Frequently Asked Questions
Q: Does the KJ4006X1-BL1 provide direct analog signal processing?
A: No. The KJ4006X1-BL1 functions as an analog input terminal block for field signal termination. Signal processing is performed by the associated DeltaV I/O module.
Q: What field signals can be connected to this terminal block?
A: The terminal block supports configurable analog input connections, including -10 V to +10 V voltage signals and 4 mA to 20 mA current signals.
Q: Does the KJ4006X1-BL1 provide electrical isolation?
A: Yes. The unit provides 1500 VDC isolation between channels and field power to separate connected field circuits.
Field Installation Guidelines
- Install the terminal block according to Emerson DeltaV hardware installation procedures and approved cabinet layouts.
- Verify terminal assignments before connecting field instruments to prevent incorrect signal routing.
- Use shielded instrumentation cables where required by the process environment.
- Connect cable shields according to the site grounding standard to reduce electromagnetic interference.
- Separate analog signal wiring from high-voltage power cables and switching circuits.
- Confirm field power ratings match the selected installation classification before energizing the system.
- Inspect terminal connections for correct tightening and secure mechanical retention before system startup.
