Overview

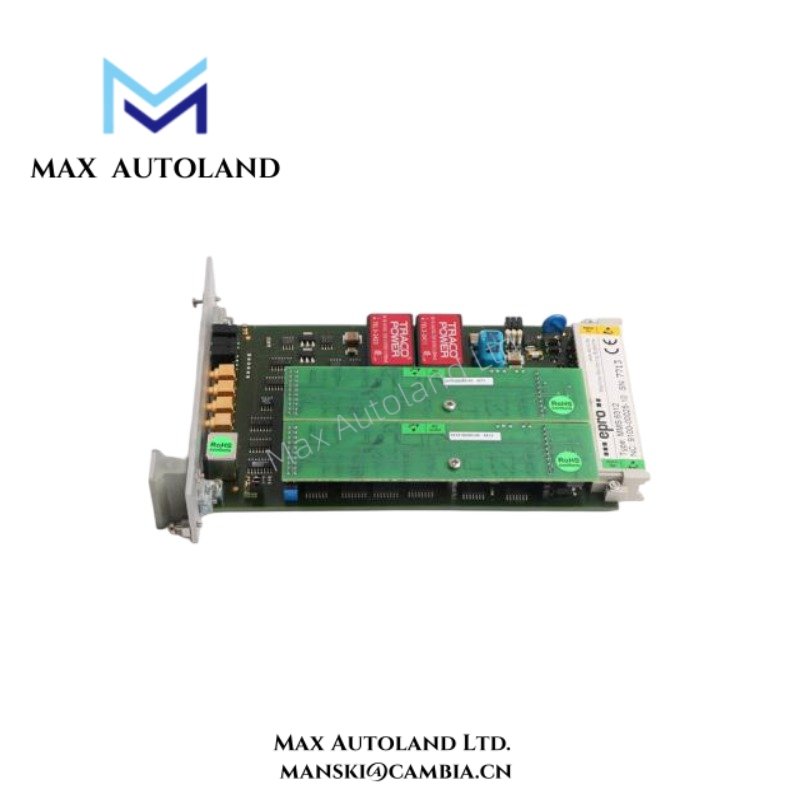

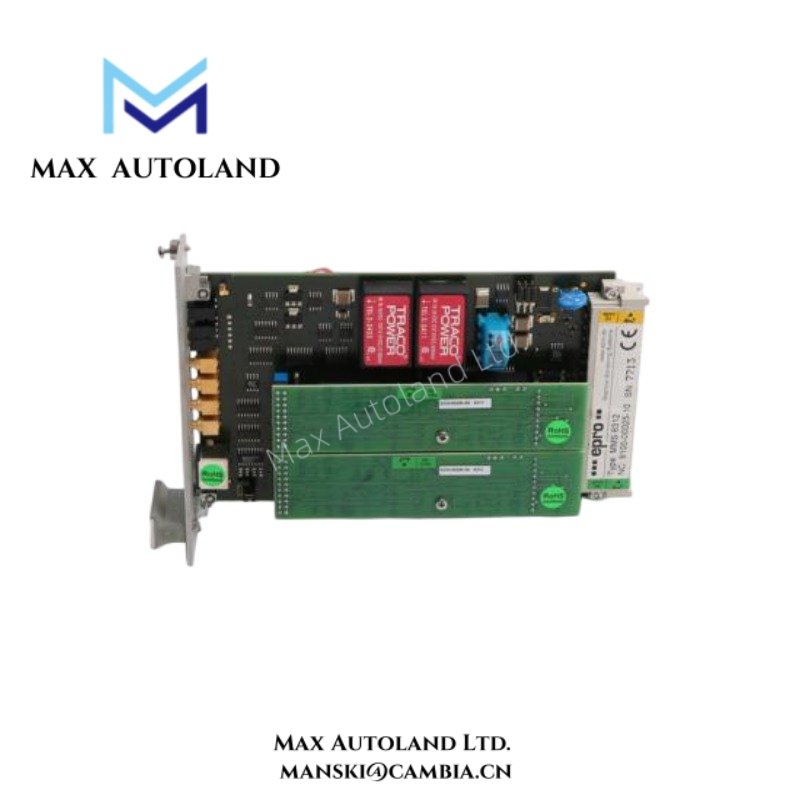

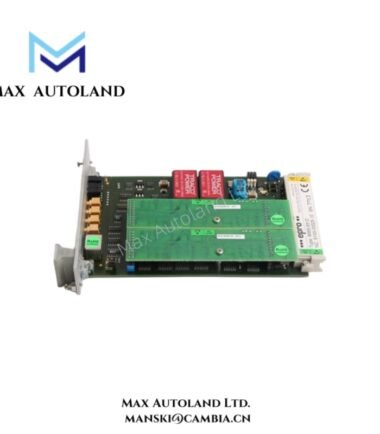

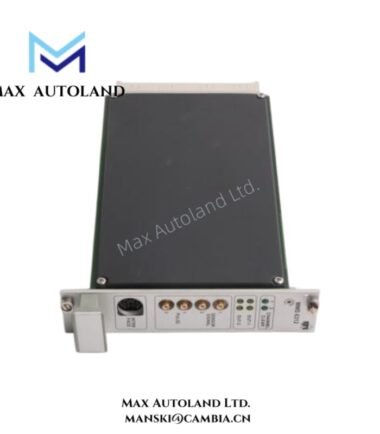

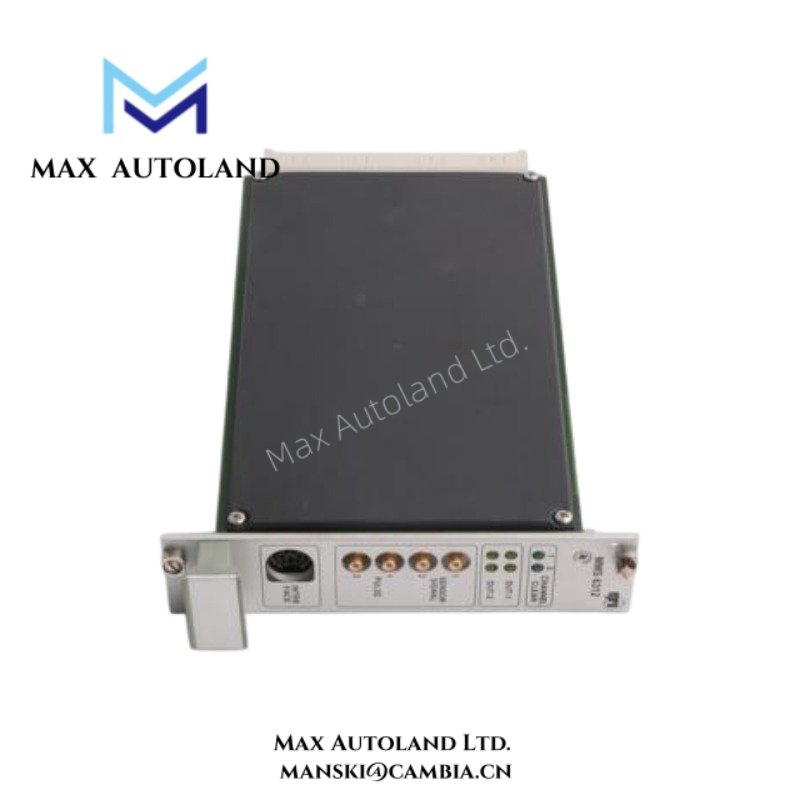

MMS6312 from Emerson Epro provides accurate dual channel rotational speed monitoring for critical turbomachinery applications.
Moreover, MMS6312 processes pulse signals from speed sensors, ensuring stable and real-time rotational speed evaluation.
Engineers rely on MMS6312 in turbines, compressors, and pumps where speed control directly impacts safety and efficiency.
Additionally, the module integrates advanced signal conditioning, which improves measurement accuracy under fluctuating operating conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | MMS6312 |
| Manufacturer | Emerson Epro |
| Product Type | Dual Channel Rotational Speed Monitor |
| Series | Epro Machinery Protection System |
| Number of Channels | 2 independent channels |
| Input Signal Type | Pulse, frequency, and TTL signals |
| Supported Sensors | Speed probes, proximity probes, magnetic pickups |
| Input Frequency Range | 0.5 Hz to 20 kHz |
| Minimum Input Voltage | ≥2 V peak-to-peak |
| Input Impedance | ≥50 kΩ |
| Signal Conditioning | Integrated filtering and amplification |
| Measurement Range | 0 to 120,000 RPM (sensor dependent) |
| Accuracy | ±0.1% of measured value |
| Resolution | High-resolution digital processing |
| Output Signal Type | Analog output (0–10 V or 4–20 mA) |
| Relay Outputs | Configurable alarm and trip relays |
| Response Time | <5 ms |
| Power Supply Voltage | 24 V DC |
| Power Consumption | Approx. 6–10 W |
| Electrical Connection | Terminal block or backplane connector |
| Mounting Type | Rack-mounted module |
| Housing Material | Industrial-grade enclosure |
| Dimensions | Approx. 100 × 160 × 120 mm |
| Weight | Approx. 1.0 kg |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Class | IP20 |
| EMC Compliance | Industrial EMC standards compliant |
| Cable Length Support | Up to 300 meters depending on sensor |
| Channel Isolation | Electrical isolation between channels |
| Diagnostic Functions | Sensor fault detection and signal monitoring |
| Warm-up Time | <5 minutes |
FAQ
Q1: Is the product new and original?
A1: Yes, all MMS6312 modules are brand new and 100% original from Emerson Epro.
Q2: Do you have stock available?
A2: Yes, we have stock for MMS6312, and availability depends on current inventory levels.
Q3: How fast can you ship the product?
A3: We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which logistics services do you use?
A4: We commonly use DHL and other international carriers for fast and secure delivery.
Q5: What input signals does MMS6312 support?
A5: The MMS6312 supports pulse, frequency, and TTL signals from speed sensors and proximity probes.
Q6: What is the maximum measurable speed?
A6: The MMS6312 measures up to 120,000 RPM depending on sensor configuration and installation conditions.
