Overview

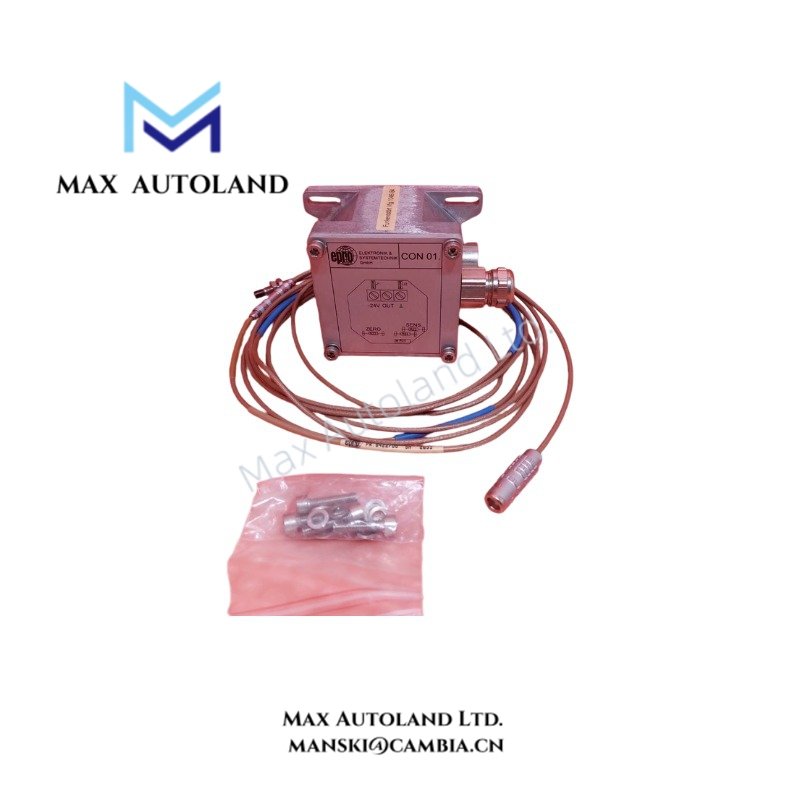

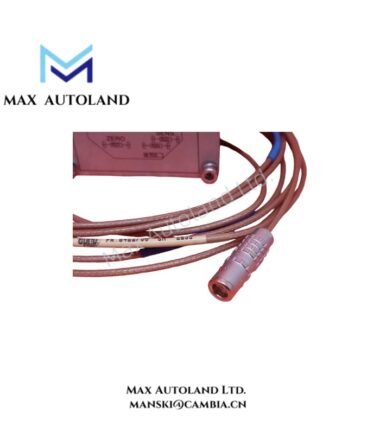

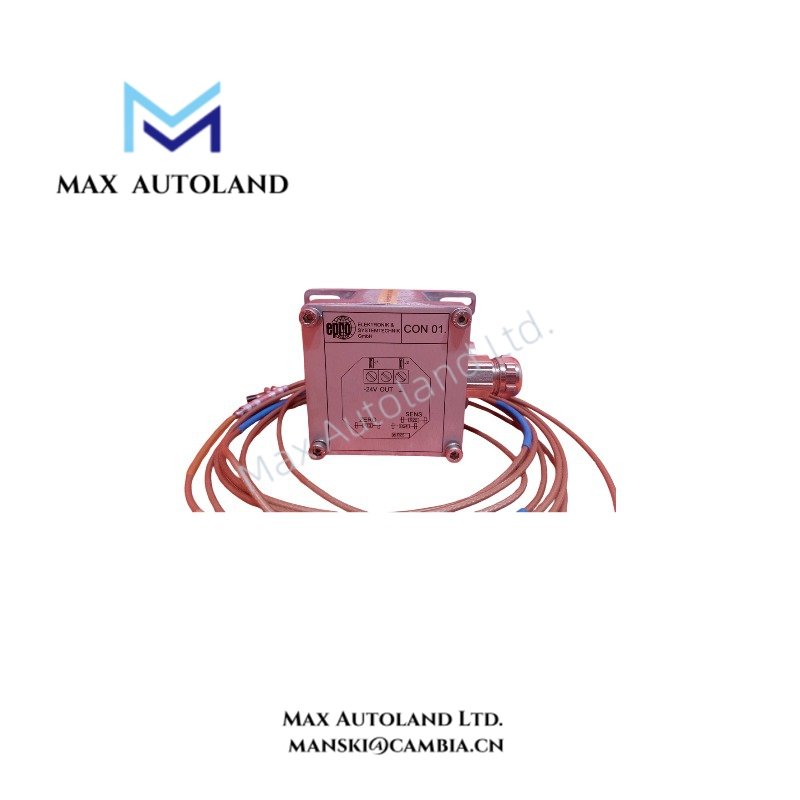

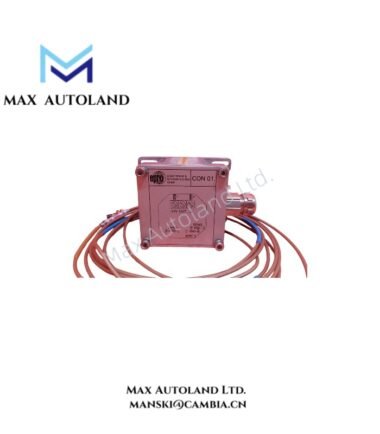

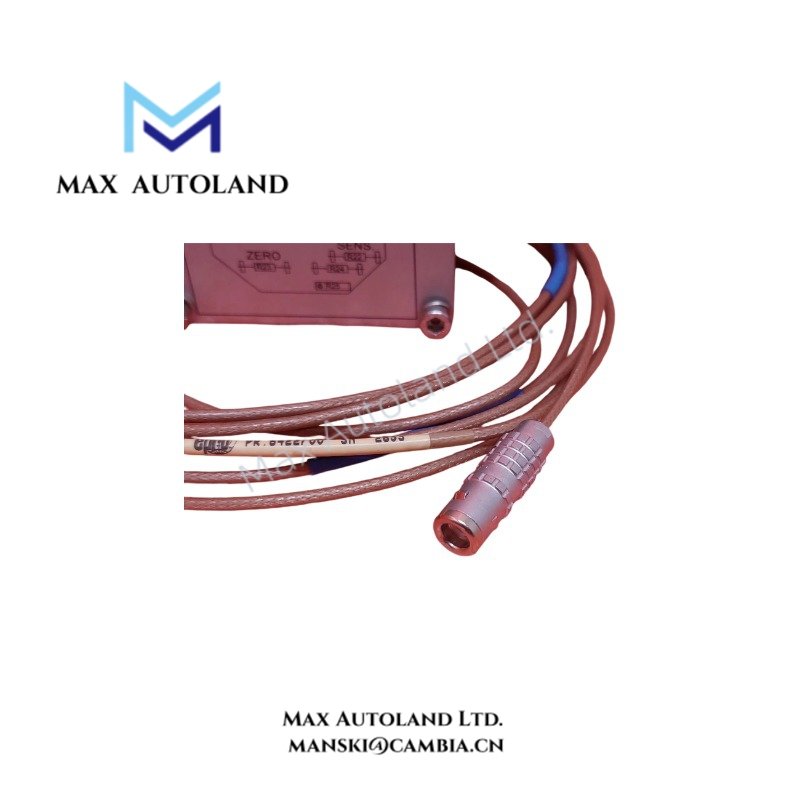

The Emerson EPRO CON01, also cataloged as the CON01 signal converter, is described as an interface for processing eddy-current proximity probe signals in machinery monitoring applications. The supplied information lists DC power input, Ethernet, RS485, and USB interfaces. However, these specifications have not been independently verified against an official manufacturer datasheet.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CON01 |
| Brand | Emerson EPRO |
| Product Type | Eddy Current Signal Converter |
| Weight | Approx. 0.1 kg (supplied data; unverified) |
| Dimensions | Approx. 100 x 50 x 20 mm (supplied data; unverified) |
| Operating Temp | -40 to +85 deg C (supplied data; unverified) |
| Power Consumption | Not specified |
| Input Voltage | 24 VDC (supplied data; unverified) |
| Input Compatibility | Eddy-current proximity probes (claimed; verification required) |
| Communication Interfaces | Ethernet, RS485, USB (claimed; verification required) |
| Signal Resolution | 16-bit (supplied data; unverified) |
| Sampling Rate | 1 kHz (supplied data; unverified) |
| Core Function | Proximity probe signal conversion (description supplied; verification required) |
Machinery Monitoring and Signal Interface
Eddy-current monitoring systems evaluate probe signals to determine shaft position and vibration characteristics. Correct signal interpretation depends on probe compatibility, sensor calibration, target material, and the connected monitoring hardware.
Before integrating the CON01 into a machinery protection system, verify its input signal range, output signal format, calibration requirements, and electrical interface specifications against the manufacturer’s documentation. The supplied data does not establish compatibility with a particular AMS or EPRO monitoring platform.
Frequently Asked Questions
Q: Which proximity probes are compatible with the CON01?
A: The supplied description identifies eddy-current proximity probes but does not specify supported probe models, sensitivity, linear range, or input signal limits. Confirm these parameters before connection.
Q: Does the CON01 provide Ethernet, RS485, and USB communication?
A: These interfaces appear in the supplied specifications, but their presence and supported protocols require confirmation from the official datasheet.
Q: Can the CON01 be used for shaft vibration and axial displacement monitoring?
A: Such applications require a compatible probe, a defined signal conversion characteristic, and an appropriate monitoring system. The CON01’s specific measurement capabilities remain unverified.
Field Installation Guidelines
- Verify the exact model designation and terminal assignments before installation.
- Confirm the supply voltage, polarity, grounding requirements, and input electrical limits using manufacturer documentation.
- Route probe signal cables separately from power and high-current switching cables to reduce electromagnetic interference.
- Apply cable shielding and grounding according to the equipment manufacturer’s instructions.
- Check probe calibration, target material compatibility, and signal scaling before commissioning.
- Do not connect Ethernet, RS485, or USB interfaces until their electrical characteristics and supported protocols have been confirmed.
- Record baseline measurements and verify the output signal against the connected monitoring system before enabling machinery protection functions.
